<span style="font-size: 12pt;">★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.</span> <br /><span style="font-size: 12pt;">★ Transmission parts-Worm & Worm Gear, It transmits through the gear and is usually used in Reducer.</span> <br /><span style="font-size: 12pt;">★ Material-Brass Alloy</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as AXG6-80CS-3NR-ND.</strong></span></span></p>">
★This product pic. shows as AXG6-80CS-3NR-ND.
Update:2022.08.03

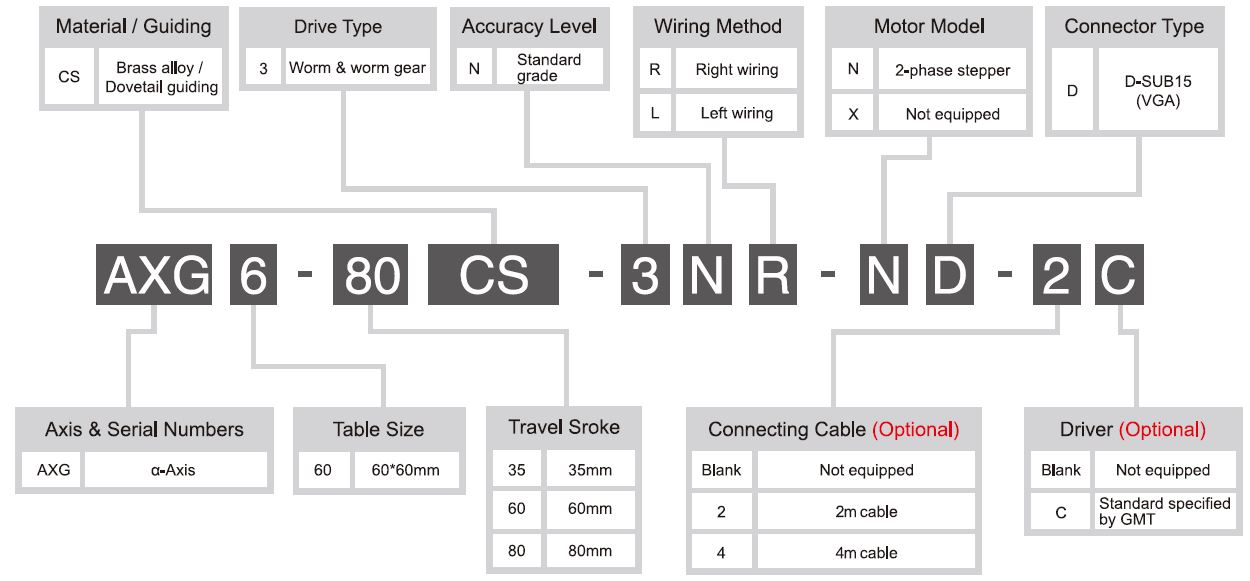

Model No. | AXG6-35CS-3NR-ND | AXG6-35CS-3NL-ND | AXG6-60CS-3NR-ND | AXG6-60CS-3NL-ND | AXG6-80CS-3NR-ND | AXG6-80CS-3NL-ND | ||
Mechanical Spec. | Table Size (mm) | 60 X 60 | ||||||
Travel Stroke (°) | ± 12 | ± 10 | ± 7 | |||||
Drive Type | Warm & Warm gear (Ratio 1 / 188) | Warm & Warm gear (Ratio 1 / 276) | Warm & Warm gear (Ratio 1 / 356) | |||||
Rail | Dovetail Slide | |||||||
Stage Material / Surface Treatment | Brass Alloy / Black fluororesin | |||||||
Main Unit Weight (Kg) | 0.8 | |||||||
Coupling | FAMML16-4*5 | |||||||
Accuracy Level | N:Standard grade | |||||||
Wiring Method | R:Right wiring | L:Left wiring | R:Right wiring | L:Left wiring | R:Right wiring | L:Left wiring | ||
Precision Spec. | Resolution (Pulse) (°) | ≒ 0.0095 (Full) ≒ 0.0047 (Half) | ≒ 0.0065 (Full) ≒ 0.0032 (Half) | ≒ 0.005 (Full) ≒ 0.0025 (Half) | ||||
Max. Speed (Full Step) (° / sec) | 15 | 7.5 | 7 | |||||
Positioning Presion (°) | 0.2 | |||||||
Repeatability Precision (°) | ± 0.05 | |||||||
Load Capacity (Kgf) | 6 | |||||||
Missed Step (°) | 0.1 | |||||||
Parallelism (µm) | 50 | |||||||
Dynamic Straightness (mm) | ± 0.4 | |||||||
Dynamic Parallelism (mm) | 0.02 | |||||||
Electrical Spec. | Motor | Type / Shaft Numbers | 2-phase stepper / ☐ 35 double shafts | |||||
Brand / Model | GMT / 2MS-N35D36A | |||||||
Driver Brand / Model | GMT / GTR22G-D (Additional options) | |||||||
Connector | Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||||||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | |||||||
Sensor | Origin Sensor | Photoelectric sensor GMT-sensor | ||||||
Limit Sensor | ||||||||
Origin Approximation Sensor | N / A | |||||||
Power Voltage | 24V ± 10% | |||||||
Control Output | NPN open collector output under 24V 8mA | |||||||
Output Control | Testing (sensing):output transistor OFF (closed) |
System Configuration Diagram |
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver. ♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs. |
Axis Definition |
GMT has defined different axis as the following figuration according to the movement direction: Horizontal movement direction is X and Y axis. Vertical movement direction is Z axis. Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis. Green arrows present the specified axis movement direction. |
Motor・driver Reference Table |
|
