    CXC80 - Standard


    ★ Guide- Circular linear ball guiding, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.
    ★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
    ★ Material-Carbon Steel

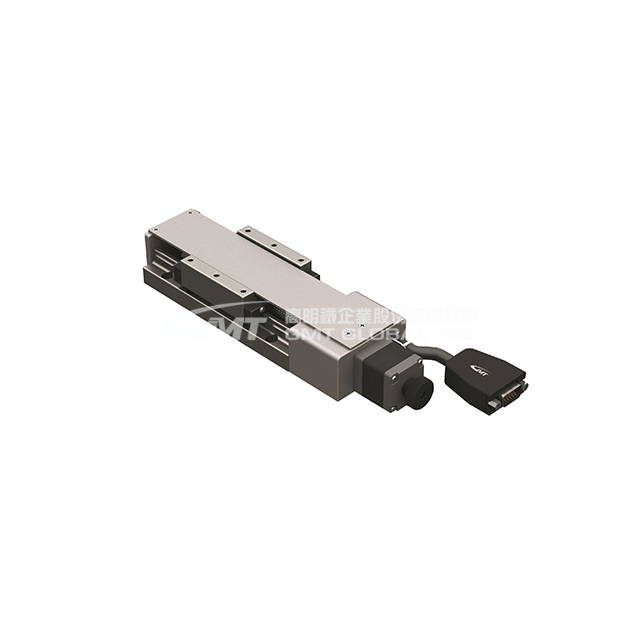

    This product pic. shows as CXC60100-S2NN-ND which is only for reference, please base on below specification for further information.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.09.28

    Model No.

    CXC8030-F2NN-ND-P1

    CXC8030-F2NN-ND-P2

    CXC8050-F2NN-ND-P1

    CXC8050-F2NN-ND-P2

    CXC8075-F2NN-ND-P1

    CXC8075-F2NN-ND-P2

    Table Size (mm)

    80x80

    80x80

    80x8080x8080x8080x80

    Travel Stroke (mm)

    30

    30

    50

    50

    75

    75

    Drive Type

    Ball Screw Ø8,Lead 1mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 1mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 1mm

    Ball Screw Ø8,Lead 2mm

    Rail

    Circular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball Guiding

    Stage Material

    Carbon SteelCarbon SteelCarbon SteelCarbon SteelCarbon SteelCarbon Steel

    Surface Treatment

    Nickel PlatingNickel PlatingNickel PlatingNickel PlatingNickel PlatingNickel Plating

    Main Unit Weight (Kg)

    1.791.791.861.862.032.03

    Coupling

    FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5

    Accuracy Level

    StandardStandardStandardStandardStandardStandard

    Wiring Method

    GMT StandardGMT StandardGMT StandardGMT StandardGMT StandardGMT Standard

    Resolution (Pulse) (µm)

    5 (Full) / 2.5 (Half)10 (Full) /5 (Half)5 (Full) / 2.5 (Half)10 (Full) /5 (Half)5 (Full) / 2.5 (Half)10 (Full) /5 (Half)

    Max. Speed (Full Step) (mm / sec)

    204020402040

    Positioning Presion (µm)

    151515151515

    Repeatability Precision (µm)

    ±1±1±1±1±1±1

    Multi-point Repeatability Precision(µm)

    N/AN/AN/AN/AN/AN/A

    Load Capacity (Kgf)

    161616161616

    Missed Step (µm)

    333333

    Moment Stiffness

    N/AN/AN/AN/AN/AN/A

    Pitch / Yaw

    N/AN/AN/AN/AN/AN/A

    Parallelism (µm)

    202020202020

    Dynamic Straightness (µm)

    3

    3

    3

    3

    3

    3

    Dynamic Parallelism (µm)

    10

    10

    10

    10

    10

    10

    Motor Type

    2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper

    Motor Shaft Numbers

    ☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts

    Motor Brand

    GMT

    GMT

    GMT

    GMT

    GMT

    GMT

    Motor Model

    2MS-N28D32A

    2MS-N28D32A

    2MS-N28D32A

    2MS-N28D32A

    2MS-N28D32A

    2MS-N28D32A

    Driver Brand

    GMT

    GMT

    GMT

    GMT

    GMT

    GMT

    Driver Model

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    Stage Side Connector

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    Controller Side Connetor

    15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)

    Origin Sensor

    Photoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensor

    Limit Sensor

    Photoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensor

    Power Voltage

    24V ± 10%24V ± 10%24V ± 10%24V ± 10%24V ± 10%24V ± 10%

    Control Output

    NPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mA

    Output Control

    Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)



    Model No.

    CXC80100-F2NN-ND-P1

    CXC80100-F2NN-ND-P2

    CXC80150-F2NN-ND-P2

    CXC80200-F2NN-ND-P2

    CXC80250-F2NN-ND-P2

    CXC80300-F2NN-ND-P2

    Table Size (mm)

    80x80

    80x8080x8080x8080x8080x80

    Travel Stroke (mm)

    100

    100

    150

    200

    250

    300

    Drive Type

    Ball Screw Ø8,Lead 1mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 2mm

    Ball Screw Ø8,Lead 2mm

    Rail

    Circular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball GuidingCircular Linear Ball Guiding

    Stage Material

    Carbon SteelCarbon SteelCarbon SteelCarbon SteelCarbon SteelCarbon Steel

    Surface Treatment

    Nickel PlatingNickel PlatingNickel PlatingNickel PlatingNickel PlatingNickel Plating

    Main Unit Weight (Kg)

    2.22.22.52.783.083.38

    Coupling

    FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5FAMCS11.6-5*5

    Accuracy Level

    StandardStandardStandardStandardStandardStandard

    Wiring Method

    GMT StandardGMT StandardGMT StandardGMT StandardGMT StandardGMT Standard

    Resolution (Pulse) (µm)

    5 (Full) / 2.5 (Half)10 (Full) /5 (Half)10 (Full) /5 (Half)10 (Full) /5 (Half)10 (Full) /5 (Half)10 (Full) /5 (Half)

    Max. Speed (Full Step) (mm / sec)

    204040404040

    Positioning Presion (µm)

    151520203030

    Repeatability Precision (µm)

    ±1±1±1±1±1±1

    Multi-point Repeatability Precision(µm)

    N/AN/AN/AN/AN/AN/A

    Load Capacity (Kgf)

    161616161616

    Missed Step (µm)

    333333

    Moment Stiffness

    N/AN/AN/AN/AN/AN/A

    Pitch / Yaw

    N/AN/AN/AN/AN/AN/A

    Parallelism (µm)

    202020202020

    Dynamic Straightness (µm)

    335588

    Dynamic Parallelism (µm)

    10

    10

    15

    20

    20

    30

    Motor Type

    2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper2-Phase Stepper

    Motor Shaft Numbers

    ☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts☐ 28 Double Shafts

    Motor Brand

    GMT

    GMT

    GMT

    GMT

    GMT

    GMT

    Motor Model

    2MS-N28D45A

    2MS-N28D45A

    2MS-N28D45A

    2MS-N28D45A

    2MS-N28D45A

    2MS-N28D45A

    Driver Brand

    GMT

    GMT

    GMT

    GMT

    GMT

    GMT

    Driver Model

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    GTR22G-D

    Stage Side Connector

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    Controller Side Connetor

    15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)

    Origin Sensor

    Photoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensor

    Limit Sensor

    Photoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensorPhotoelectric sensor GMT-sensor

    Power Voltage

    24V ± 10%24V ± 10%24V ± 10%24V ± 10%24V ± 10%24V ± 10%

    Control Output

    NPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mANPN open collector output under 24V 8mA

    Output Control

    Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)Testing (sensing):output transistor OFF (closed)



    System Configuration Diagram

    ♦   For selection of the drivers preferred, please refer to the reference table or the catalogue of MotorDriver.

    ♦  All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.



    Axis Definition

    GMT has defined different axis as the following figuration according to the movement direction:

    Horizontal movement direction is X and Y axis.

    Vertical movement direction is Z axis.

    Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.

    Green arrows present the specified axis movement direction.



    Motordriver Reference Table
