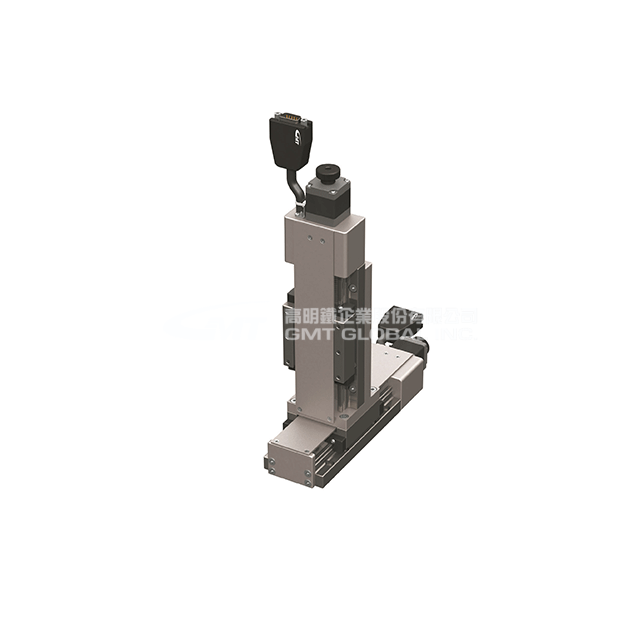

★This product pic. shows as CXZC60-S2PN-CD.
Table Size (mm)
80 X 80
Travel Stroke (mm)
Ball screw Ø8
lead 1 mm
lead 2 mm
Circular Linear Ball Guiding
Stage Material / Surface Treatment
S：Stainless Steel / Nickel PlatingF：Carbon Steel / Nickel Plating
Main Unit Weight (Kg)
Resolution (Pulse) (µm)
Max. Speed (Full Step) (mm / sec)
Positioning Presion (µm)
Repeatability Precision (µm)
Load Capacity (Kgf)
Missed Step (µm)
Dynamic Straightness (µm)
Dynamic Parallelism (µm)
Type / Shaft Numbers
X-Axis：☐ 28 double shafts；Z-Axis：☐ 42 double shafts
Brand / Model
SANYO / X-Axis：SH5281-7211；Z-Axis：103F5510-8211
Driver Brand / Model
Please refer to reference table
Stage Side Connector
15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS
Controller Side Connector
15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)
Photoelectric sensor GMT-sensor
Origin Approximation Sensor
N / A
24V ± 10%
NPN open collector output under 24V 8mA
Testing (sensing)：output transistor OFF (closed)
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
