CZLS50 - Precision

★ Guide-Linear ball, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.
★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
★ Material-Stainless Steel, Carbon Steel

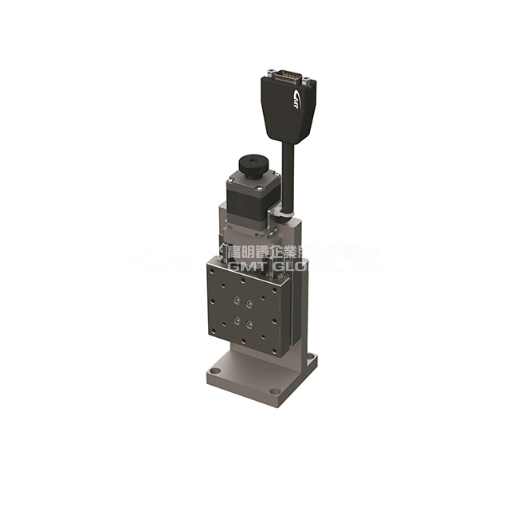

★This product pic. shows as CZLS60-S2PN-CD.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.10.02

Model No.			CZLS5020-S2PN-CD CZLS5020-F2PN-CD	CZLS5030-S2PN-CD CZLS5030-F2PN-CD
Mechanical Spec.	Table Size (mm)		50 X 50
	Travel Stroke (mm)		20	30
	Drive Type		Ball screw Ø8, lead 1mm
	Rail		Linear Ball Guiding
	Stage Material / Surface Treatment		S：Stainless Steel / Nickel Plating F：Carbon Steel / Nickel Plating
	Main Unit Weight (Kg)		0.64	0.79
	Coupling		FAMCS11.6-5*5
	Accuracy Level		P：Precision grade
	Wiring Method		N：GMT Standard
Precision Spec.	Resolution (Pulse) (µm)		2 (Full) / 1 (Half)
	Max. Speed (Full Step) (mm / sec)		20
	Positioning Presion (µm)		5
	Repeatability Precision (µm)		± 0.5
	Load Capacity (Kgf)		4
	Missed Step (µm)		1
	Parallelism (µm)		20
	Dynamic Straightness (µm)		2
	Dynamic Parallelism (µm)		10
Electrical Spec.	Motor	Type / Shaft Numbers	5-phase stepper / ☐ 42 double shafts
		Brand / Model	SANYO / 103F5510-8211
	Driver Brand / Model		Please refer to reference table
	Connector	Stage Side Connector	15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS
		Controller Side Connector	15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)
	Sensor	Origin Sensor	Photoelectric sensor GMT-sensor
		Limit Sensor
		Origin Approximation Sensor	N / A
		Power Voltage	24V ± 10%
		Control Output	NPN open collector output under 24V 8mA
		Output Control	Testing (sensing)：output transistor OFF (closed)

System Configuration Diagram

♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.

♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.

Axis Definition

GMT has defined different axis as the following figuration according to the movement direction:

Horizontal movement direction is X and Y axis.

Vertical movement direction is Z axis.

Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.

Green arrows present the specified axis movement direction.

CZLS50 - Precision
