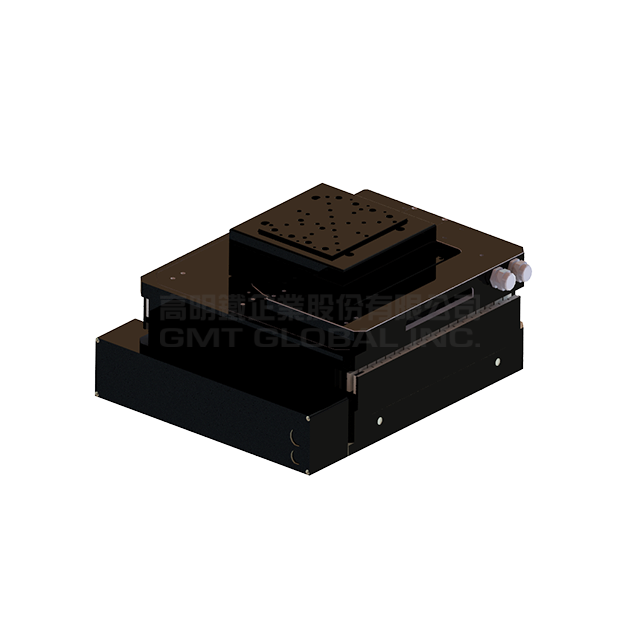

XYZT Four-Axis Module

• An exclusive design solution of semiconductor wafer processing and inspection.
• Utilize a direct-drive motor as the primary power and optimize the stable movement in cross-roller guide with high rigidity.
• Our axis module can achieve the nanometer-level tolerance and ensure the high-speed performance.
• Modular design enables the flexible, adaptable, and various configurations based on customer requirements.
• Our axis module provides high precision motion control solutions which is widely applied in optical communication, semiconductor testing, visual inspection, and micro engineering fields.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Model	GNTXYZT-200-200-5-30-0000			GNTXYZT-300-300-10-360-0000
Axis	XY	Z	T	XY	Z	T
Payload	5 Kg			8 kg
Stroke	200 x 200 mm	5 mm	± 15°	300 x 300 mm	10 mm	360°
Accuracy	± 0.35 µm	± 0.25 µm	± 2.5 arc-sec	± 0.55 µm	± 0.35 µm	± 2.5 arc-sec
Repeatability	± 0.2 µm	± 0.15 µm	± 1.5 arc-sec	± 0.2 µm	± 0.2 µm	± 1.5 arc-sec
Horizontal Straightness	± 1.5 µm	± 1 µm	--	± 2.5 µm	± 2.5 µm	--
Vertical Straightness	± 1.5 µm	± 1.5 µm	--	± 2.5 µm	--	--
Orthogonality	15 arc-sec	--	--	15 arc-sec	--	--
Continue Fore/Torgue	48.8 N	24.4 N	3 N	163.6 N	23 N	10 N
Peak Force/Torque	340 N	170 N	10 N	1013.2 N	170 N	30 N
Max Velocity	800 mm/s	75 mm/s	400 rpm	800 mm/s	5 mm/s	400 rpm
Max Acceleration	1 g	0.7 g	450 rad/s^2	1.5 g	0.7 g	450 rad/s^2
Current	4.4 Arms	2.2 Arms	2.3 Arms	6.24 Arms	2.2 Arms	3 Arms
Peak Current	30.7 Arms	15.351 Arms	6.5 Arms	38.6 Arms	15.351 Arms	18 Arms
Resistance	2.6 ohm	5.2 ohm	4.4 ohm	2.4 ohm	5.2 ohm	5 ohm
Inductor	0.35 H	0.7 mH	5.8 mH	0.665 H	0.7 mH	10.5 mH
Modules Weight	35 Kg			83 Kg
Encoder Type	incremental, analog	incremental, analog	incremental, analog	incremental, analog	incremental, analog	incremental, analog
