    Stepper motor direct drive ball screws-06

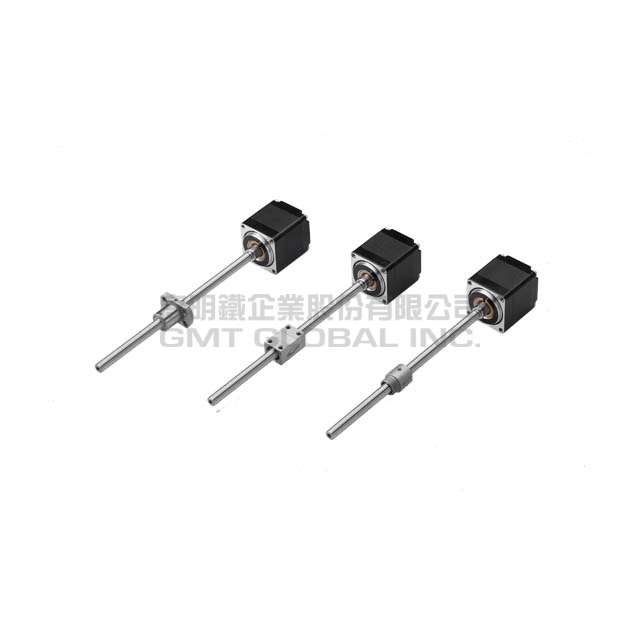

    Stepper motor direct drive ball screws
    Type of nut - Threaded(M), Flanged(F), Rectangular(H)
    Precision Grade-Rolled Grade-C5 & C7
    Lead - 0601, 0602
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Updata:2022.12.01

    Rolled

    Nominal Diameter (mm)

    6

    Ball Diameter (mm)

    0.8

    0601 Lead (mm)

    1

    0602 Lead (mm)

    2

    B.C.D. (mm)

    6.2

    Thread Direction

    Right Hand

    Circuits

    1 Return x 3 Circuits

    Accuracy

     C5X /  C5Y /   C7Y  /C7Z

    Axial Backlash

    0 /  < 0.005 / < 0.005 / < 0.01

    Dynamic Load Ca (N)

    550

    Static load Coa (N)

    930



    Model No.

    Stroke

    Shaft LengthCumulative Deviation ToleranceNut Parallelism ToleranceFlanged Nut
    Verticality
    Nut
    Deviation
    Tolerance
    Lead Accuracy
    L1LS1N1N2Mean TravelVariation
    MS2P28Z-0601(0602)KS-RC5□-65R105-F40651050.035N/A0.010.0120.0180.018
    MS2P28Z-0601(0602)KS-RC5□-65R105-MN/A
    MS2P28Z-0601(0602)KS-RC5□-65R105-H0.01N/A
    MS2P28Z-0601(0602)KS-RC7□-65R105-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P28Z-0601(0602)KS-RC7□-65R105-MN/A
    MS2P28Z-0601(0602)KS-RC7□-65R105-H0.017N/A
    MS2P28Z-0601(0602)KS-RC5□-95R135-F70951350.035N/A0.010.0120.0180.018
    MS2P28Z-0601(0602)KS-RC5□-95R135-MN/A
    MS2P28Z-0601(0602)KS-RC5□-95R135-H0.01N/A
    MS2P28Z-0601(0602)KS-RC7□-95R135-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P28Z-0601(0602)KS-RC7□-95R135-MN/A
    MS2P28Z-0601(0602)KS-RC7□-95R135-H0.017N/A
    MS2P28Z-0601(0602)KS-RC5□-125R165-F1001251650.035N/A0.010.0120.020.018
    MS2P28Z-0601(0602)KS-RC5□-125R165-MN/A
    MS2P28Z-0601(0602)KS-RC5□-125R165-H0.01N/A
    MS2P28Z-0601(0602)KS-RC7□-125R165-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P28Z-0601(0602)KS-RC7□-125R165-MN/A
    MS2P28Z-0601(0602)KS-RC7□-125R165-H0.017N/A





    Motor Spec.

    Number of phases

    2

    Step angle

    1.8˚±5%(Synchronizing, idling)

    Rated voltage(V)

    3.8

    Current / phase(A)

    0.67

    Resistance / phase(Ω)

    5.6±10%

    Inductance / phase(mH)

    3.4±15%

    Moment of inertia(kg∙m2)

    9X10-7

    Holding torque(g∙cm)

    600
