    Dust-proof Actuator GK☐C2650


    ★Gothic arc groove of linear ball guiding formed strong structure.
    ★Ball screw transmission has the characteristics of high and easy changeable transmission.
    ★Based on accuracy requirement, divided into standard type (N) and precision type (P).
    ★Dust-proof design, effectively prevent intrusion of foreign matter and dust.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.11.23

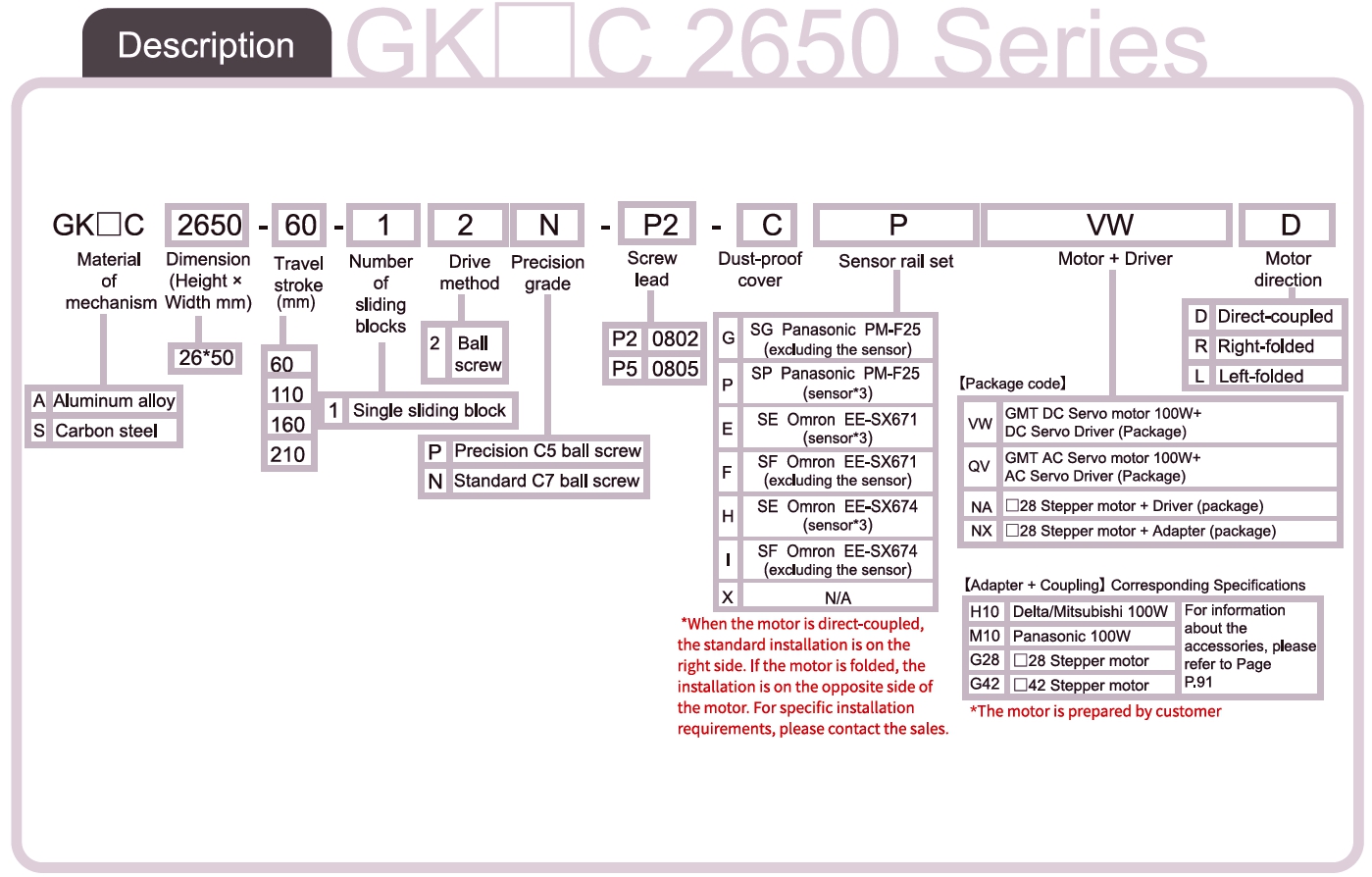

    Model No.

    GKAC2650-N

    GKSC2650-N

    GKAC2650-P

    GKSC2650-P

    Mechanical Spec.

    Size (H x W) (mm)

    26 X 50

    Travel Stroke (mm)

    60、110、160、210

    60、110、160、210

    Drive Type

    Ball Screw Ø8

    Lead (mm)

    2

    5

    2

    5

    Rail

    Recirculating Linear Ball Guiding

    Stage Material

    Aluminum Alloy

    Carbon Steel

    Aluminum Alloy

    Carbon Steel

    Accuracy Level

    Standard

    Standard

    Precision

    Precision

    Precision Spec. *2

    Stepper Max. Speed (mm / sec) *1

    40

    100

    40

    100

    Servo Max. Speed (mm / sec) *1

    100

    250

    100

    250

    Positioning Precision (mm)

    -

    0.02

    Repeatability Precision (mm)

    ± 0.005

    ± 0.003

    Movement Paralleism (mm)

    0.025

    0.01

    Max. Torque (N・cm)

    1.5

    4

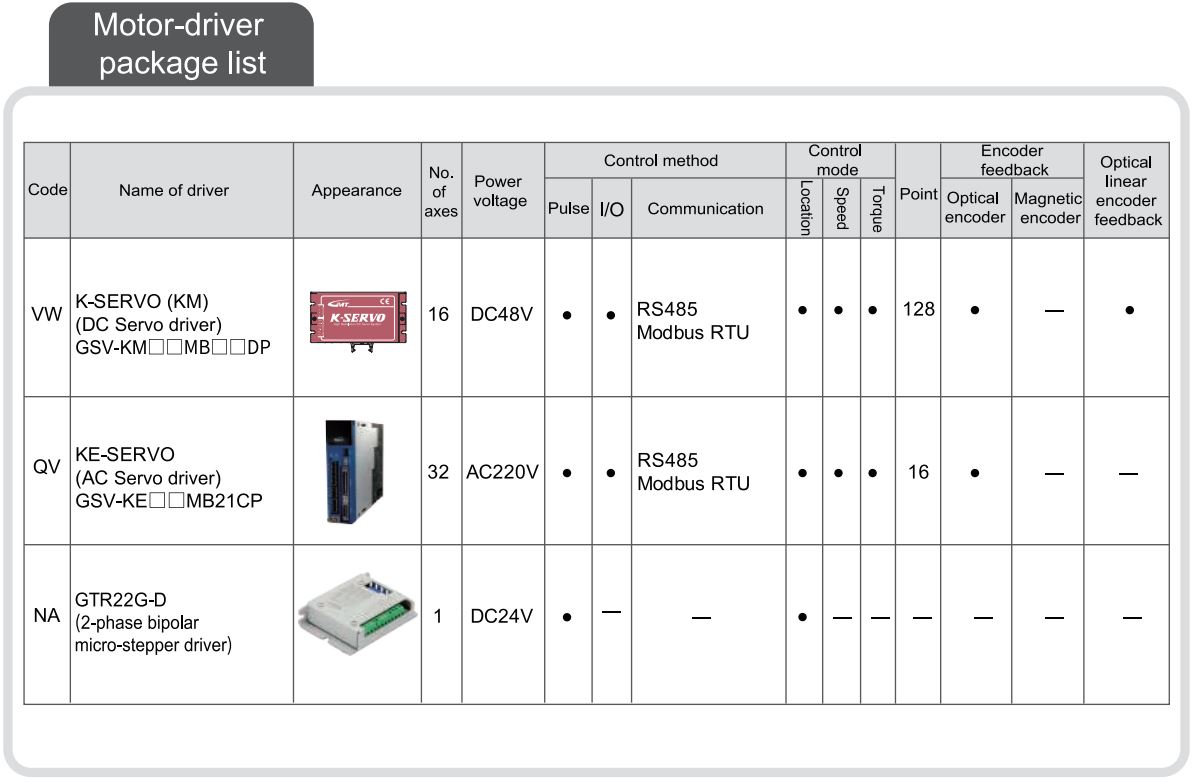

    Stepper Electrical Spec.

    Open-loop Driver

    ☐28,GTR22G-D

    Close-loop Driver

    -

    Stage Side Connector

    15-Pin male end connetor D-SUB

    Controller Side Connector

    15-Pin female end connetor D-SUB

    DC Servo Electrical Spec.



    DC Servo Motor

    100W:GSVM-D01MD4

    DC Servo Driver

    100W:K-SERVO (GSV-KM01MR-48DP)

    Stage Side Connector

    Manufacturer:TE Connectivity

    Power cord:172159-1+170355-1 (Male end)

    Encoder cable:172161-1+170365-1 (Male end)

    Controller Side Connector

    Manufacturer:KST

    Power cord:E1510-RED (European Terminals)

    Manufacturer:JST

    Encoder cable:PHDR-12VS+SPHD-001T-P0.5 (Female end)

    AC Servo Electrical Spec.

    AC Servo Motor

    100W:GSVM-A01LC4

    AC Servo Driver

    100W:GSV-KE01MB21CP

    Stage Side Connector

    Manufacturer:Tyco electronics

    Power cord:172167-1 (Male end)

    Encoder cable:172171-1 (Male end)

    Controller Side Connector

    Manufacturer:Tyco electronics

    Power cord:172159-1 (Female end)

    Encoder cable:172163-1 (Female end)

    *1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.

    *2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.
