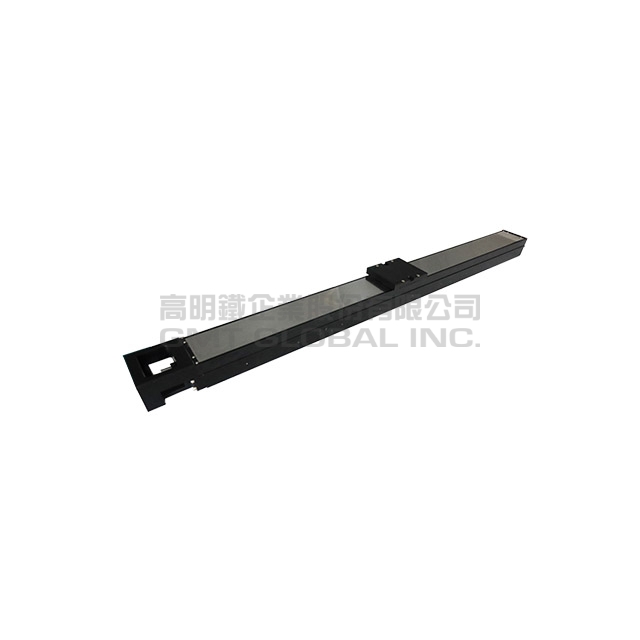

    Dust-proof Actuator GK☐C4580


    ★Gothic arc groove of linear ball guiding formed strong structure.
    ★Ball screw transmission has the characteristics of high and easy changeable transmission.
    ★Based on accuracy requirement, divided into standard type (N) and precision type (P).
    ★Dust-proof design, effectively prevent intrusion of foreign matter and dust.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.11.24

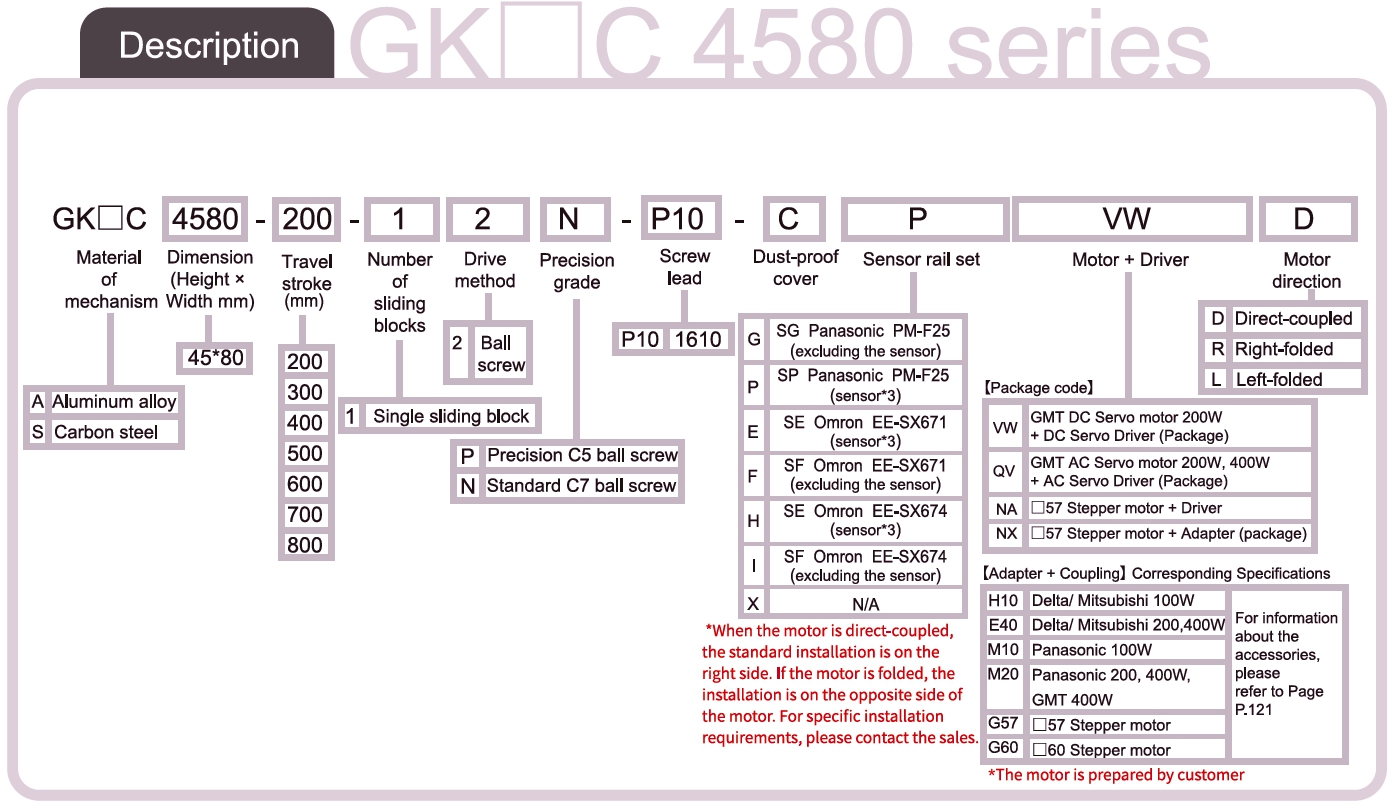

    Model No.

    GKAC4580-N

    GKSC4580-N

    GKAC4580-P

    GKSC4580-P

    Mechanical Spec.

    Size (H x W) (mm)

    45 X 80

    Travel Stroke (mm)

    200、300、400、500、600、700、800

    200、300、400、500、600、700、800

    Drive Type

    Ball Screw Ø16

    Lead (mm)

    10

    10

    10

    10

    Rail

    Recirculating Linear Ball Guide

    Stage Material

    Aluminum Alloy

    Carbon Steel

    Aluminum Alloy

    Carbon Steel

    Accuracy Level

    Standard

    Standard

    Precision

    Precision

    Precision Spec. *2

    Stepper Max. Speed (mm / sec) *1

    200

    Servo Max. Speed (mm / sec) *1

    500

    Positioning Precision (mm)

    -

    Travel Stroke:200、300

    Positioning Precision:0.02

    Travel Stroke:400、500、600

    Positioning Precision:0.04

    Travel Stroke:700、800

    Positioning Precision:0.08

    Repeatability Precision (mm)

    ± 0.005

    ± 0.003

    Movement Paralleism (mm)

    Travel Stroke:200、300、400、500

    Movement Paralleism:0.035

    Travel Stroke:600

    Movement Paralleism:0.04

    Travel Stroke:700、800

    Movement Paralleism:0.05

    Travel Stroke:200、300、400、500

    Movement Paralleism:0.015

    Travel Stroke:600

    Movement Paralleism:0.02

    Travel Stroke:700、800

    Movement Paralleism:0.04

    Max. Torque (N・cm)

    10

    Travel Stroke:200、300、400

    Max. Torque:12

    Travel Stroke:500、600

    Max. Torque:15

    Travel Stroke:700、800

    Max. Torque:-



    Stepper Electrical Spec.

    Open-loop Driver

    ☐42,GTR22G-D

    Close-loop Driver

    -

    Stage Side Connector

    15-Pin male end connetor D-SUB

    Controller Side Connector

    15-Pin female end connetor D-SUB

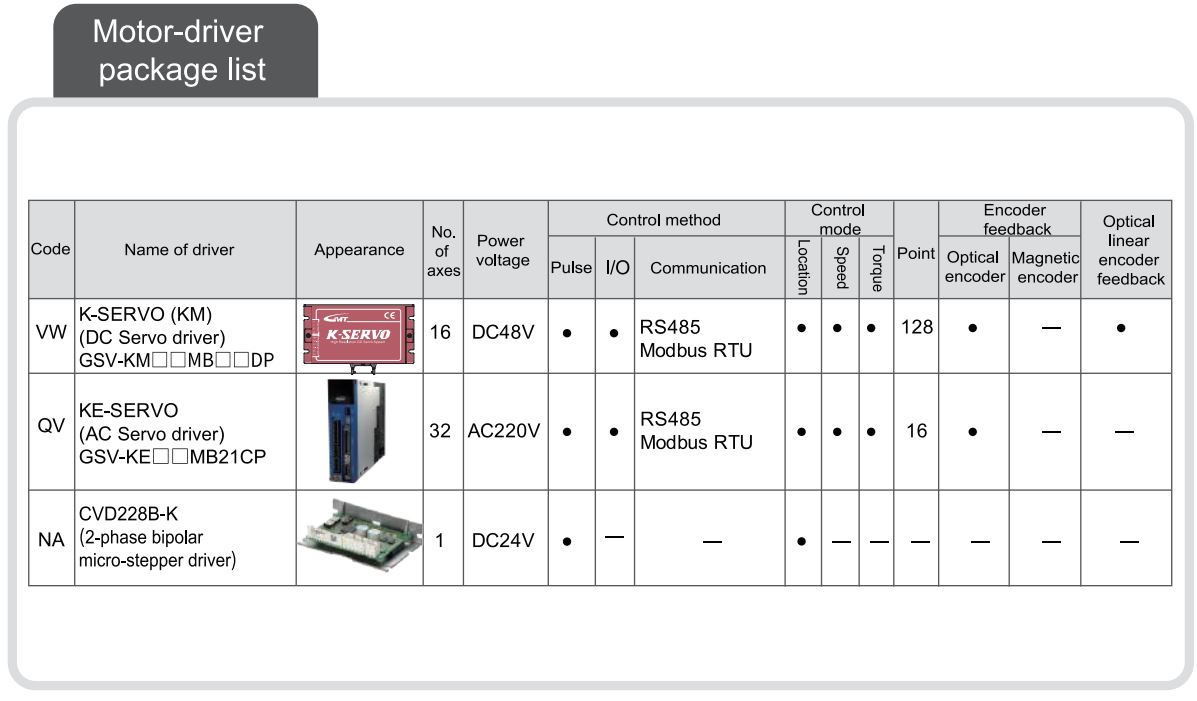

    DC Servo Electrical Spec.



    DC Servo Motor

    200W:GSVM-D02MD4

    DC Servo Driver

    200W:K-SERVO (GSV-KM02MR-48DP)

    Stage Side Connector

    Manufacturer:TE Connectivity

    Power cord:172159-1+170355-1 (Male end)

    Encoder cable:172161-1+170365-1 (Male end)

    Controller Side Connector

    Manufacturer:KST

    Power cord:E1510-RED (European Terminals)

    Manufacturer:JST

    Encoder cable:PHDR-12VS+SPHD-001T-P0.5 (Female end)

    AC Servo Electrical Spec.

    AC Servo Motor

    200W:GSVM-A02LC4

    AC Servo Driver

    200W:GSV-KE02MB21CP

    Stage Side Connector

    Manufacturer:Tyco electronics

    Power cord:172167-1 (Male end)

    Encoder cable:172171-1 (Male end)

    Controller Side Connector

    Manufacturer:Tyco electronics

    Power cord:172159-1 (Female end)

    Encoder cable:172163-1 (Female end)

    *1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.

    *2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.
