Alignment Stage-GAS00 Series

★ Light-weight and Extra-thin-It creates the wing-free thin & lighter mechanism by applying the XYθ module.
★ The cross-roller bearings have been pre-loaded, to perform the whole unit high precision and rigidity.
★ Hollow structure-It can be used for the optical inspection devices or conduction tester.
★ Longer usage life and reliable accuracy of the Alignment stage itself is guaranteed by lubrication.
★ All products are Cryogenic Treatment. It can not only significantly upgrade the toughness and operation lifetime but also improve the dimension stability of materials.
★ 3D CMM- Ensure the quality and precision of the stage.

★ GAS00-200HC：The central support module has directional restrictions. If the platform needs to be hung upside down, it must be informed in advance to avoid abnormalities in the support module.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.06.28

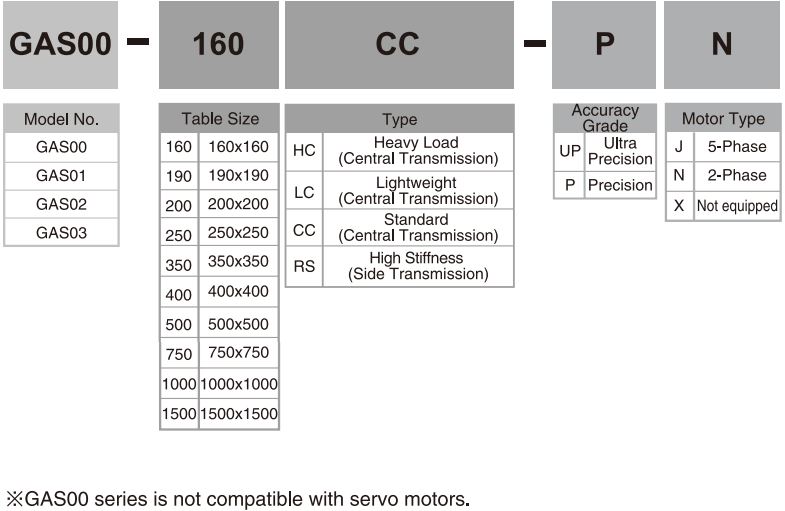

Model No.	GAS00-160LC-PN	GAS00-160LC-UPJ	GAS00-160EC-PN	GAS00-160VC1-PN	GAS00-160VC1-UPJ	GAS00-190EC-PN	GAS00-190EC-UPJ	GAS00-190HC-PN	GAS00-190HC-UPJ	GAS00-200HC-PN	GAS00-200HC-UPJ
Stage Size (mm)	160x160	160x160	160x160	160x160	160x160	190x190	190x190	190x190	190x190	200x200	200x200
Base Size (mm)	170x170	170x170	170x170	170x170	170x170	210x210	210x210	210x210	210x210	210x210	210x210
Height (mm)	50	50	50	55	55	65	65	65	65	60	60
Travel Stroke (mm)	±3x±3	±3x±3	±3x±3	±9x±9	±9x±9	±4x±4	±4x±4	±4x±4	±4x±4	±7x±7	±7x±7
Angle (θ)°	±2°	±2°	±2°	±8.5°	±8.5°	±3°	±3°	±3°	±3°	±3°	±3°
Stage Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Stage Surface Treatment	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished	Black Finished
Base Material	Duralumin	Duralumin	Duralumin	Carbon Steel	Carbon Steel	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin
Base Surface Treatment	Black Anodized	Black Anodized	Black Anodized	Black Oxide	Black Oxide	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized
Ball Screw Spec.	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø6-P1	Ø8-P1	Ø8-P1
Dynamic Load Capacity (kgf)	30	30	30	30	30	30	30	30	30	60	60
Static Load Capacity (kgf)	60	60	60	120	120	60	60	65	65	130	130
Repeatability Accuracy (μm)	±5	±1	±5	±5	±1	±5	±1	±5	±1	±5	±1
Parallelism (μm)	30	30	30	30	30	30	30	30	30	30	30
Motor Brand	GMT	Oriental	GMT	GMT	Oriental	GMT	Oriental	GMT	Oriental	GMT	Oriental
Motor Type	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper
Motor Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□28 Double Shaft	□42 Double Shaft	□42 Double Shaft
Motor Model. No.	2MS- N28D32 A	PKP523 N12B	2MS- N28D32 A	2MS- N28D32 A	PKP523 N12B	2MS- N28D32 A	PKP523 N12B	2MS- N28D32 A	PKP523 N12B	2MS- N42D47 A	PKP544 N18B
Driver Brand	Contact us	Oriental	Contact us	Contact us	Oriental	Contact us	Oriental	Contact us	Oriental	Contact us	Oriental
Driver Model. No.	Contact us	CVD512 -K	Contact us	Contact us	CVD512 -K	Contact us	CVD512 -K	Contact us	CVD512 -K	Contact us	CVD518 -K

Characteristics

♦ Ultra thin appearance

Achieved with the lighted crossed roller bearings and modularized structures.

♦ High stiffness and high precision

Applying preload operations on every roller bearings of stages for better rigidity and precision.

♦ Hollow structure

Lightweight structure of the stages could be suitable for optical inspection devices.

♦ Lubrication system

Well lubricating gives the stages longer using life and reliable accuracy.

♦ Genericity

Available sizes from 160mm to 1500mm, even capable of heightening load resistance by adding driven modules.

Applications

♦ Panel lamination machinery

♦ Panel film laminating machines

♦ Print screen and 3D printing

♦ Angular glass cutting and grinding equipment

♦ Wafe alignment equipment

♦ P.C.D exposure equipment

♦ Software cutting equipment

♦ Semi-conductor equipment

Alignment Stage-GAS00 Series

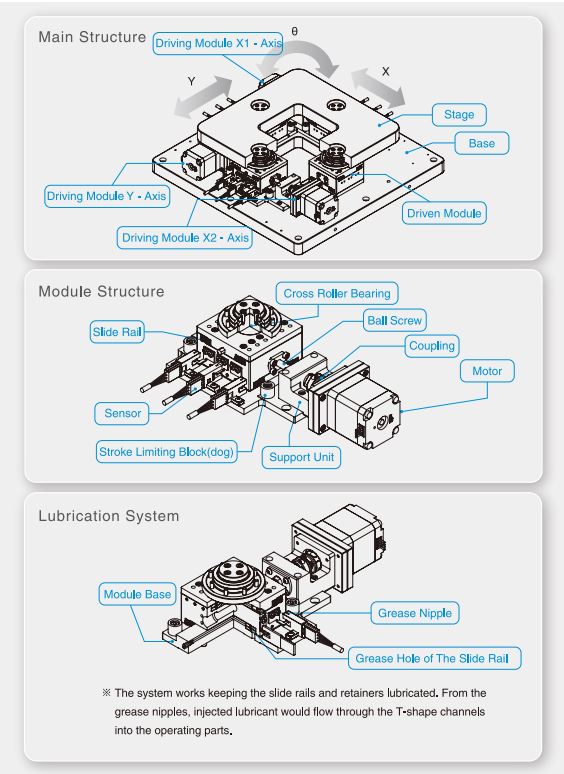

Structures and Lubrication System

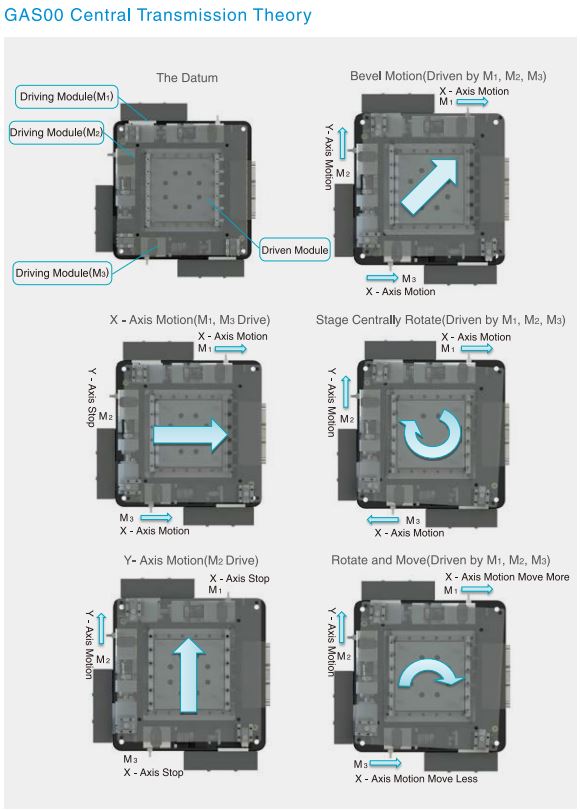

Transmission Theory
