GAS03 Series

★ Light-weight and Extra-thin-It creates the wing-free thin & lighter mechanism by applying the XYθ module.
★ The cross-roller bearings have been pre-loaded, to perform the whole unit high precision and rigidity.
★ Hollow structure-It can be used for the optical inspection devices or conduction tester.
★ Longer usage life and reliable accuracy of the Alignment stage itself is guaranteed by lubrication.
★ All products are Cryogenic Treatment. It can not only significantly upgrade the toughness and operation lifetime but also improve the dimension stability of materials.
★ 3D CMM- Ensure the quality and precision of the stage.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.06.29

Model No.	GAS03-1000CC-PN	GAS03-1000CC-UPJ	GAS03-1000RS-PN	GAS03-1000RS-UPJ	GAS03-1500CC-PN	GAS03-1500CC-UPJ	GAS03-1500RS-PN	GAS03-1500RS-UPJ
Stage Size (mm)	1000x1000	1000x1000	1000x1000	1000x1000	1500x1500	1500x1500	1500x1500	1500x1500
Base Size (mm)	1200x1200	1200x1200	1200x1200	1200x1200	1700x1700	1700x1700	1700x1700	1700x1700
Height (mm)	160	160	160	160	160	160	160	160
Travel Stroke (mm)	±15x±15	±15x±15	±15x±15	±15x±15	±15x±15	±15x±15	±15x±15	±15x±15
Angle (θ)°	±2°	±2°	±2°	±2°	±1°	±1°	±1°	±1°
Stage Material	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin
Stage Surface Treatment	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized
Base Material	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin	Duralumin
Base Surface Treatment	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized	Black Anodized
Ball Screw Spec.	Ø10-P4	Ø10-P4	Ø20-P2	Ø20-P2	Ø10-P4	Ø10-P4	Ø20-P2	Ø20-P2
Dynamic Load Capacity (kgf)	80	80	90	90	85	85	100	100
Static Load Capacity (kgf)	170	170	200	200	180	180	200	200
Repeatability Accuracy (μm)	±5	±1	±5	±1	±5	±1	±5	±1
Parallelism (μm)	150	150	150	150	150	150	150	150
Motor Brand	GMT	Oriental	GMT	Oriental	GMT	Oriental	GMT	Oriental
Motor Type	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper	2-Phase Stepper	5-Phase Stepper
Motor Shaft	□57 Double Shaft	□60 Double Shaft	□57 Double Shaft	□60 Double Shaft	□57 Double Shaft	□60 Double Shaft	□57 Double Shaft	□60 Double Shaft
Motor Model. No.	2MS- N57D41A	PKP564 FN24BW	2MS- N57D41A	PKP564 FN24BW	2MS- N57D41A	PKP564 FN24BW	2MS- N57D41A	PKP564 FN24BW
Driver Brand	Contact us	Oriental	Contact us	Oriental	Contact us	Oriental	Contact us	Oriental
Driver Model. No.	Contact us	CVD524-K	Contact us	CVD524-K	Contact us	CVD524-K	Contact us	CVD524-K

Characteristics

♦ Ultra thin appearance

Achieved with the lighted crossed roller bearings and modularized structures.

♦ High stiffness and high precision

Applying preload operations on every roller bearings of stages for better rigidity and precision.

♦ Hollow structure

Lightweight structure of the stages could be suitable for optical inspection devices.

♦ Lubrication system

Well lubricating gives the stages longer using life and reliable accuracy.

♦ Genericity

Available sizes from 160mm to 1500mm, even capable of heightening load resistance by adding driven modules.

Applications

♦ Panel lamination machinery

♦ Panel film laminating machines

♦ Print screen and 3D printing

♦ Angular glass cutting and grinding equipment

♦ Wafe alignment equipment

♦ P.C.D exposure equipment

♦ Software cutting equipment

♦ Semi-conductor equipment

GAS03 Series

Structures and Lubrication System

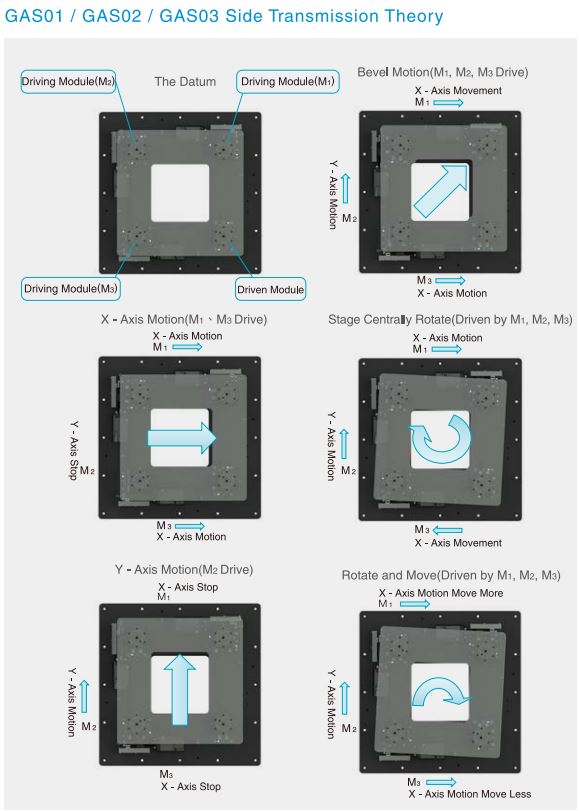

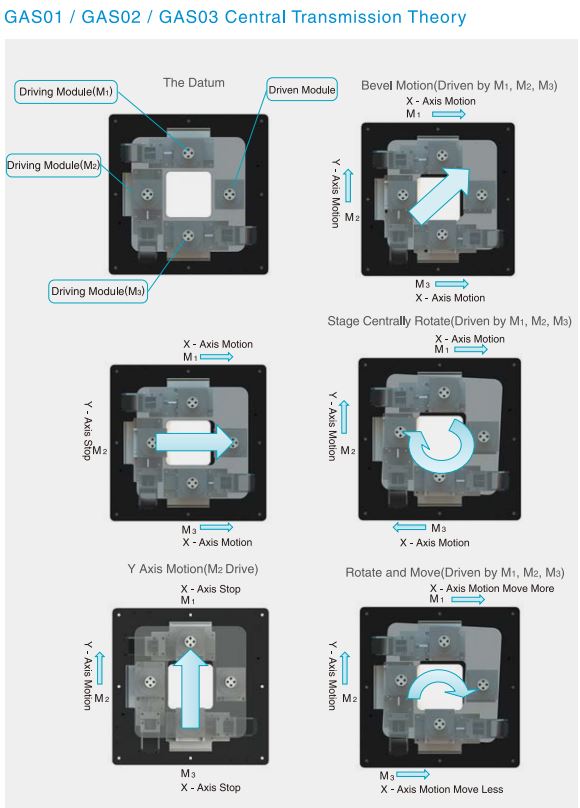

Transmission Theory
