GXA100 - Ultra Precision

★ Table Size 100x100
★ Material-Aluminum Alloy / Anodized

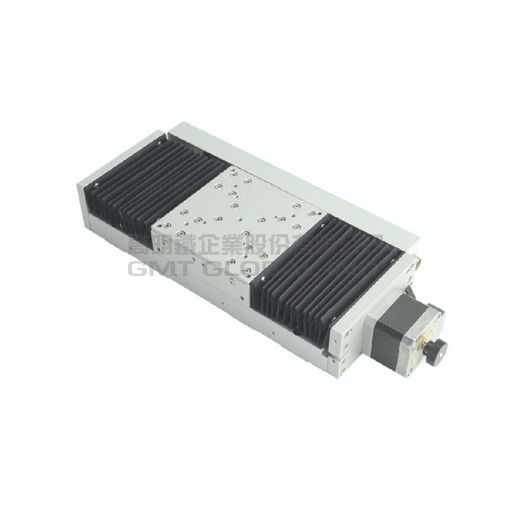

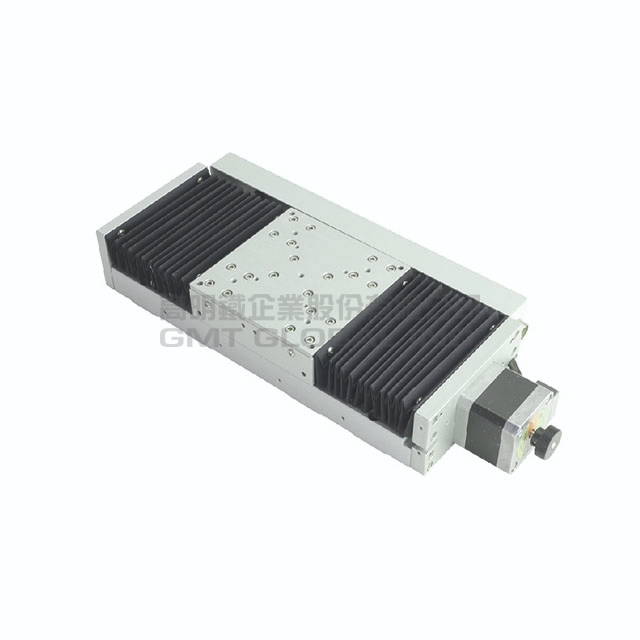

★ This product pic. shows as GXA100-100-A2OPL.

SKU: GXA100 - Ultra Precision-copy

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2024.11.13

Model No.			GXA100-100-A2OPL
Mechanical Spec.	Table Size (mm)		100X100
	Travel Stroke (mm)		±50
	Drive Type		Ball Screw Ø8，lead 2.0mm
	Rail		Precision Miniature Linear Guide Rail
	Stage Material / Surface Treatment		Aluminum alloy / Original color matte anodized
	Main Unit Weight (kg)		3.5
	Coupling Model		FACCS21-5*5
	Accuracy Level		OP：High-End
	Wiring Method		R: Right wiring (Standard stock) / L: Left wiring
Precision Spec.	Resolution(Pulse) (µm)		2 (Full)；1 (Half)
	Max. Speed(Full Step) (mm/sec)		20
	Positioning Precision (µm)		8
	Repeatability Precision(µm)		±0.5
	Load Capacity (Kgf)		20
	Missed Step (µm)		0.5
	Moment Stiffness		0.04 ("/N-cm)
	Pitch / Yaw		25" / 20"
	Parallelism (µm)		20
	Dynamic Straightness (µm)		3
	Dynamic Parallelism (µm)		15
Electrical Spec.	Motor	Type / Shaft Numbers	5-phase high resolution stepper motor / □42 double shafts
		Brand / Model	Oriental motor / PKP544MN18B
	Driver Brand / Model		Oriental motor CVD518-K
	Connector		12-Pin male end connetor HRS

Multi-point repeated positioning accuracy

♦ Accuracy measurement description

1. Unidirectional positioning accuracy: within the range of the predetermined detection stroke, starting from a starting position, moving and positioning in a certain direction sequentially, and detecting the actual
The difference between the movement value and the target movement value, and the maximum error value is taken. This value is the unidirectional positioning accuracy.
2. Multi-point repeated positioning accuracy: within the range of the predetermined detection stroke, when the mechanical program is executed, the position accuracy obtained by repeatedly running the same program code
degree. Calculate the position deviation that occurs when the same position is repeated back and forth, and obtain the deviation value between the two.

♦ Precision introduction

1. Design the GMT high-level precision inspection method to meet the precision requirements of fiber coupling and semiconductor manufacturing process.
2. The detection of GMT high-end precision linear slide module series adopts multi-point repeated measurement, that is, multi-point quantity measurement within a fixed stroke range (points
The amount is increased or decreased according to the length of the stroke), and the actual change of the round-trip position error is recorded, in pursuit of high precision and repeatability.
3. Through the non-contact laser interferometer measurement, to ensure that the unidirectional positioning is within 10μm, and the multipoint repetitive positioning accuracy is within 1.5μm. If there is a need for higher precision and precision, please contact the regional sales/business team.

System Configuration Diagram

♦ For detailed specifications, please read the description for the stage and connecting cable.

♦ For selection of driver, please refer to the cross-reference table for the motor/driver of the standard motorized stage or the GMT motor and driver catalog.

♦ The most preferred driver is recommended to be specified by GMT as considerations. For different needs, please choose the suitable driver based on real functional needs.

Axis Definition

GMT has defined different axis as the following figuration according to the movement direction:

Horizontal movement direction is X and Y axis.

Vertical movement direction is Z axis.

Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.

Green arrows present the specified axis movement direction.
