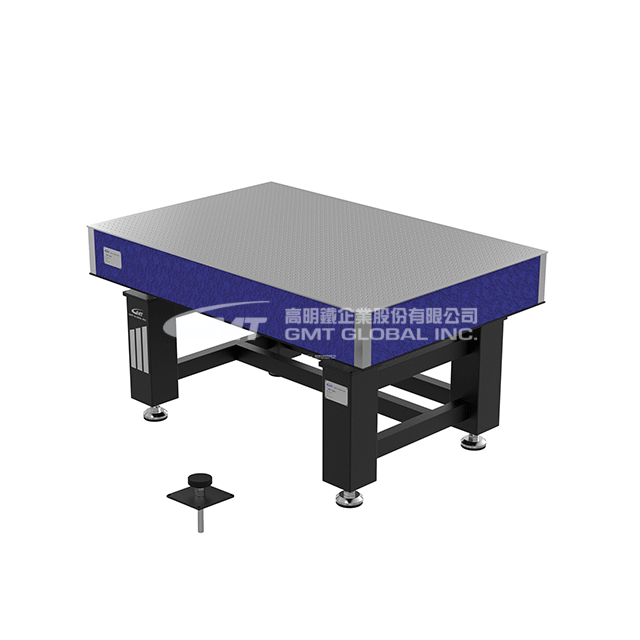

GDE-1509

★ Using the rubber mat vibration isolation.
★The table is made of SUS430 stainless steel,matte finished,and M6 holes distributes by 25×25.
★ Using welding grinding structure to perform rigidity and lightweight.
★ The supports have been integrally welded to bring rigidity reliability.
★ Equipped to facilitate the adjustment of uneven ground.
★ Load capacity between 550kg to 1275kg.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Specifications
Contact Us

Update：2022.04.11

Model No.		GDE-1509
Mechanical Specification	Natural Frequency	15Hz
	Breadboard Style	Welding breadboard
	Material	SUS430 cold-rolled ferritic stainless steel
	Support Leg Style	Welded casters
	Vibration Isolation Method	Rubber gasket
	Flatness (mm)	0.1 / 600×600
	System Load (kg)	770
	Support Leg Load (kg)	970
	Table Size	1500X900X200
	Overall Height (mm)	800
	Table Processing	25×25mm, M6 Threaded hole
	Number of Support Leg	4
	Main Unit Weight (kg)	297
	Accessories	Horizontal calibrator, Adjustment wrench
