Updated: 2022.04.08

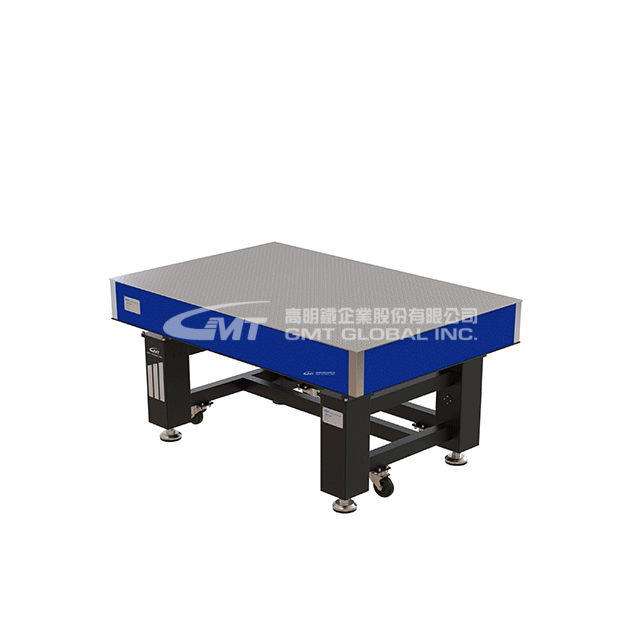

Model
GDT-2412
Mechanical Specification
Natural frequency
15Hz
Breadboard Style
Honeycomb breadboard with spacer cups
Material Structure
Upper plate: SUS430 cold rolled ferritic stainless steel/Lower plate: SS400 steel
Leg style
Welded casters (upgradeable air float)
Vibration isolation method
Rubber gasket
Flatness (mm)
0.1 / 600×600
System Load (kg)
690
Support Leg Load (kg)
1135
Table Size(mm)
2400/1200/200
Overall height (mm)
800
Mesa processing
25×25mm, M6 threaded hole
Number of legs
4
Body weight (kg)
559
Additional Accessories
Level calibration, adjustment wrench
Upgrade air floating accessories
GUDT-4L
Applicable models
GDT系列1812-2412
Vertical: 2~3Hz / Horizontal: 2~3Hz (load dependent)
Anti-vibration method
Super soft molded diaphragm air spring
Isolation method
Self-balancing air flotation
Accessories
Air compressor (optional)
