    GECB80 Electric Cylinder


    ★Miniaturization, low profile, Built-in sensor can be used with Openloop control.
    ★Built-in sensor can be used with Open-loop control.
    ★Patented anti-creep rails integrated, fit to vertical moving needs.
    ★Compact design of motor built-in.
    SKU: GECB80
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.7.10

    Stepper Motor

    Model No.

    GECB80

    Mechanical Spec.

    Table Size (mm)

    80

    Travel Stroke (mm)

    50、75

    Drive Type

    Ball Screw Ø8

    Lead

    2

    5

    8

    Rail

    Crossed Roller Guiding

    Precision Spec.

    Stage Material

    Aluminum Alloy / Black Anodized

    Wiring Method

    N:Standard

    Max. Speed (mm/s)

    30

    75

    120

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    116

    46

    22

    Horizontal Load (Kgf)

    8

    3

    1.5

    Vertical Load (Kgf)

    2

    0.8

    0.4

    Electrical Spec.

    Open-loop Driver

    ☐42,GTR22G-D

    Close-loop Driver

    Q-SERVO (GST-QSD42MR-24CP)

    Stage Side Connector

    15-Pin male connector D-SUB

    Controller Side Connector

    15-Pin female connector D-SUB

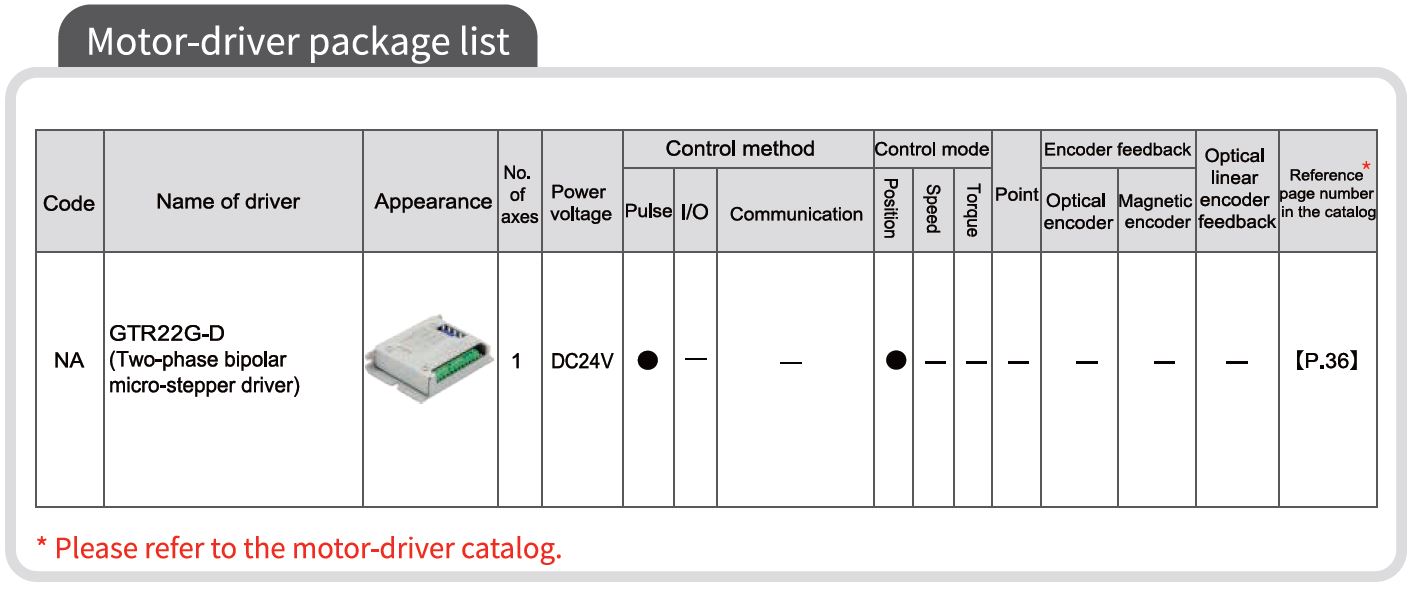

    Motor-driver package list
