<span style="font-size: 12pt;">★Use ball screw drive and patented self-lubricating sleeve guide for low wear, high rigidity, high smoothness and high precision.</span> <br /><span style="font-size: 12pt;">★The drive unit and drive control are all optional, reducing wiring and reducing the space required to use the drive and controller.</span> <br /><span style="font-size: 12pt;">★Built-in patented hex self-lubricating bushing that can withstand radial and moment loads while reducing vibration at stop, up to 200mm.</span> <br /><span style="font-size: 12pt;">★The pusher can be rotated without load, so that it does not require an external guide rail, and the application is more compact in the mechanism.</span>">
Update:2023.11.07
Stepper Motor | ||||

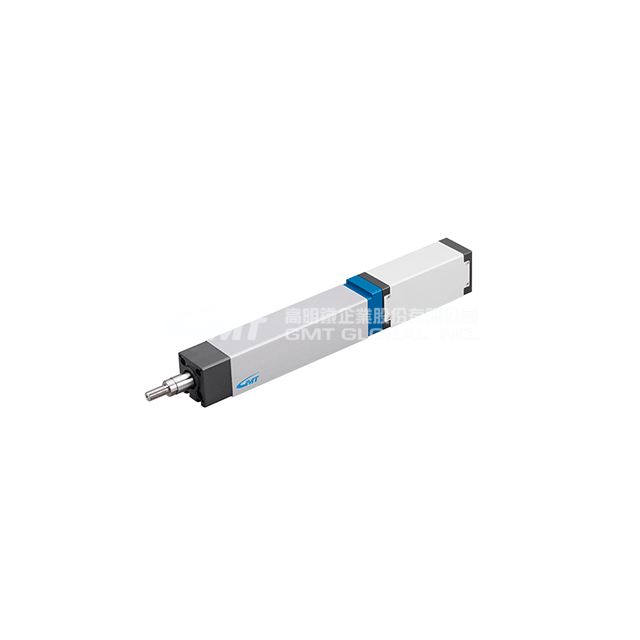

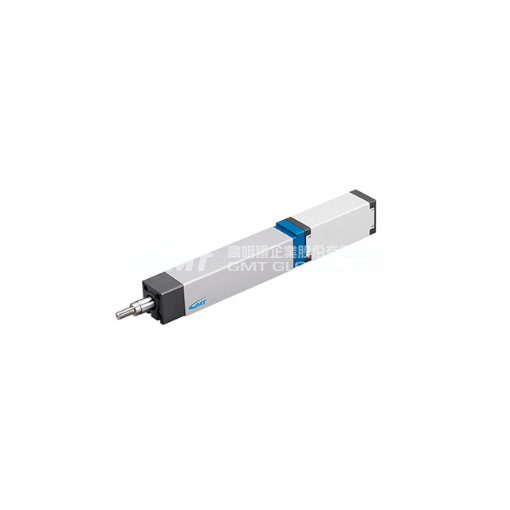

Model No. | GECX35 | |||
Mechanical Spec. | Table Size (mm) | 35 | ||
Travel Stroke (mm) | 50、75、100 | |||
Drive Type | Ball Screw Ø6 | |||
Lead | 2 | 4 | 6 | |
Rail | Self-Lubricating Sleeve Guiding | |||
Stage Material | Aluminum Alloy / Black Anodized | |||
Wiring Method | N:Standard | |||
Precision Spec. | Max. Speed (mm/s) | 40 | 80 | 120 |
Repeatability Precision (mm) | ± 0.005 | |||
Referencing Precision (mm) | ± 0.01 | |||
Rotation Angle Changes of Putter End | 0 | |||
Max. Thrust Force (N) | 89 | 44 | 22 | |
Horizontal Load (Kgf) | 12 | 9 | 6 | |
Vertical Load (Kgf) | 4 | 3 | 2 | |
Electrical Spec. | Open-loop Driver | ☐28,GTR22G-D | ||
Stage Side Connector | 15-Pin male connector D-SUB | |||
Controller Side Connector | 15-Pin female connector D-SUB |
