GERC100 Electric Cylinder

Used Aluminum body and steel rails, in order to achieve weight reduction.
With the slide table height highly consistent assembly of the motor, if the load is longer stroke, is not to be increased.
Travel stroke range : 200 ~ 600 mm (per 50 mm)、700mm、800mm、900mm、1000mm.
Dynamic permissible moment, rail and screw to maintain at the same level.
Return to the origin can be completed quickly.

Update：2023.11.07

Stepper / Servo Motor

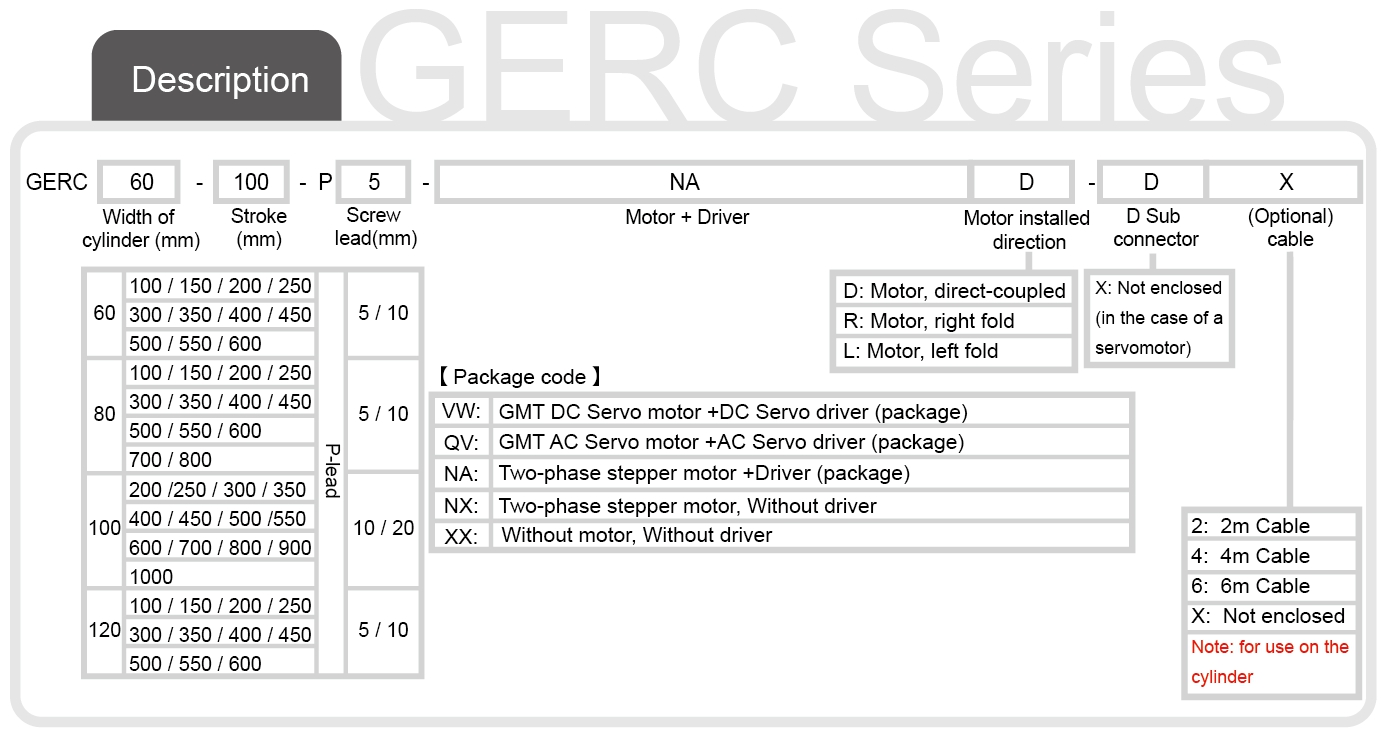

Model No.		GERC100
Mechanical Spec.	Table Size (mm)	100
	Travel Stroke (mm)	200 ~ 600 (Per 50mm)、700、800、900、1000
	Drive Type	Ball Screw Ø16
	Lead (mm)	10	20
	Rail	Linear ball circulation
	Stage Material	Aluminum Alloy / Black Anodized
	Wiring Method	N：Standard
Stepper Close-loop Precision Spec.	Max. Speed (mm/s)	200	400
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	265	133
	Horizontal Load (Kgf)	80	70
	Vertical Load (Kgf)	20	17.5
Stepper Close-loop Electrical Spec.	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB
Stepper Open-loop Precision Spec.	Max. Speed (mm/s)	150	300
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	124	62
	Horizontal Load (Kgf)	80	70
	Vertical Load (Kgf)	20	17.5
Stepper Open-loop Electrical Spec.	Open-loop Driver	☐57，CVD228B-K
	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB

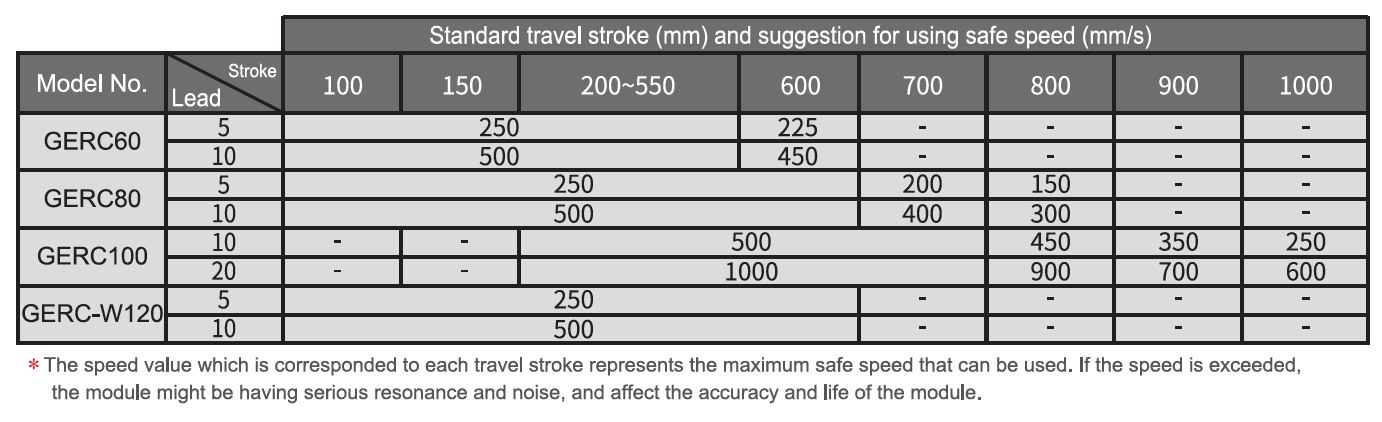

DC Servo Precision Spec.	Max. Speed (mm/s)	Travel Stroke 200~700：500 mm/s Travel Stroke 800：450 mm/s Travel Stroke 900：350 mm/s Travel Stroke 1000：250 mm/s If exceeding this speed, the module might be have serious resonance.	Travel Stroke 200~700：1000 mm/s Travel Stroke 800：900 mm/s Travel Stroke 900：700 mm/s Travel Stroke 1000：600 mm/s If exceeding this speed, the module might be have serious resonance.
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	341	170
	Horizontal Load (Kgf)	80	70
	Vertical Load (Kgf)	20	17.5

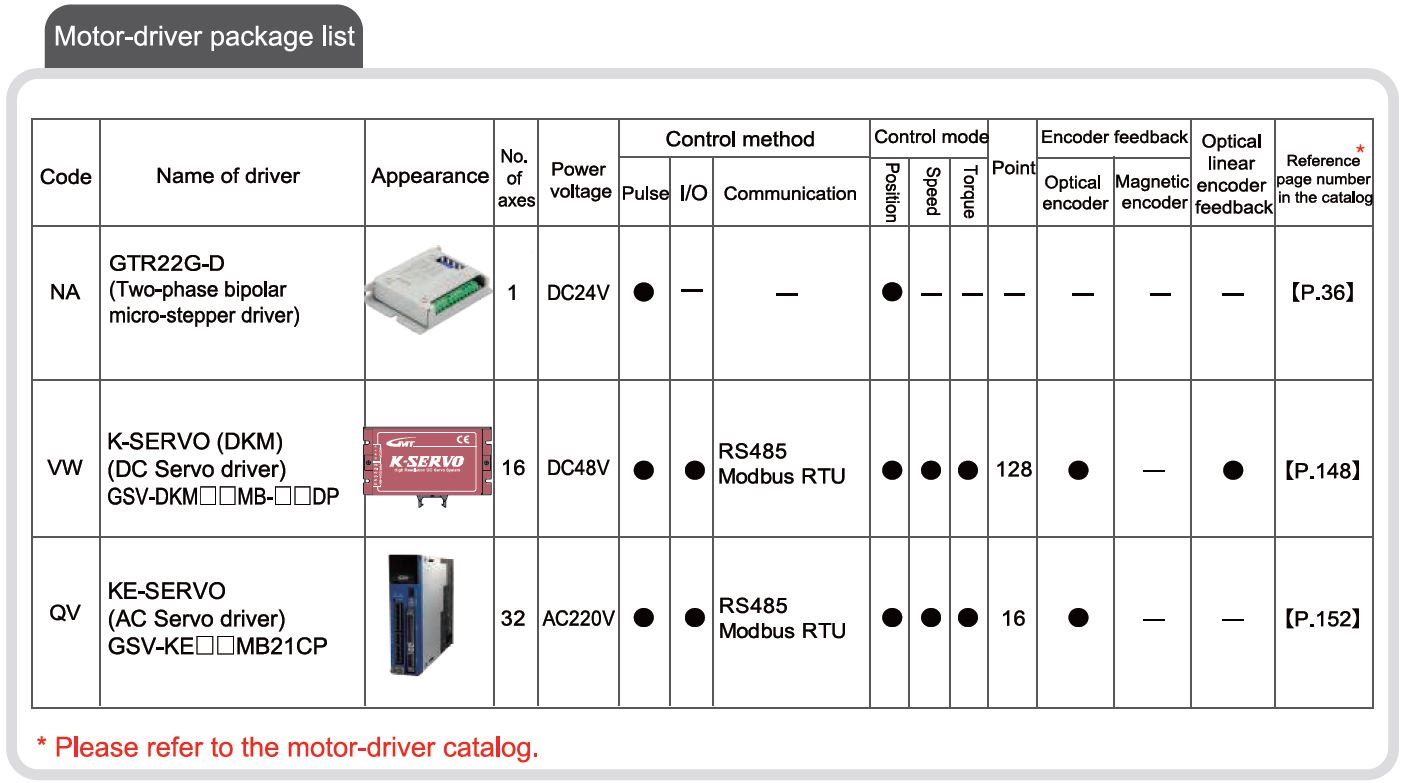

DC Servo Electrical Spec.	DC Servo Motor	200W：GSVM - D02MD4
	DC Servo Driver	K-SERVO (GSV-DK02MR-48DP)
	Stage Side Connector	Manufacturer：TE Connectivity Power cord：172159-1 + 170366-1 (Male end) Encoder cable：172161-1 + 170365-1 (Male end)
	Controller Side Connector	Manufacturer：KST Power cord：E1510-RED (European Terminals) Manufacturer：JST Encoder cable：PHDR-12VS+SPHD-001T-P0.5 (Female end)
AC Servo Precision Spec.	Max. Speed (mm/s)	250	500
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	346	173
	Horizontal Load (Kgf)	80	70
	Vertical Load (Kgf)	20	17.5
AC Servo Electrical Spec.	AC Servo Motor	200W：GSVM-A02LC4
	AC Servo Driver	GSV-KE01MB21CP
	Stage Side Connector	Manufacturer：Tyco electronics Power cord：172167-1 (Male end) Encoder cable：172171-1 (Male end)
	Controller Side Connector	Manufacturer：Tyco electronics Power cord：172159-1 (Female end) Encoder cable：172163-1 (Female end)
