    GESC8 Electric Cylinder


    Used Aluminum body and steel rails, in order to achieve weight reduction.
    With the slide table height highly consistent assembly of the motor, if the load is longer stroke, is not to be increased.
    Travel stroke range : 50~1100 mm (per 50 mm).
    Dynamic permissible moment, rail and screw to maintain at the same level.
    Return to the origin can be completed quickly.

    Update:2023.11.07

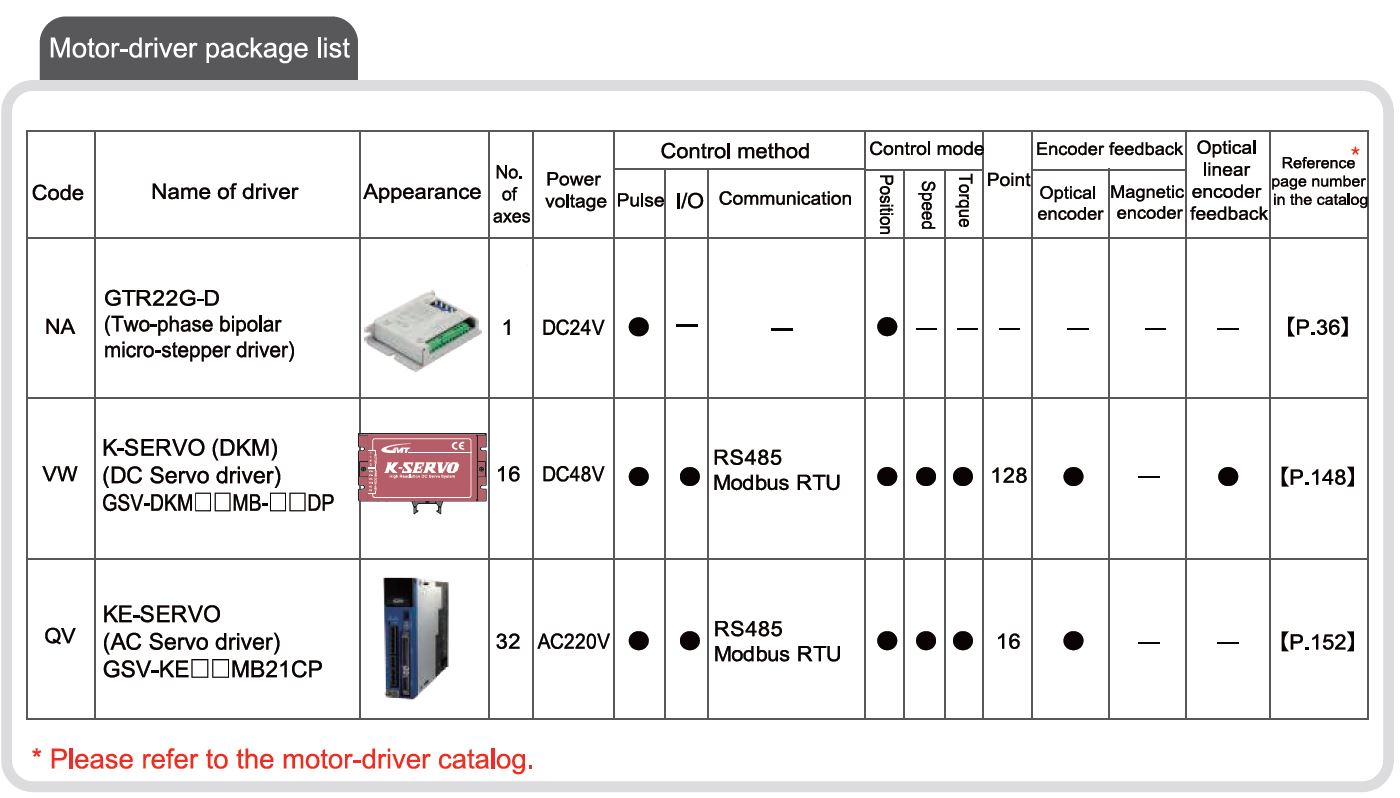

    Stepper / Servo Motor

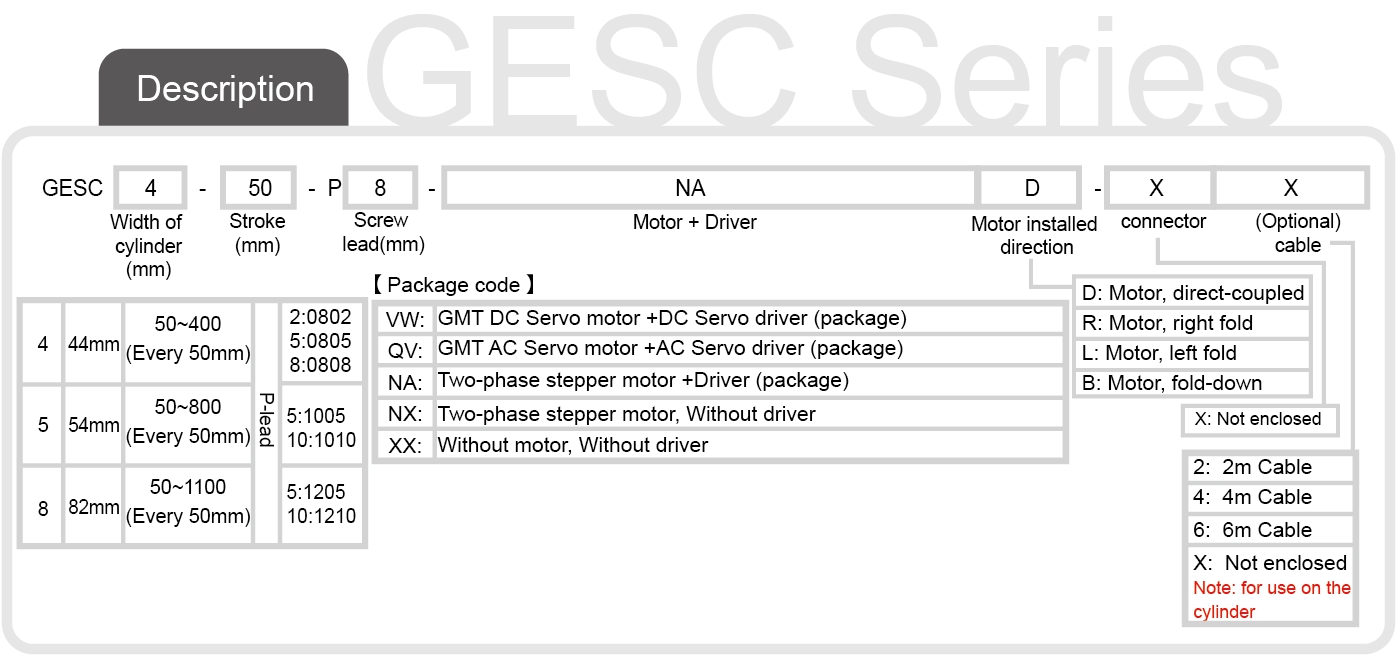

    Model No.

    GESC8

    Mechanical Spec.

    Table Size (mm)

    82

    Travel Stroke (mm)

    50 ~ 1100 ( Per 50mm)

    Drive Type

    Ball Screw Ø12

    Lead (mm)

    5

    10

    Rail

    Circular Linear Ball Guiding

    Stage Material

    Aluminum Alloy / Black Anodized

    Wiring Method

    N:Standard

    Precision Spec.

    Max. Speed (mm/s)

    N / A

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    N / A

    Horizontal Load (Kgf)

    50

    30

    Vertical Load (Kgf)

    15

    8

    Stepper Close-loop Precision Spec.

    Max. Speed (mm/s)

    100

    200

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    530

    265

    Horizontal Load (Kgf)

    50

    30

    Vertical Load (Kgf)

    15

    8

    Stepper Close-loop Electrical Spec.

    Stage Side Connector

    15-Pin male connector D-SUB

    Controller Side Connector

    15-Pin female connector D-SUB

    Stepper Open-loop Precision Spec.

    Max. Speed (mm/s)

    100

    200

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    180

    90

    Horizontal Load (Kgf)

    50

    30

    Vertical Load (Kgf)

    15

    8

    Stepper Open-loop Electrical Spec.

    Open-loop Driver

    ☐57,CVD228B-K

    Stage Side Connector

    15-Pin male connector D-SUB

    Controller Side Connector

    15-Pin female connector D-SUB

    DC Servo Precision Spec.

    Max. Speed (mm/s)

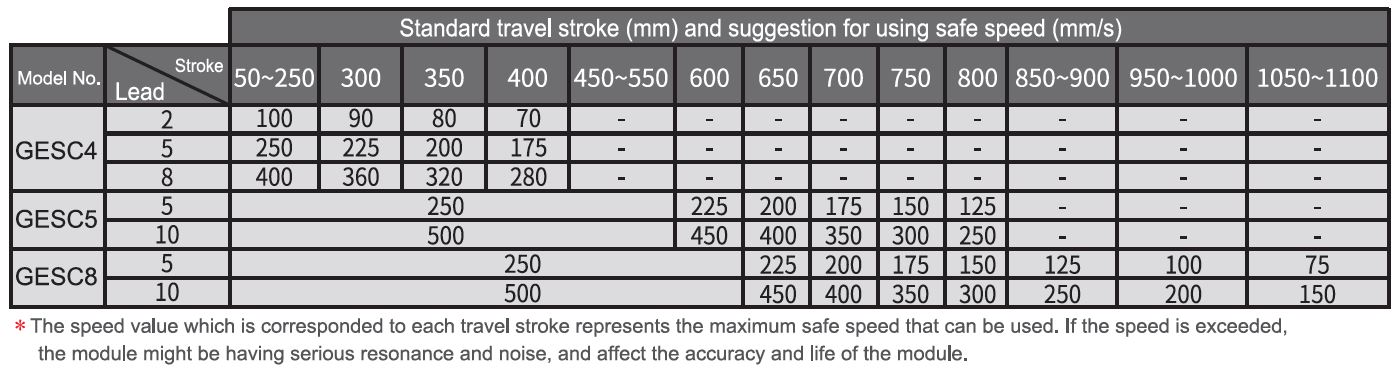

    Travel Stroke 50~600:250 mm/s

    Travel Stroke 650:225 mm/s

    Travel Stroke 700:200 mm/s

    Travel Stroke 750:175 mm/s

    Travel Stroke 800:150 mm/s

    Travel Stroke 850~900:125 mm/s

    Travel Stroke 950~1000:100 mm/s

    Travel Stroke 950~1100:75 mm/s

    If exceeding this speed, the module might be have serious resonance.

    Travel Stroke 50~600:500 mm/s

    Travel Stroke 650:450 mm/s

    Travel Stroke 700:400 mm/s

    Travel Stroke 750:350 mm/s

    Travel Stroke 800:300 mm/s

    Travel Stroke 850~900:250 mm/s

    Travel Stroke 950~1000:200 mm/s

    Travel Stroke 950~1100:150 mm/s

    If exceeding this speed, the module might be have serious resonance.

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    200 W

    683

    341

    Horizontal Load (Kgf)

    50

    30

    Vertical Load (Kgf)

    15

    8

    DC Servo Electrical Spec.

    DC Servo Motor

    200 W

    GSVM - D02MD4

    DC Servo Driver

    200 W

    K-SERVO (GSV-DK02MR-48DP)

    Stage Side Connector

    Manufacturer:TE Connectivity

    Power cord:172159-1 + 170366-1 (Male end)

    Encoder cable:172161-1 + 170365-1 (Male end)

    Controller Side Connector

    Manufacturer:KST

    Power cord:E1510-RED (European Terminals)

    Manufacturer:JST

    Encoder cable:PHDR-12VS+SPHD-001T-P0.5 (Female end)

    AC Servo Precision Spec.

    Max. Speed (mm/s)

    Travel Stroke 50~600:250 mm/s

    Travel Stroke 650:225 mm/s

    Travel Stroke 700:200 mm/s

    Travel Stroke 750:175 mm/s

    Travel Stroke 800:150 mm/s

    Travel Stroke 850~900:125 mm/s

    Travel Stroke 950~1000:100 mm/s

    Travel Stroke 950~1100:75 mm/s

    If exceeding this speed, the module might be have serious resonance.

    Travel Stroke 50~600:500 mm/s

    Travel Stroke 650:450 mm/s

    Travel Stroke 700:400 mm/s

    Travel Stroke 750:350 mm/s

    Travel Stroke 800:300 mm/s

    Travel Stroke 850~900:250 mm/s

    Travel Stroke 950~1000:200 mm/s

    Travel Stroke 950~1100:150 mm/s

    If exceeding this speed, the module might be have serious resonance.

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    683

    341

    Horizontal Load (Kgf)

    50

    30

    Vertical Load (Kgf)

    15

    8

    AC Servo Electrical Spec.

    AC Servo Motor

    200W:GSVM-A02LC4

    AC Servo Driver

    GSV-KE02MB21CP

    Stage Side Connector

    Manufacturer:Tyco electronics

    Power cord:172167-1 (Male end)

    Encoder cable:172171-1 (Male end)

    Controller Side Connector

    Manufacturer:Tyco electronics

    Power cord:172159-1 (Female end)

    Encoder cable:172163-1 (Female end)
