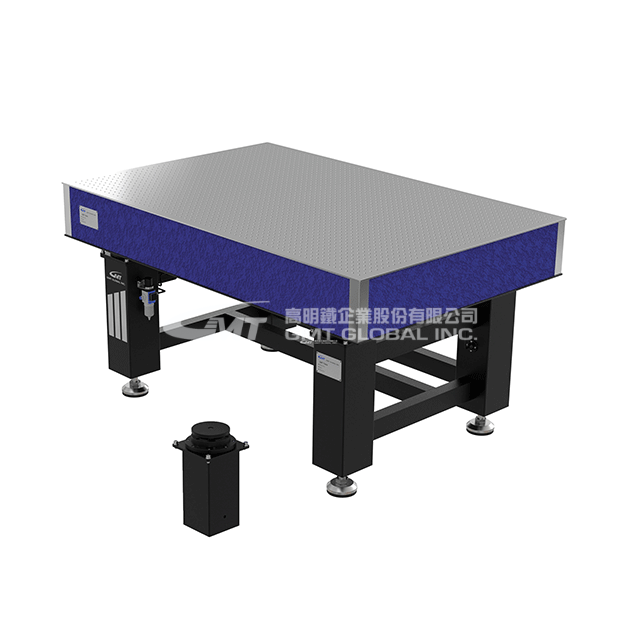

GPE-2012

★Air isolators have been applied to the supports to achieve a perfect vibration isolated.
★The double chamber contained the micro-damp vents to reduce the vibration caused by external force and movement of loading gravity.
★Automatic pressure balancing in the chamber to correct partial load and imbalance caused by external forces.
★The table is made of SUS430 stainless steel,matte finished,and M6 holes distributes by 25×25.
★Using welding grinding structure to perform rigidity and lightweight.
★Equipped to facilitate the adjustment of uneven ground.
★Load capacity between 550kg to 1275kg.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2022.04.12

Model No.		GPE-2012
Mechanical Specification	Breadboard Style	Welding breadboard
	Material	SUS430 cold-rolled ferritic stainless steel
	Support Leg Style	Welded casters
	Frequency	Vertical: 2 ~ 3Hz / Horizontal: 2 ~ 3Hz (load and center of gravity height related)
	Vibration Mode	Ultra - soft moulded diaphragm air spring
	Vibration Isolation Method	Self-balancing air floation
	Flatness (mm)	0.1 / 600×600
	System Load (kg)	640
	Support Leg Load (kg)	1000
	Table Size	2000X1000X200
	Overall Height (mm)	800
	Table Processing	25×25mm, M6 Threaded hole
	Number of Support Leg	4
	Main Unit Weight (kg)	502
	Accessories	Horizontal calibrator, adjust the wrench, air compressor(optional)
