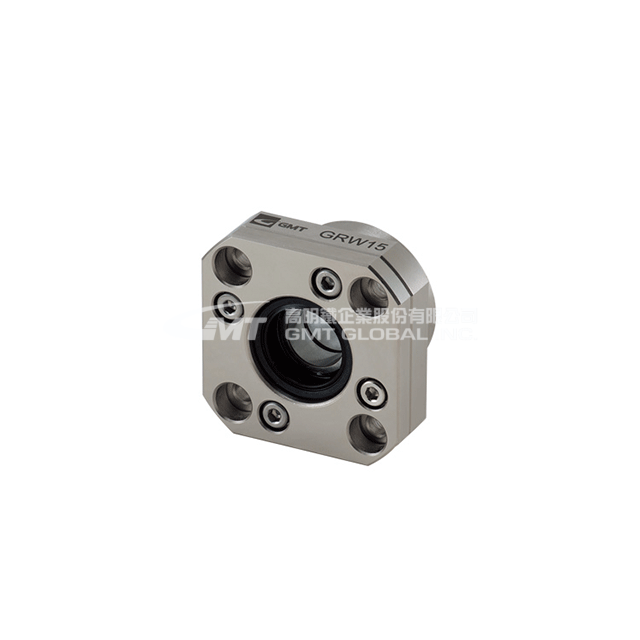

    GRW20-S Standard


    ★ Support Unit - Standard – Flange fixed side.
    ★ Applied angular contact bearings.
    ★ Pre-loaded grade is provided Light, Medium and heavy.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.10.21

    Model No.

    GRW20-SL

    GRW20-SM

    GRW20-SH

    Specification

    Material

    S50C

    Surface Finish

    B:Black Dyed

    N:Ni-Plating

    Pre-loaded

    L:LightM:MediumH:Heavy

    Dimensions

    Ød (mm)

    20

    ØR (mm)

    85

    口G (mm)

    68

    T (mm)

    52

    H (mm)

    22

    F (mm)

    30

    ØD (-0.01, -0.03) (mm)

    57

    E (mm)

    52

    Installation (A)

    T1 (mm)

    10

    E1 (mm)

    10

    Installation (B)

    T2 (mm)

    14

    E2 (mm)

    14

    Dimensions

    PCD (mm)

    70

    Ød1 (mm)

    6.6

    Ød2 (mm)

    11

    Z (mm)

    10

    口S (mm)

    30

    Recommended

    Processing

    Dimensions

    of

    Shaft

    Ball Screw Shaft

    ØD (mm)

    25 / 28 / 30

    Shaft End Dia.

    Ød (mm)

    20 (-0.005, -0.014)

    Processing sizes of shaft

    ØA (mm)

    17

    B (mm)

    62

    C (mm)

    25

    Nominal Thread

    M (mm)

    M20 x P 1.0

    L (mm)

    17

    Space Ring Length

    T4 (mm)

    11





    Support Unit Introduction



    ♦   Preload selection and applications

         - Light (L)

              * Machine Requirements:Equipments with small vibration and small thrust, load in one fixed direction. High accuracy is not required. Reduction of frictional force.

              * Application Examples:Laser welder, small CNCmill machine, cutter, welder, automatic tool changer, packing machine, material supply equipment.

         - Medium (M)

              * Machine Requirements:Equipments with load on a post. Equipments with a torque acting on it. Equipments working in one direction. Equipments with low load. Equipments with high accuracy.

              * Application Examples:Automated feeder, linear feeder, automatedpainting machine, precision slide table, Z-axis control on machines, PC board punch machine. Industrial robot, EDM machine, NC lathe.

         - Heavy (H)

              * Machine Requirements:High rigidity, high vibration, high thrust equipments. High load, high torque equipments.

              * Application Examples:Machining center spindle, NC lathe, Z-axis spindle of the machinery, milling machine, grinding wheel feeding of grinding machine.



    ♦  Pre-Loaded Description

         - Purpose:1. Increase the rotational accuracy of axle

                            2. Increase the rigidity of axle

                            3. Reduce unwanted clearance

                            4. Reduce vibration and noise while bearing stops.

         - What is bearing preload?:The preload describes the process wherein a permenant thrust road is applied to the bearing, so that the bearing is secure in the groove and has no axial clearence. Apply normal force (N). Measure value of L of a pair of bearings. L=L1+L2. Press these pair of bearings on the covers to apply preload and bring these bearings together



    ♦   Selection Notes

    - [ Model ]:Pick up the model according to assembly method.

       Assembly:

              1. Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。

              2. Suspension and spindle mount:GFK、GFF、GRW、GRWE、GUR、GTR。

    - [ Size ]:Decide the size according to the ballscrew shaft O.D., and the center height.

    - [ Grade ]:Standard and economic types for options.

    - [ Pre-loaded ]:Decide pre-loaded of the bearing per needs.

    - [ Surface Finish ]:

                        Black dyed - Regular environment use, low humidity.

                        Nickel plating - Clean room use.

    - [ Bearing category ]:Available Japanese series and Taiwanese series.
