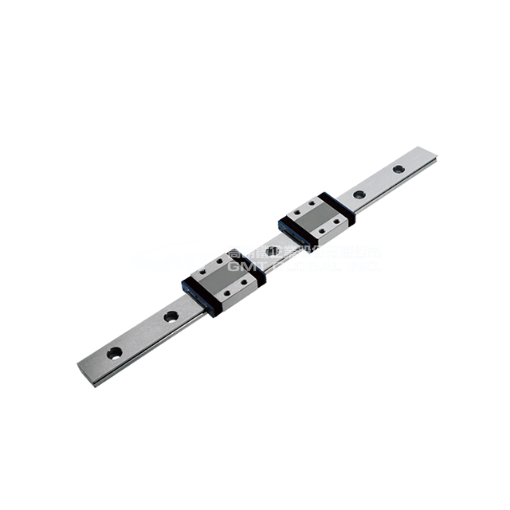

♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide. ♦ Circulation system is a plastic part designed to reduce friction noise during block running. ♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life. ♦ Steel balls are provided with steel wire retainers to prevent the ball falling. ♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance. ♦ The steel balls used in this series are all stainless steel material. 【Standard width rail】 - Fit to low profile equipment. - Stainless steel material. - High rigidity and accuracy. - Including retainer. 【Wide width rail】 - Suitable for single axis usage. - High capacity. - High rigidity and accuracy. - Stainless steel material. - Including retainer. 【Carbon steel rail】 - Economical. - Good anti-rust ability on the surface. - Same size as stainless steel series. |
