<span style="font-size: 12pt;">★ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.</span> <br /><span style="font-size: 12pt;">★ Circulation system is a plastic part designed to reduce friction noise during block running.</span> <br /><span style="font-size: 12pt;">★ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.</span>">
Update:2022.10.12

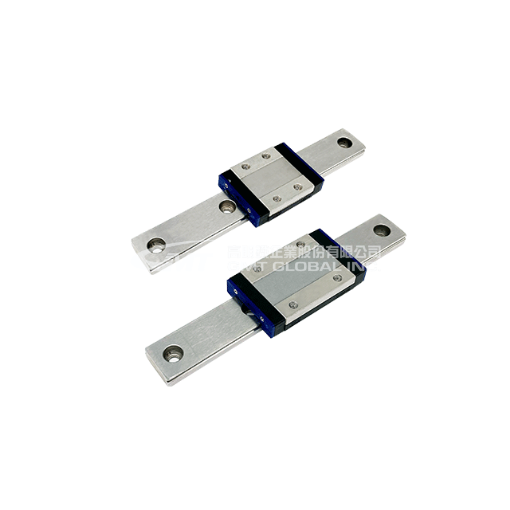

Model No. | GS07-W-N | GS07-W-L | |

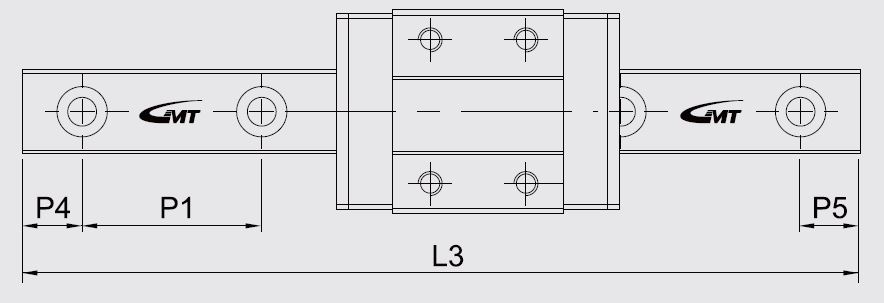

Specifications | Standard Length (mm) | 50 / 80 / 110 / 140 / 170 / 200 / 260 / 290 | |
Pitch (mm) | 30 | ||
Pitch Min. Length (P4, P5) (mm) | 3 | ||
Pitch Max. Length (P4, P5) (mm) | 25 | ||
Max. Rail Length (L3) (mm) | 2000 | ||
Rail Material | Stainless Steel / Carbon Steel | ||
Block Type | N:Standard Block | L:Long Block | |

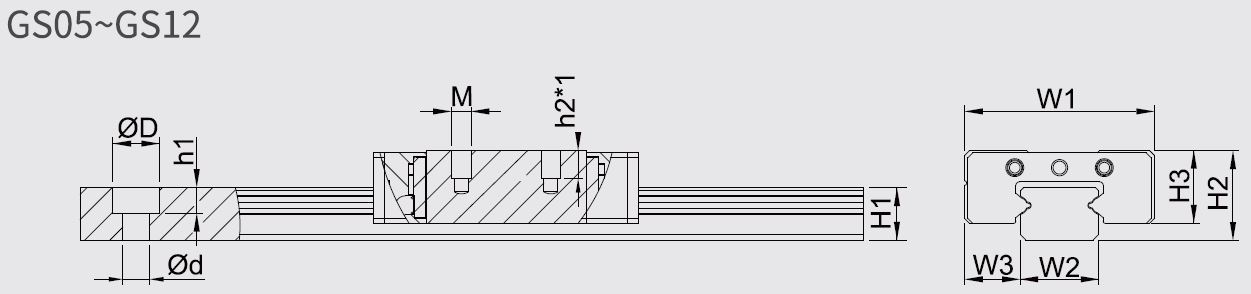

Assembled Dimensions | H2 (mm) | 9 | 9 |
W3 (mm) | 5.5 | 5.5 | |
Rail Dimensions | W2 (mm) | 14 | 14 |
H1 (mm) | 5.2 | 5.2 | |
P1 (mm) | 30 | 30 | |
ØD x Ød x h1 (mm) | 6 x 3.5 x 3.5 | 6 x 3.5 x 3.5 | |

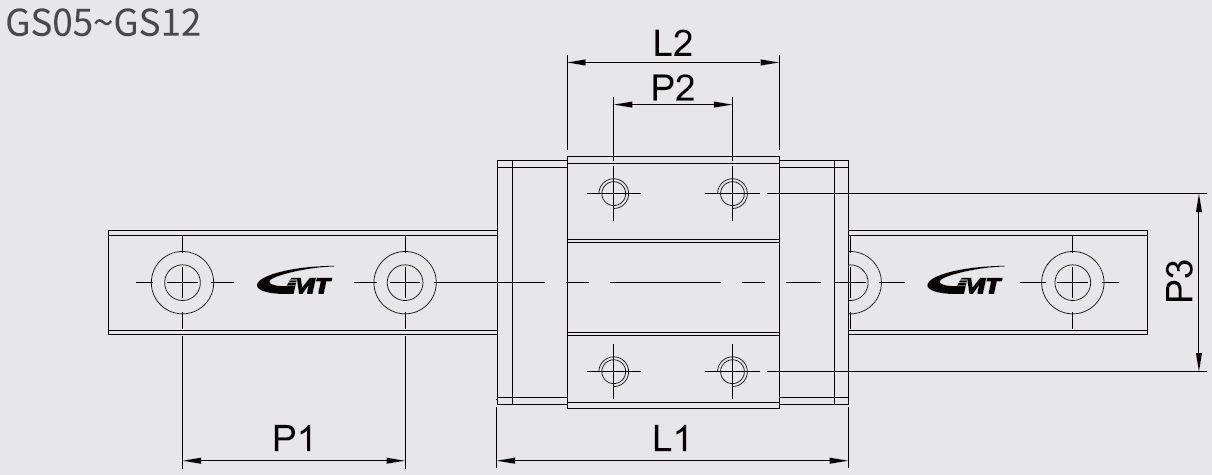

Block Dimensions | W1 (mm) | 25 | 25 |
L1 (mm) | 31.6 | 40.5 | |
L2 (mm) | 21.2 | 30.1 | |
H3 (mm) | 7 | 7 | |
P2 (mm) | 10 | 19 | |
P3 (mm) | 19 | 19 | |
M x h2 | M3 x 3 | M3 x 3 | |
Rated Loading | C (N) | 1121 | 1492 |
C0 (N) | 1990 | 2983 | |

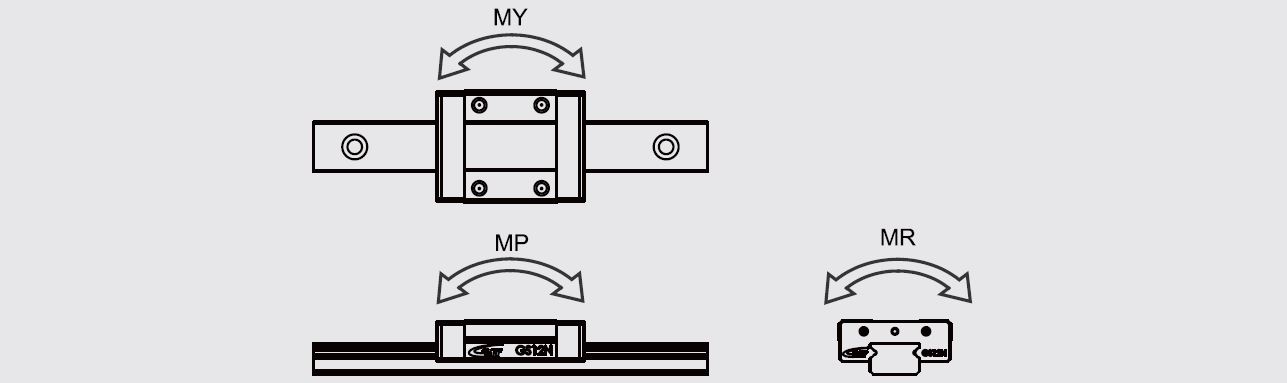

Static Torque | MR (Nm) | 14.3 | 21.5 |
MP (Nm) | 6.9 | 14.2 | |
MY (Nm) | 6.9 | 14.2 | |
Weight | Block (g) | 19 | 26 |
Rail (g/m) | 506 | 506 |

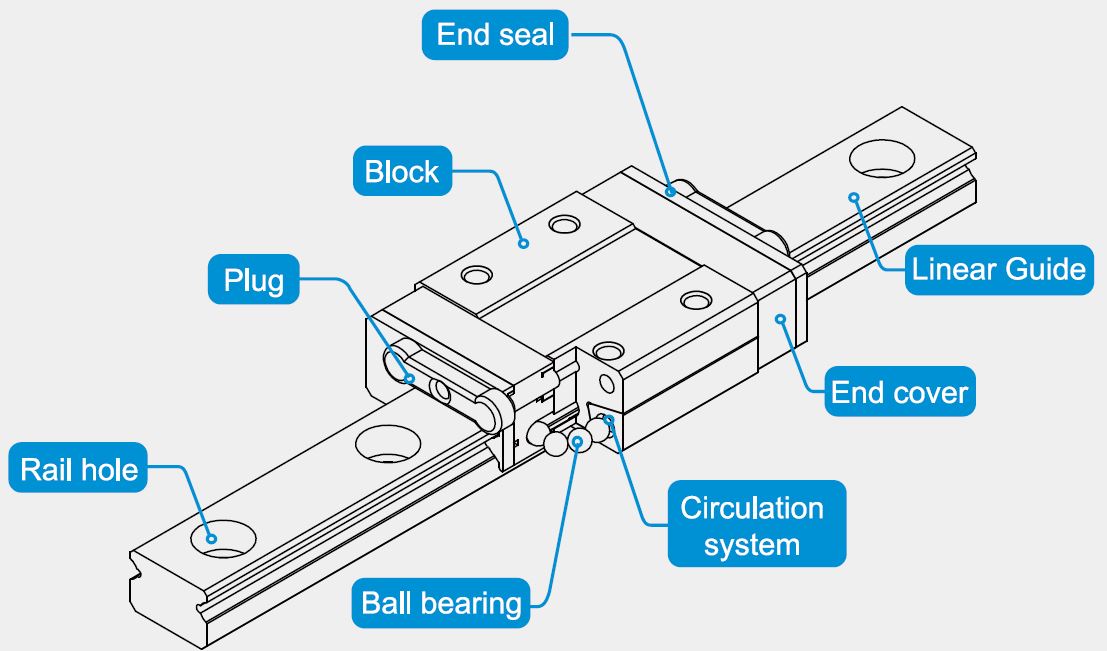

Product Structure |
Product Character |
♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide. ♦ Circulation system is a plastic part designed to reduce friction noise during block running. ♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life. ♦ Steel balls are provided with steel wire retainers to prevent the ball falling. ♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance. ♦ The steel balls used in this series are all stainless steel material.
【Standard width rail】 - Fit to low profile equipment. - Stainless steel material. - High rigidity and accuracy. - Including retainer.
【Wide width rail】 - Suitable for single axis usage. - High capacity. - High rigidity and accuracy. - Stainless steel material. - Including retainer.
【Carbon steel rail】 - Economical. - Good anti-rust ability on the surface. - Same size as stainless steel series. |

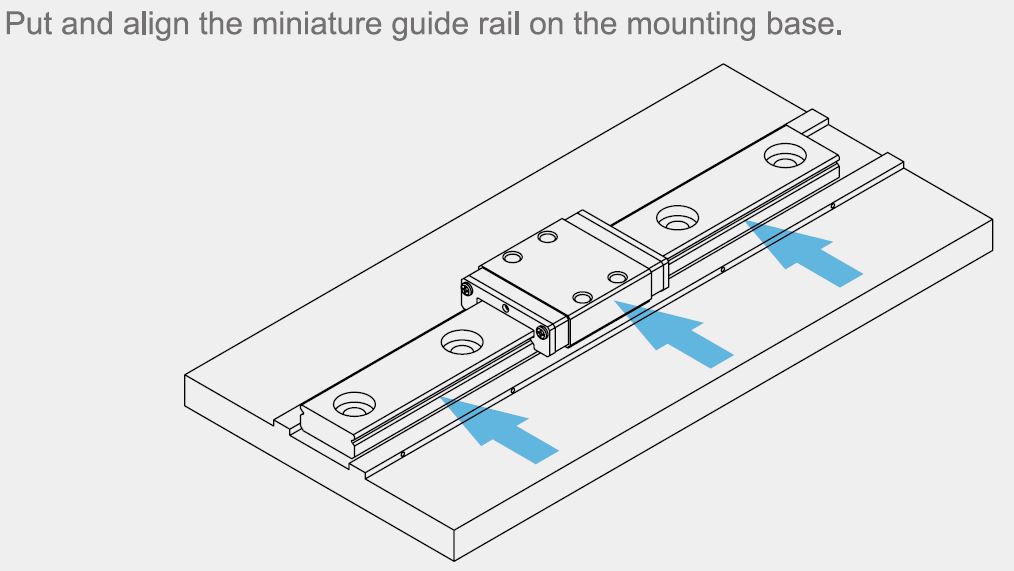

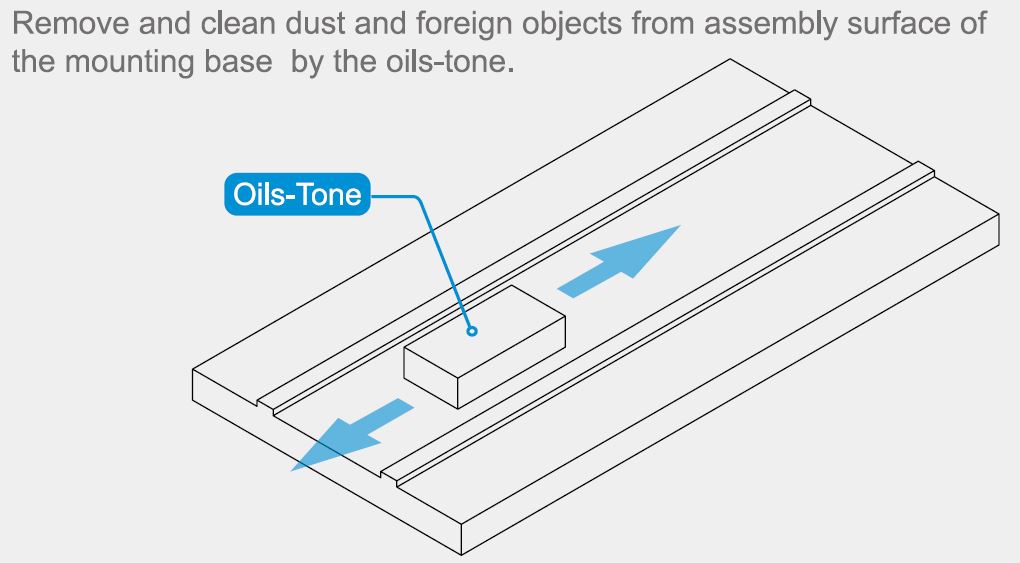

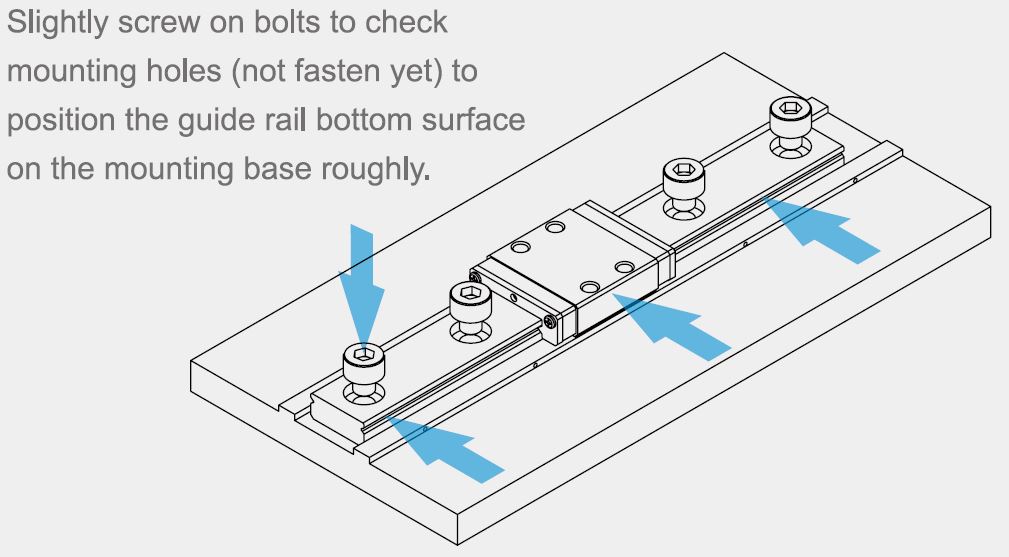

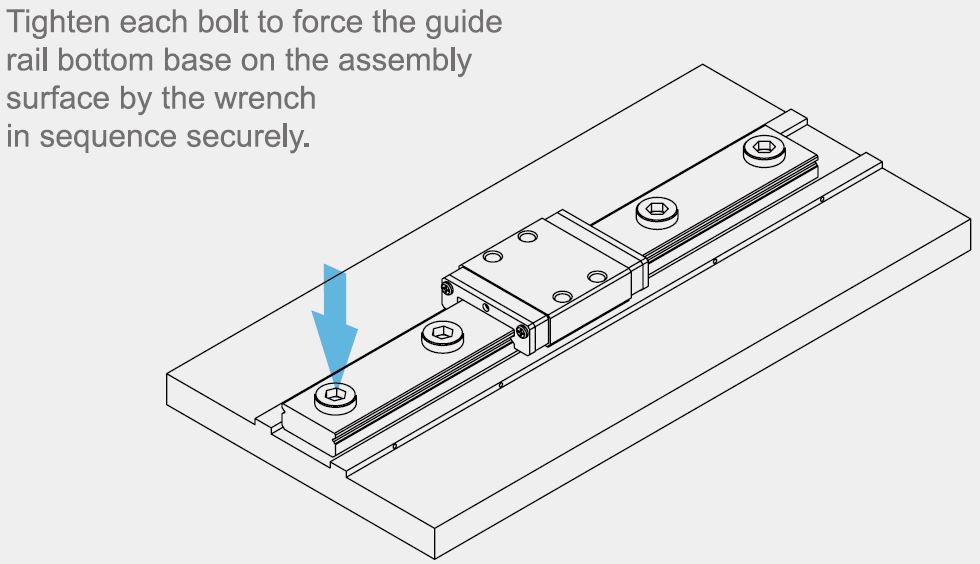

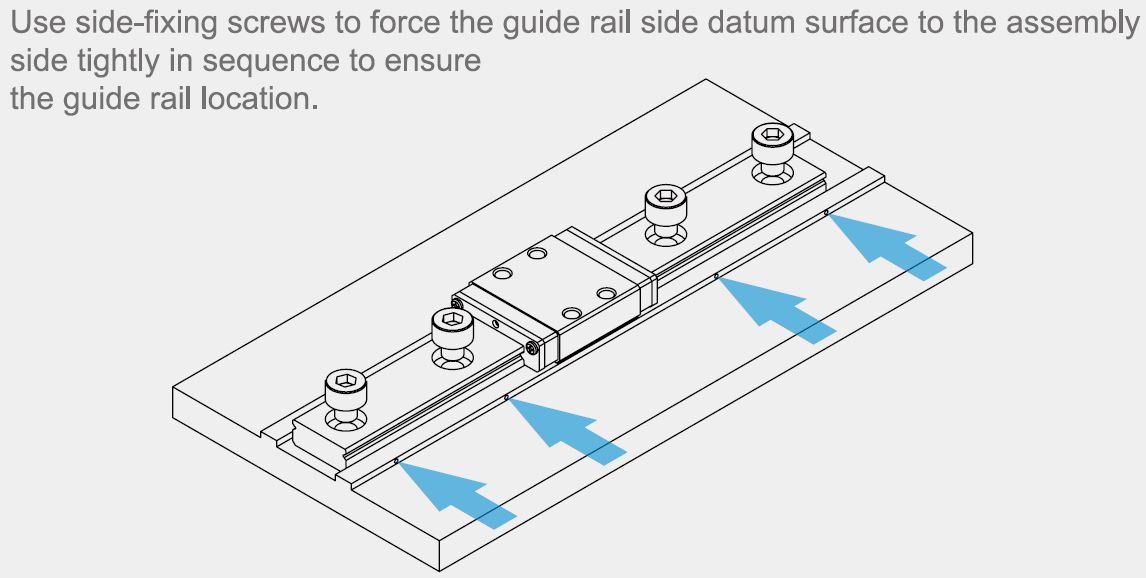

Mounting Method |
