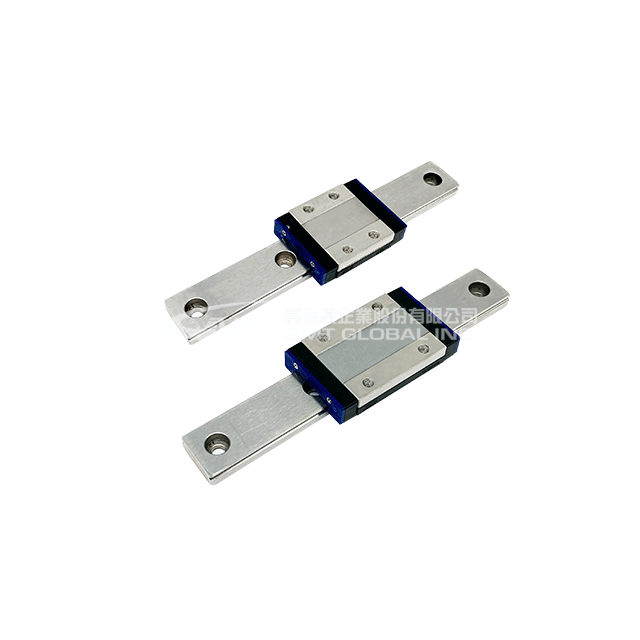

    GS12-W


    ★ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
    ★ Circulation system is a plastic part designed to reduce friction noise during block running.
    ★ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.10.12

    Model No.

    GS12-W-N

    GS12-W-L

    Specifications

    Standard Length (mm)

    70 / 110 / 150 / 190 / 230 / 270 / 310 / 350 / 390 / 430 / 470 / 510 / 550

    Pitch (mm)

    40

    Pitch Min. Length (P4, P5) (mm)

    4

    Pitch Max. Length (P4, P5) (mm)

    35

    Max. Rail Length (L3) (mm)

    2000

    Rail Material

    Stainless Steel / Carbon Steel

    Block Type

    N:Standard Block

    L:Long Block

    Assembled

    Dimensions

    H2 (mm)

    14

    14

    W3 (mm)

    88

    Rail

    Dimensions

    W2 (mm)

    2424

    H1 (mm)

    8.58.5

    P1 (mm)

    4040

    ØD x Ød x h1 (mm)

    8 x 4.5 x 4.5

    8 x 4.5 x 4.5

    Block

    Dimensions

    W1 (mm)

    4040

    L1 (mm)

    44.459.4

    L2 (mm)

    3146

    H3 (mm)

    10.110.1

    P2 (mm)

    1528

    P3 (mm)

    2828

    M x h2

    M3 x 3.5M3 x 3.5

    Rated

    Loading

    C (N)

    29123867

    C0 (N)

    49407410

    Static

    Torque

    MR (Nm)

    60.590.8

    MP (Nm)

    2553.6

    MY (Nm)

    2553.6

    Weight

    Block (g)

    6491

    Rail (g/cm)

    14431443









    Product Structure



    Product Character

    ♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.

    ♦ Circulation system is a plastic part designed to reduce friction noise during block running.

    ♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.

    ♦ Steel balls are provided with steel wire retainers to prevent the ball falling.

    ♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance.

    ♦ The steel balls used in this series are all stainless steel material.



    【Standard width rail】

    - Fit to low profile equipment.

    - Stainless steel material.

    - High rigidity and accuracy.

    - Including retainer.



    【Wide width rail】

    - Suitable for single axis usage.

    - High capacity.

    - High rigidity and accuracy.

    - Stainless steel material.

    - Including retainer.



    【Carbon steel rail】

    - Economical.

    - Good anti-rust ability on the surface.

    - Same size as stainless steel series.
