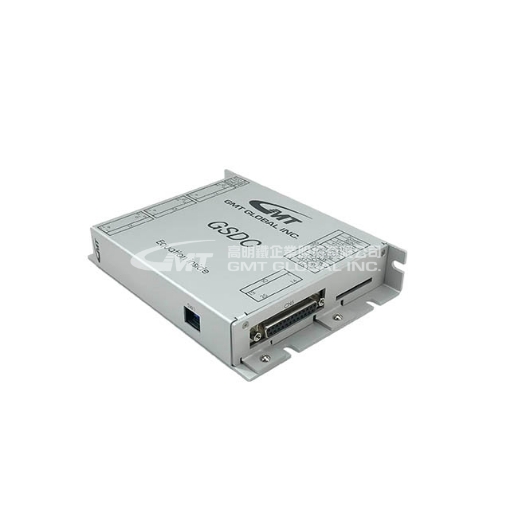

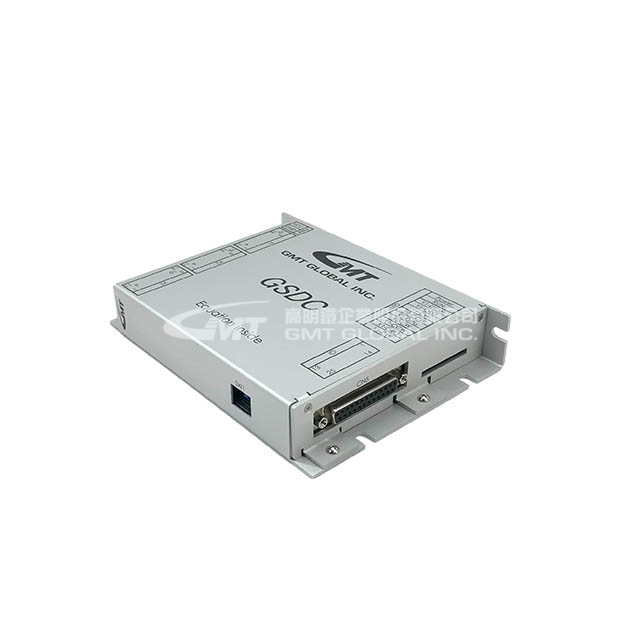

GSDC

★ GSDC XXY drive and controller system for alignment stage：Built-in contra-position algorithm, RS485/RS232 Communication interface
★ GSDC SPL SPL ball screw + drive and controller system for Spline：Built-in coupling/decoupling algorithm, Simple man-machine interface

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.11.3

Model No.		GSDC
Specification	Input voltage	DC 24V ± 10%
	Input current	6A
	Rated output current (each axis)	1.6A
	Target motor to be controlled	Two-phases step motor
	Communication method	RS232 / RS485 (selected through the DIP switch.)
	Control mode	Position control
	LED display	Power Operative Limit switch “HOME” Switch
	Dimension	163 (W) x 119 (D) x 29 (H) (mm)
	Weight	325 ± 5% (g)
	Operating temperature / humidity	0 ~ 85°C，85%RH以下 (No Condensation)
	Air	Prevent corrosive gas
