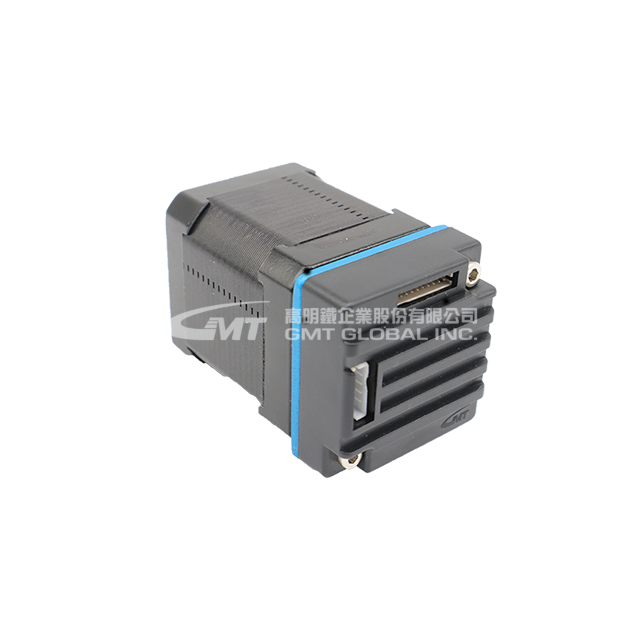

GST-BTD

★ Rear driver of the motor ： effectively saves the valuable room needed by the switchboard.
★ RS485 control interface ： PC and PLC base go together easily to reduce user requirements.
★ Internal magnetic encoder ： automatic out-of-step compensation enhances the movement positioning precision.
★ Multi-axis cascade ： Standard ModBus RTU agreement to easily control 16 axes.
★ Run and stop current setup ： it enhances the running torque of the motor and reduces power consumption while stopping or waiting at the same time.
★ Servo-like motor I/O ： Ready, Alarm, In-Position; the upper system can detect the status of the driver.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2022.11.3

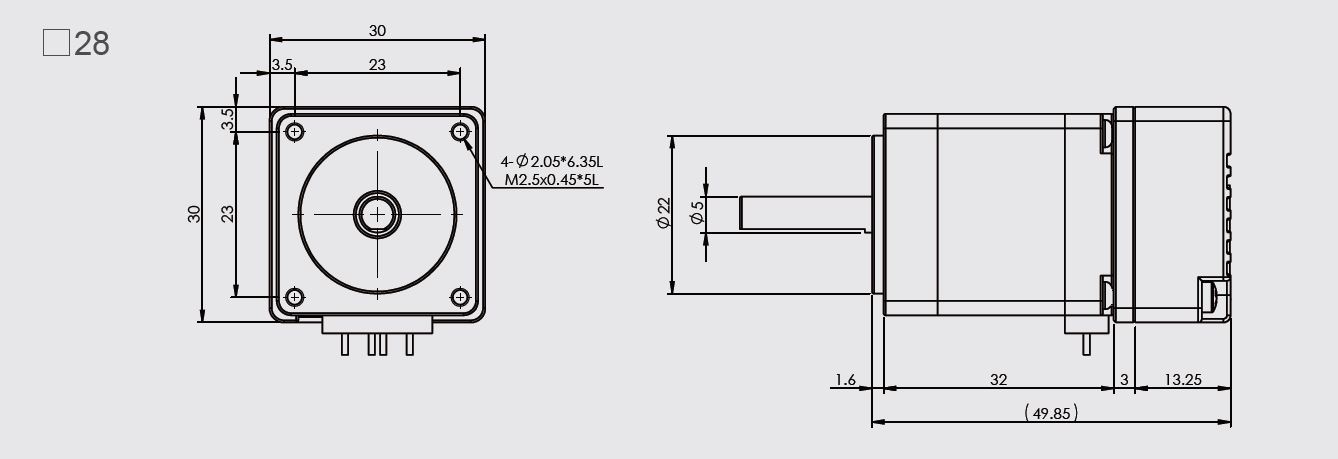

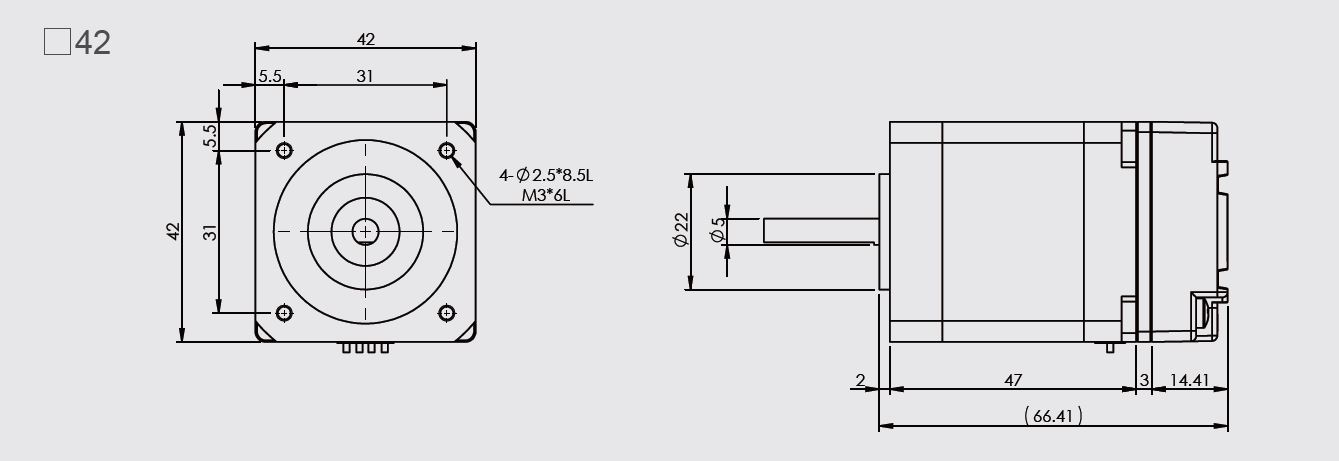

Model No.		GST-BTD28MB-24CN	GST-BTD42MB-24CN
Specification	Compatible GMT Motor	☐ 20 MS Series ☐ 28 MS Series	☐ 35 MS Series ☐ 42 MS Series
	Input Power	DC 24V ± 10%	DC 24V ± 10%
	Max. Output Current	1A	2A
	Motor	2-Phase Stepper Motor
	Quadrant	4 - Quadrant Operation
	Drive Type	PWM Chopper Circuit
	Encoder Resolution	14 Bits，Built-in Magentic Encoder
	Input Interface (Pulse / Direction)	Limit ± / Origin
	Output Interface	Alarm / Ready / Arrival
	Device ID	1 ~ 31，Only Support RS485
	Communication Interface	RS485 RTU
	Control Mode	Position & Speed Control Could switch around Open-loop & Close-loop

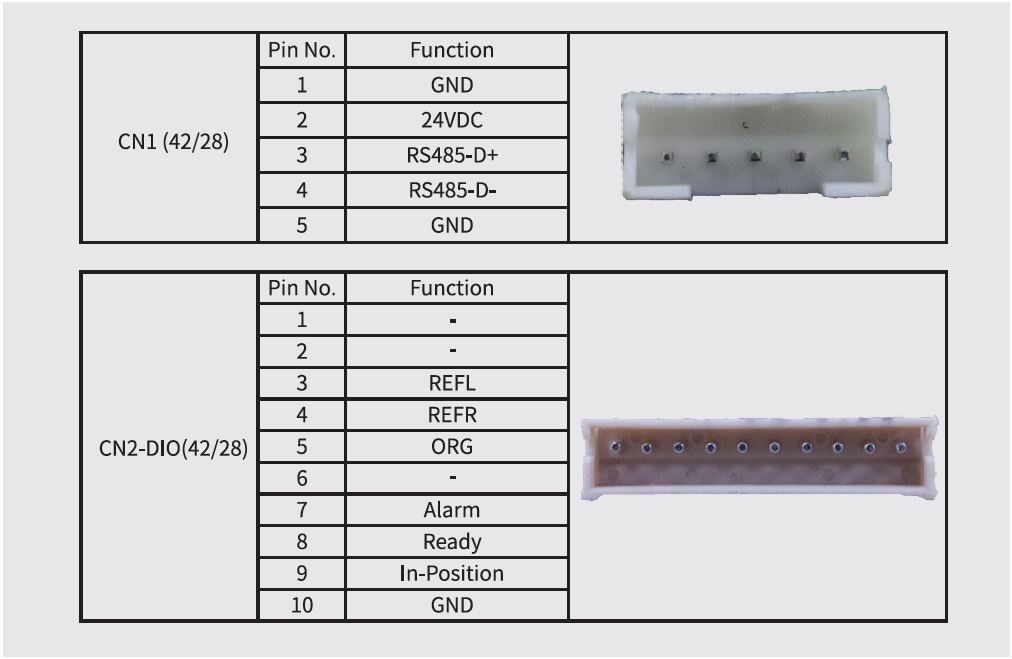

Connector	Power Communication	5 Pole Pitch 2.0 mm
	D丨O	10 Pole Pitch 1.5mm
