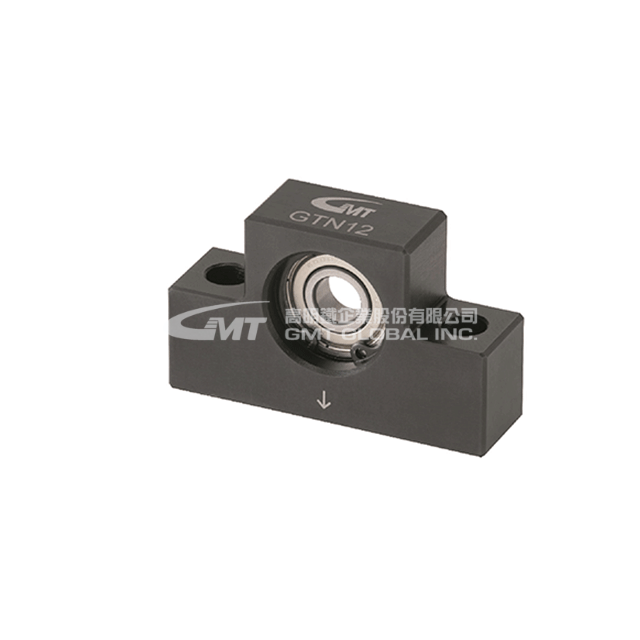

<span style="font-size: 12pt;">★Ball Screw Support Unit-Support Side(Rectangle Design)</span> <br /><span style="font-size: 12pt;">★Grade-Standard type</span> <br /><span style="font-size: 12pt;">★(Using Angular Contact Ball Bearings)</span> <p style="text-align: left;"><strong><span style="color: #e03e2d;">★This picture is the product GTN12-B">
Update:2022.04.21
★ Material
Model No | Material | ||
GTN□□–SB | S50C/染黑 | ||
GTN□□–SN | S50C/无电解镍 |
Model No | Shaft Dia. (mm) | Surface finish | ||||
Standrad | - | - | ||||
GTN25-S口 | 25 | AF |
Selection Notes |
[Model]:Pick up the model according to assembly method. Assembly: 1. Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。 2. Suspension and spindle mount:GFK、GFF、GRWE、GUR、GTR。 [Size]:Decide the size according to the ballscrew shaft O.D., and the center height. [Grade]:Standard and economic types for options. [Surface Finish]:Black dyed - Regular environment use, low humidity. Nickel plating - Clean room use. [Bearing category]:Available Japanese series and Taiwanese series. |
