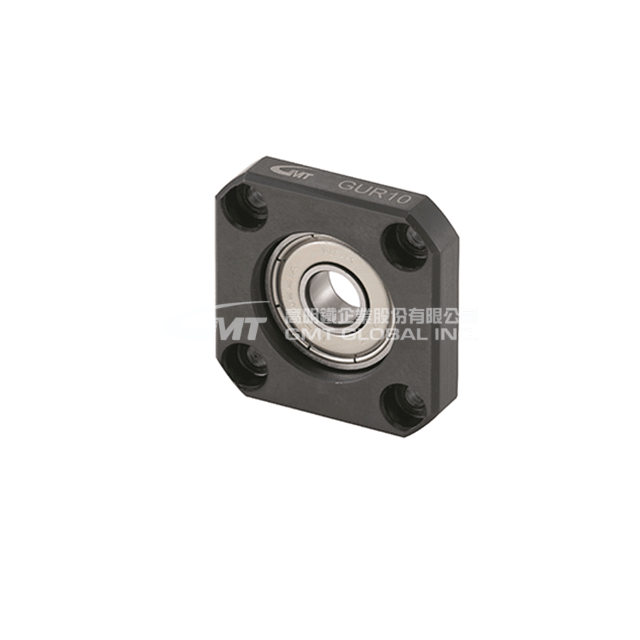

<span style="font-size: 12pt;">★ Ball Screw Support Unit-Support Side(Round Type)<br/> <br /><span style="font-size: 12pt;">★ Grade-Standard type<br/> <br /><span style="font-size: 12pt;">★ (Using Angular Contact Ball Bearings) <p class="UpdateTxt" style="text-align: left;"><span style="color: #e03e2d;"><strong>★This product image is GUR12-B</strong></span>">
Update:2022.04.21
★ Material
Model No | Material | ||
GUR□□–SB | S50C/染黑 | ||
GUR□□–SN | S50C/无电解镍 |
Model No | Shaft Dia. (mm) | Surface finish | ||||
Standrad | - | - | ||||
GUR15-S口 | 15 | FF |
Selection Notes |
[Model]:Pick up the model according to assembly method. Assembly: 1. Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。 2. Suspension and spindle mount:GFK、GFF、GRWE、GUR、GTR。 [Size]:Decide the size according to the ballscrew shaft O.D., and the center height. [Grade]:Standard and economic types for options. [Surface Finish]:Black dyed - Regular environment use, low humidity. Nickel plating - Clean room use. [Bearing category]:Available Japanese series and Taiwanese series. |
