M5E-2000B-L

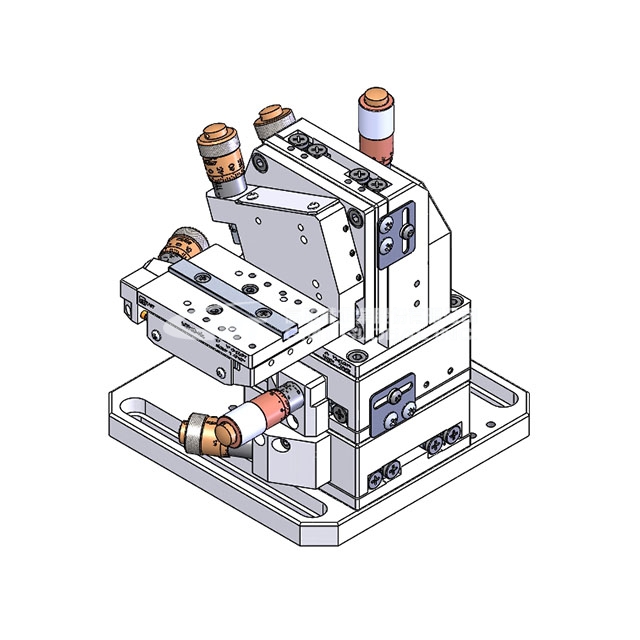

★ It is consisted XYZ manual positioning stage and a tilt stage (θx, θy). It is a 5-axis high resolution positioning stage to be designed to perform the single-fiber positioning.
★ Available potion with ordering code - M5E-2000B-L-[XYZ module: MXYZ60-ACSL、Tilt module: MTR60-45L]

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Contact Us

Update：2022.7.20

Model No.			M5E-2000B-L
Specification	Axis		X	Y	Z	θx	θy
	Travel Stroke	Rough Tuning	± 6.5 mm	± 6.5 mm	± 6.5 mm	± 3 °	± 3 °
		Fine Tuning	± 0.3 mm	± 0.3 mm	± 0.3 mm
	Accuracy	Rough Tuning	10 μm	10 μm	10 μm	≒ 29.3" / Vernier	≒ 27.8" / Vernier
		Fine Tuning	0.5 μm	0.5 μm	0.5 μm
