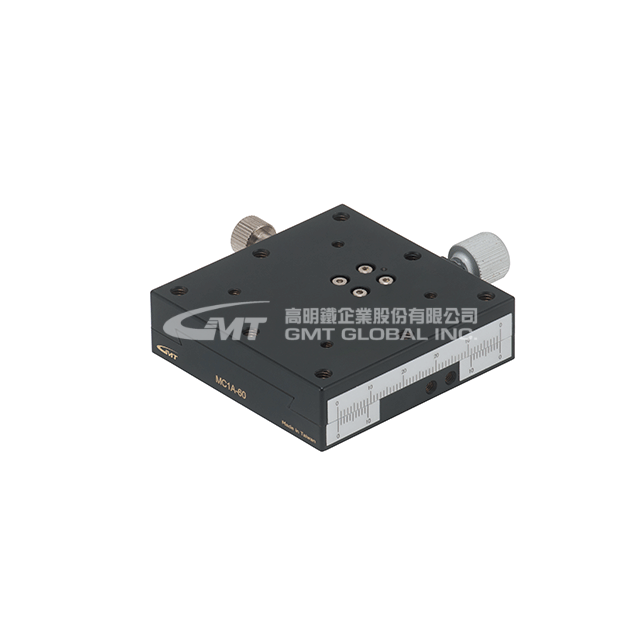

★This product pic. shows as MC1A-60.
Update:2022.4.25
Model No.
MC1A-46L
MC1A-46C
MC1A-46S
Specification
Table Size (mm)
40 X 60
Axis
X-Axis
Feed Position
Central
Travel Stroke (mm)
± 21
Micrometer Minimum Reading
0.1 mm / Veriner
Straightness Accuracy (μm)
Dynamic Straightness (μm)
Dynamic Parallelism (μm)
Allowable Loading (Kgf)
3
Horizontal:4
Vertical:2
Weight (Kg)
0.14
0.19
Material
Aluminum Alloy
Surface Finish
Black Anodized
