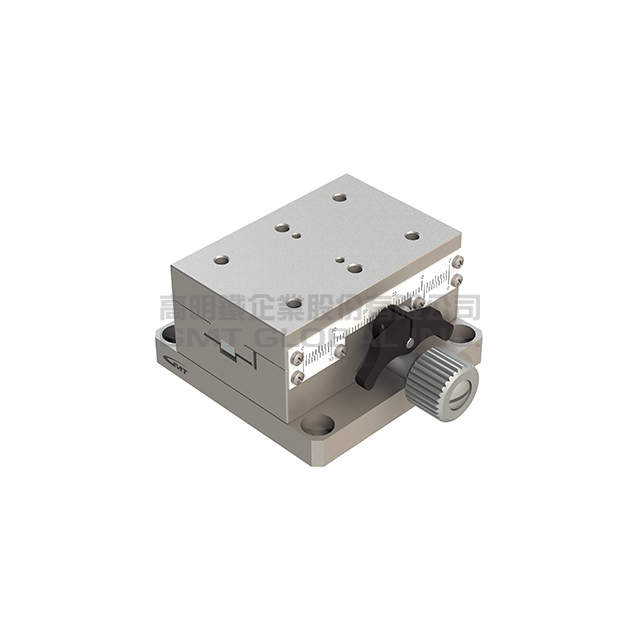

    MC1B-60F


    X axis manual stage
    Single axis-X axis
    Travel stroke : ±21 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Rack and pinion. It is suitable for high speed mass feed.
    ★ Material- Carbon Steel
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update：2024.2.23

    Model No.

    MC1B-60F

    Specification

    Table Size (mm)

    40 X 60

    Travel Stroke (mm)

    ± 21

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    		40

    Allowable Loading (Kgf)

    20

    Weight (Kg)

    0.56

    Material

    Carbon Steel

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
