    MC1C-50


    X axis manual stage
    Single axis-X axis
    Single slide block
    Table size : 50 (mm)
    Travel stroke : ±15 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Rack and pinion.It is suitable for high speed mass feed.
    ★ Material- Aluminum Alloy

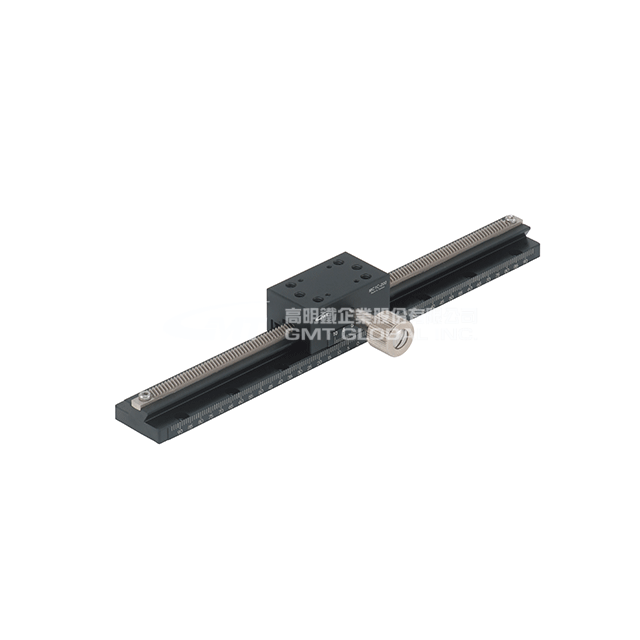

    This product pic. shows as MC1C-200.

    SKU: MC1C-50
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.27

    Model No.

    MC1C-50

    Specification

    Table Size (mm)

    50

    Travel Stroke (mm)

    ± 15

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    3

    Weight (Kg)

    0.12

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
