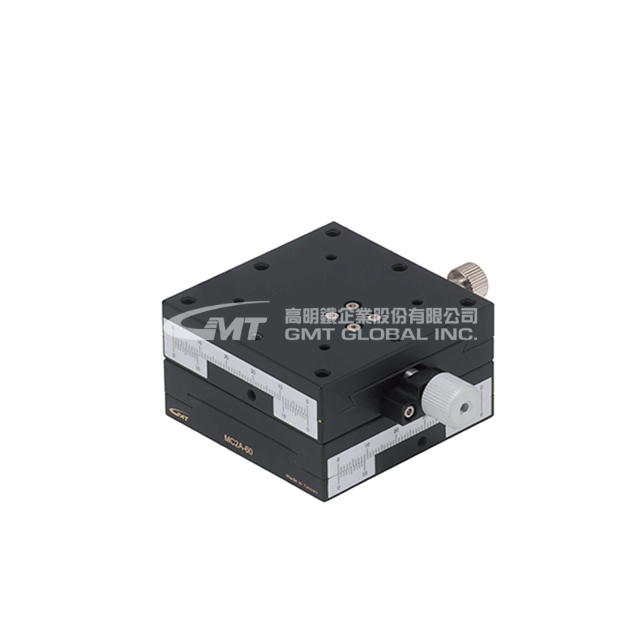

<span style="font-size: 12pt;">XY axis manual stage</span> <br /><span style="font-size: 12pt;">Dual axes-XY axis</span> <br /><span style="font-size: 12pt;">Table size : Please refer to the specifications.</span> <br /><span style="font-size: 12pt;">Travel stroke : ±9 (mm)</span> <br /><span style="font-size: 12pt;">Feed position-Central feeding</span> ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke. ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning. ★ Material- Brass Alloy">
Update:2022.4.26
Model No. | MC2A-60 | |
Specification | Table Size (mm) | 60 X 60 |
Travel Stroke (mm) | ± 9 | |
Micrometer Minimum Reading | 0.1 mm / Veriner | |
Straightness Accuracy (μm) | 30 | |
Allowable Loading (Kgf) | 3.4 | |
Weight (Kg) | 1.2 | |
Material | Stage Body:Brass Alloy Feeding Screw Knob:Aluminum | |
Surface Finish | Black Fluororesin Finished |
Feed Position |
Characterisitc of Different Guiding Type |
The Main Feeding Mode of Mini Stages |
