MC3B-40

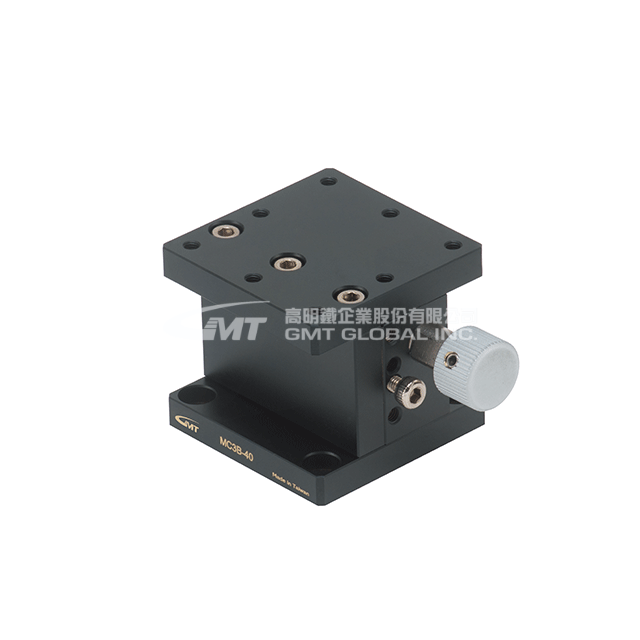

Z axis manual stage - Horizontal type
Single axis-Z axis - Horizontal type
Travel stroke : ±5 (mm)
★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
★ Transmission Parts- Rack and pinion. It is suitable for high speed mass feed.
★ Material-Brass Alloy

SKU: MC3B-40

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.5.4

Model No.		MC3B-40
Specification	Table Size (mm)	40 X 40
	Travel Stroke (mm)	± 5
	Movement Per Knob Rotation (mm)	≒ 13
	Micrometer Minimum Reading	0.1 mm / Veriner
	Straightness Accuracy (μm)	30
	Allowable Loading (Kgf)	1
	Weight (Kg)	0.12
	Material	Brass Alloy
	Surface Finish	Black Fluororesin Finished

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MC3B-40
