    MC3C-70


    Z axis manual stage
    Single axis-Z axis
    Single slide block
    Length L : 70 (mm)
    Travel stroke : ±25 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Rack and pinion.It is suitable for high speed mass feed.
    ★ Available combined with MC1B、MC2B、MC1C
    ★ Material- Aluminum Alloy

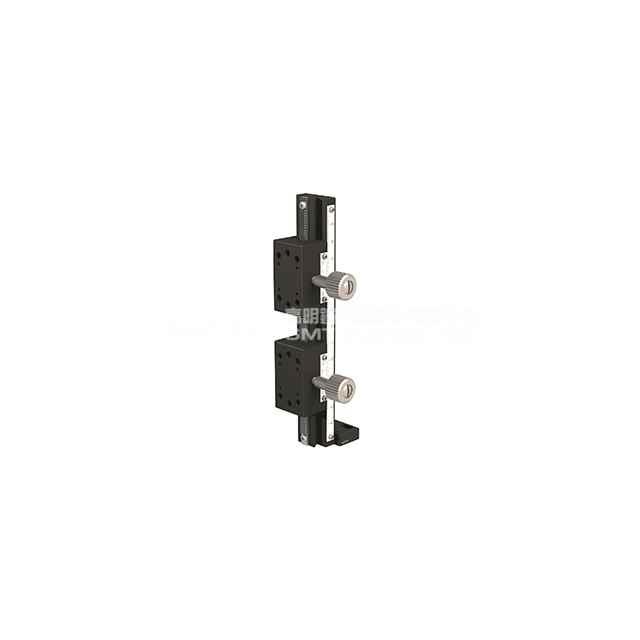

    This product pic. shows as MC3C-150-2.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.29

    Model No.

    MC3C-70

    Specification

    Table Size (mm)

    70

    Travel Stroke (mm)

    ± 25

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    1.5

    Weight (Kg)

    0.135

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Remark

    Single Slide Block

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
