    MC4A-49S


    Z axis manual stage
    Single axis-Z axis
    Travel stroke : ±35 (mm)
    Feed position-Central feeding
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
    ★ Material- Aluminum Alloy

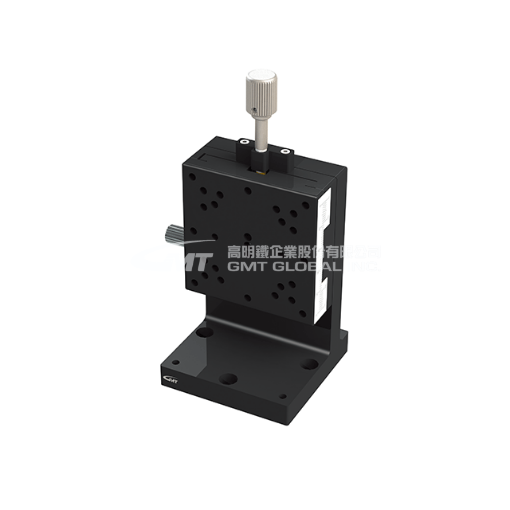

    This product pic. shows as MC4A-A60.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.26

    Model No.

    MC4A-49S

    Specification

    Table Size (mm)

    40 X 90

    Axis

    Z-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 35

    Movement Per Knob Rotation (mm)

    4.2

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    2

    Weight (Kg)

    0.46

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
