    Sorry - this product is no longer available

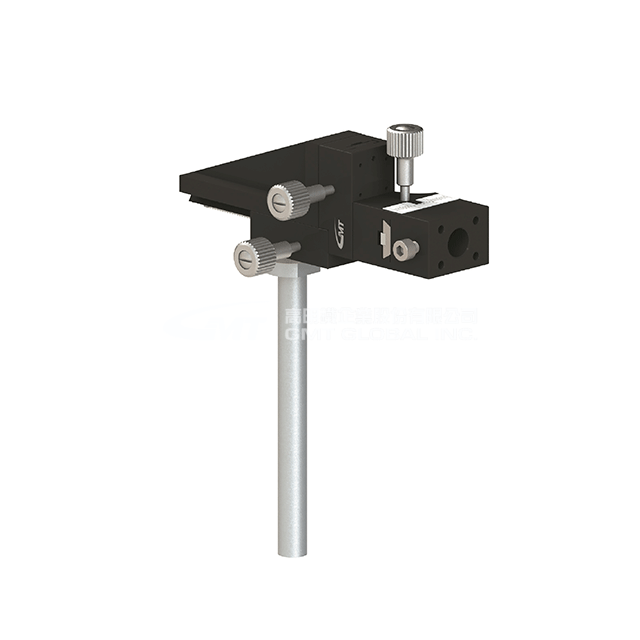

    MC6B-35LG


    XYZ axis manual stage
    Multiple axes-XYZ axis
    Travel stroke : X axis 20;Y axis 30;Z axis 60 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Rack and pinion. It is suitable for high speed mass feed.
    ★ Material- Aluminum Alloy
    SKU: MC6B-35LG
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.4

    Model No.

    MC6B-35LG

    Specification

    Axis / Travel Stroke (mm)

    X-Axis:20

    Axis / Travel Stroke (mm)

    Y-Axis:30

    Axis / Travel Stroke (mm)

    Z-Axis:60

    Movement Per Knob Rotation (mm)

    18

    Allowable Loading (Kgf)

    2

    Weight (Kg)

    0.81

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
