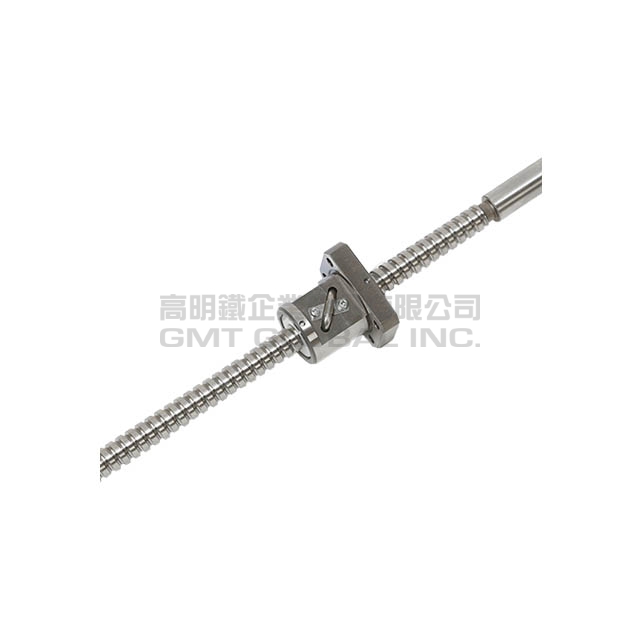

Medium Ball Screw-Flanged Rectangular-BSM0802-S

★Standard spec、Competitive pricing、Fast delivery
★High precision, multiple leads available
★Installation dimension of ball nut could be fit in with other major manufacturers

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.10.20

Spec	Ground Spec				Ground Spec - Machining less to the end shaft
Nominal Dia (mm)	8				8
Ball Dia (mm)	1.5875				1.5875
Lead (mm)	2				2
B.C.D (mm)	8.3				8.3
Thread Direction	Right				Right
Circuits	2.5 Returns x 1 Circuit				2.5 Returns x 1 Circuit
Accuracy	C3X	C3V	C5X	C5V	C5X	C5V
Axial Backlash	0	-0.002	0	-0.002	0	-0.002
Dynamic LoadCa(N)	1140		1800		1800
Static LoadCoa(N)	1430		2850		2850

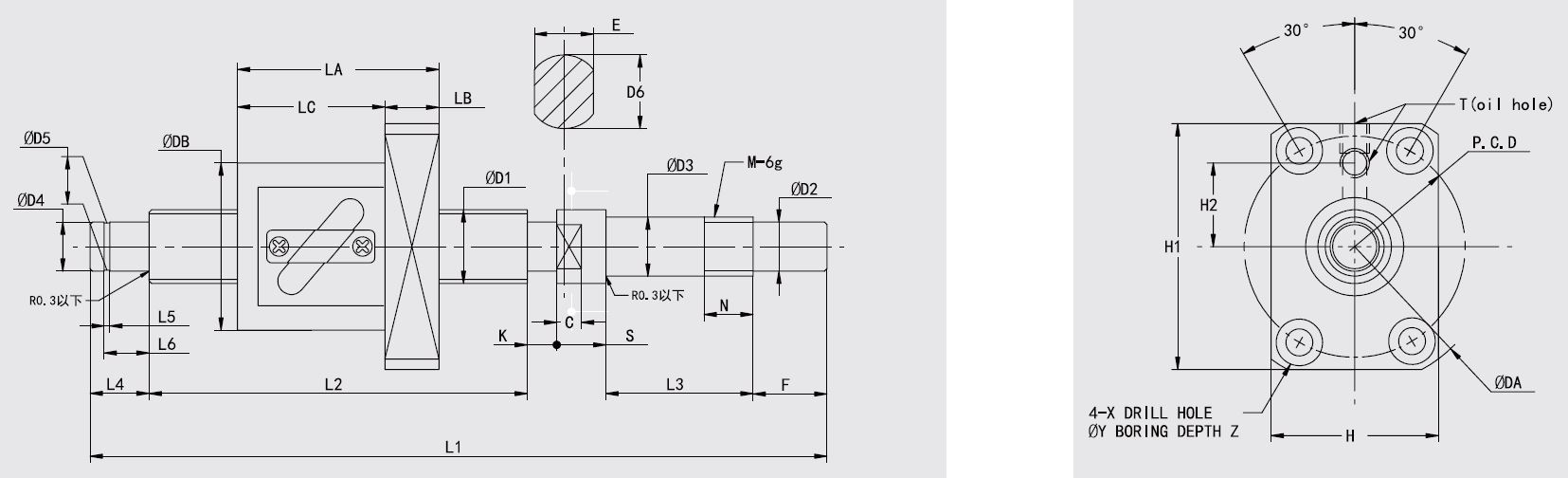

Ground Spec：

BSM0802B1-GC□□-S
Ball Screw Spec							Ball Nut Spec
Accuracy	C3	C3	C3	C5	C5	C5	Ball Nut Spec LA	32
Effective Stroke	70	100	150	70	100	150	Ball Nut Spec LB	10
Ball Screw Spec L1	168	198	248	168	198	248	Ball Nut Spec LC	22
Ball Screw Spec L2	110	140	190	110	140	190	Ball Nut Spec DA	43
Ball Screw Spec L3	27	27	27	27	27	27	Ball Nut Spec DB	20
Ball Screw Spec L4	9	9	9	9	9	9	Ball Nut Spec H	27
Ball Screw Spec L5	0.8	0.8	0.8	0.8	0.8	0.8	Ball Nut Spec H1	39
Ball Screw Spec L6	6.8	6.8	6.8	6.8	6.8	6.8	Ball Nut Spec H2	12
Ball Screw Spec F	10	10	10	10	10	10	Ball Nut Spec PCD	33
Ball Screw Spec D1	8	8	8	8	8	8	Ball Nut Spec X	4.5
Ball Screw Spec D2	6	6	6	6	6	6	Ball Nut Spec Y	8
Ball Screw Spec D3	8	8	8	8	8	8	Ball Nut Spec Z	4.4
Ball Screw Spec D4	6	6	6	6	6	6	Ball Nut Spec T	M6x1.0
Ball Screw Spec D5	5.7	5.7	5.7	5.7	5.7	5.7
Ball Screw Spec D6	11.5	11.5	11.5	11.5	11.5	11.5
Ball Screw Spec E	10	10	10	10	10	10
Ball Screw Spec S	8	8	8	8	8	8
Ball Screw Spec C	4	4	4	4	4	4
Ball Screw Spec K	4	4	4	4	4	4
Ball Screw Spec N	9	9	9	9	9	9
Ball Screw Spec M	M8x1.0	M8x1.0	M8x1.0	M8x1.0	M8x1.0	M8x1.0

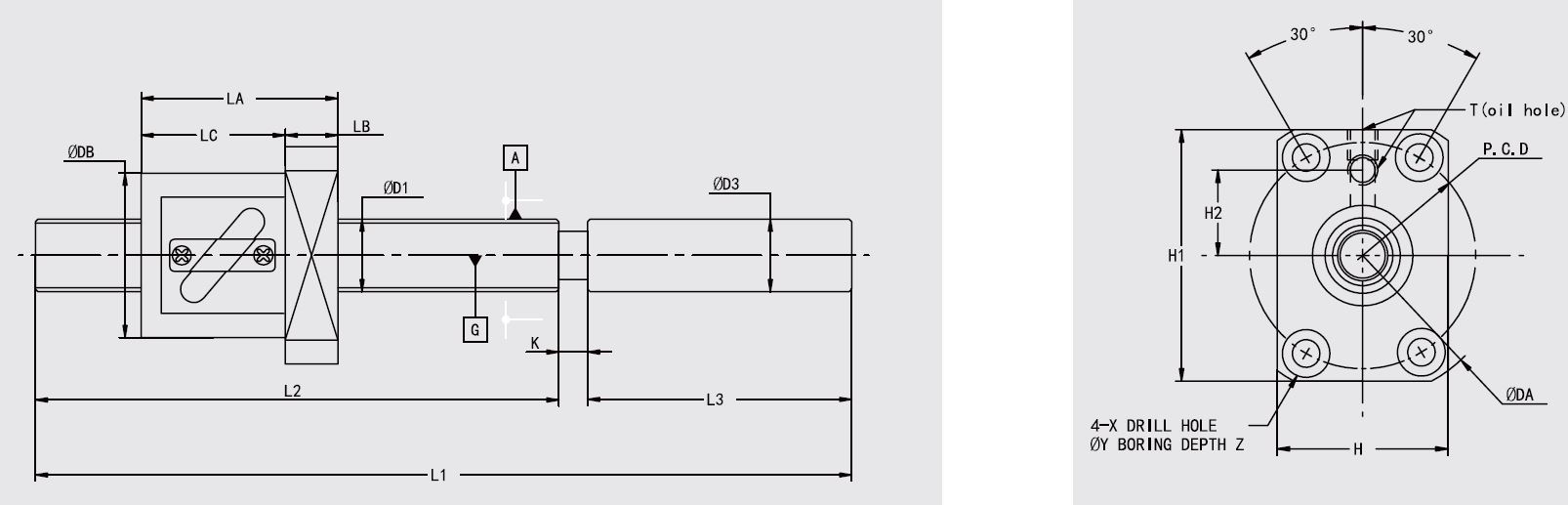

Ground Spec - Machining less to the end shaft：

BSM0802B1-GC□□-S
Ball Screw Spec			Ball Nut Spec
Accuracy	C5	C5	Ball Nut Spec LA	32
Effective Stroke	70	130	Ball Nut Spec LB	10
Ball Screw Spec L1	160	220	Ball Nut Spec LC	22
Ball Screw Spec L2	111	171	Ball Nut Spec DA	43
Ball Screw Spec L3	45	45	Ball Nut Spec DB	20
Ball Screw Spec D1	8	8	Ball Nut Spec H	27
Ball Screw Spec D3	12	12	Ball Nut Spec H1	39
			Ball Nut Spec H2	12
			Ball Nut Spec PCD	33
			Ball Nut Spec X	4.5
			Ball Nut Spec Y	8
			Ball Nut Spec Z	4.4
			Ball Nut Spec T	M6x1.0
