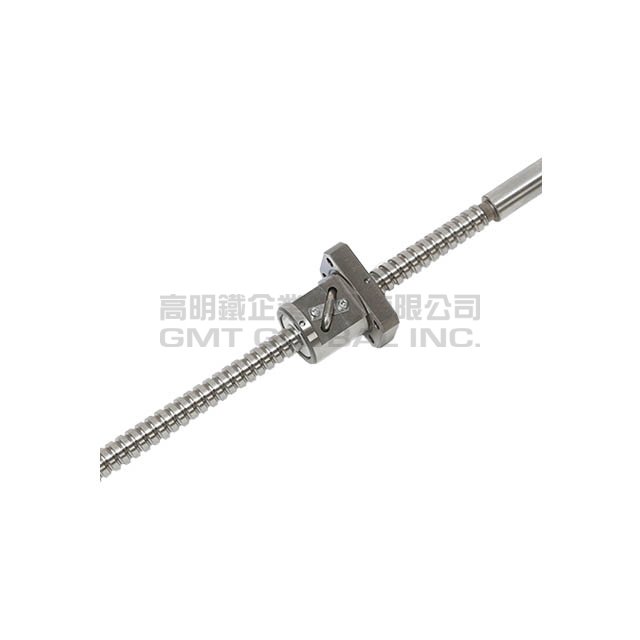

Medium Ball Screw-Flanged Rectangular-BSM1004-S

★Standard spec、Competitive pricing、Fast delivery
★High precision, multiple leads available
★Installation dimension of ball nut could be fit in with other major manufacturers

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.10.20

Spec	Ground Spec				Ground Spec - Machining less to the end shaft
Nominal Dia (mm)	10				10
Ball Dia (mm)	2				2
Lead (mm)	4				4
B.C.D (mm)	10.3				10.3
Thread Direction	Right				Right
Circuits	2.5 Returns x 1 Circuit				2.5 Returns x 1 Circuit
Accuracy	C3X	C3V	C5X	C5V	C5X	C5V
Axial Backlash	0	-0.002	0	-0.002	0	-0.002
Dynamic LoadCa(N)	1700		2750		2750
Static LoadCoa(N)	2250		4450		4450

Ground Spec：

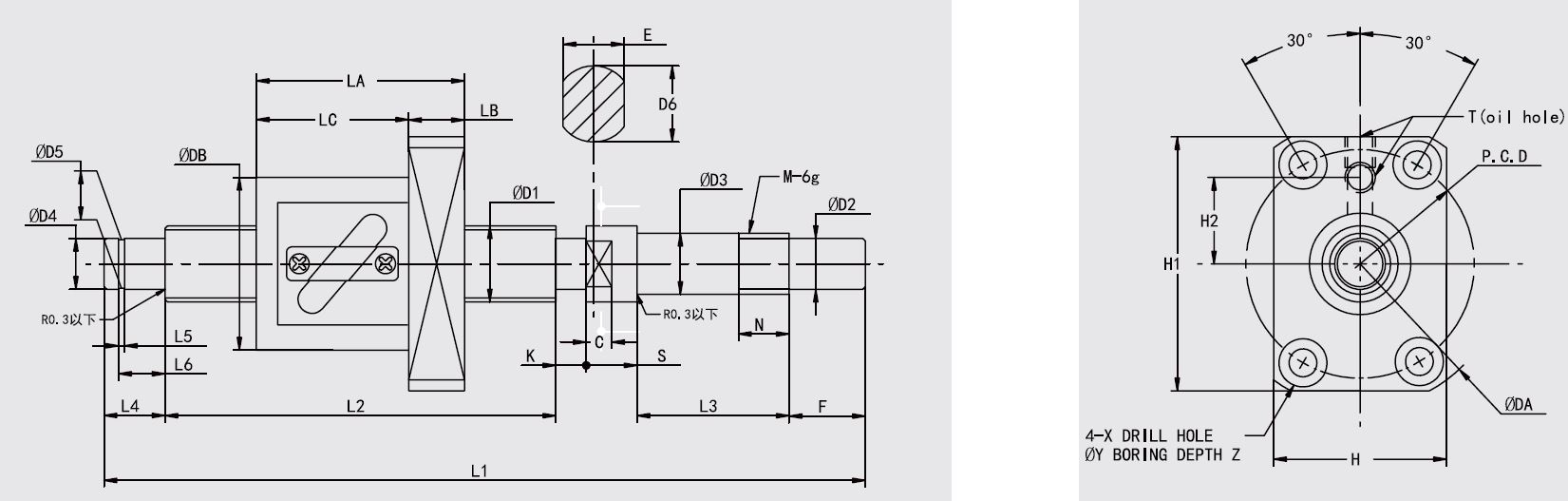

BSM1004B1-GC□□-S
Ball Screw Spec							Ball Nut Spec
Accuracy	C3	C3	C3	C5	C5	C5	Ball Nut Spec LA	34
Effective Stroke	50	150	250	50	150	250	Ball Nut Spec LB	10
Ball Screw Spec L1	180	280	380	180	280	380	Ball Nut Spec LC	24
Ball Screw Spec L2	110	210	310	110	210	310	Ball Nut Spec DA	46
Ball Screw Spec L3	30	30	30	30	30	30	Ball Nut Spec DB	26
Ball Screw Spec L4	10	10	10	10	10	10	Ball Nut Spec H	28
Ball Screw Spec L5	0.9	0.9	0.9	0.9	0.9	0.9	Ball Nut Spec H1	42
Ball Screw Spec L6	7.9	7.9	7.9	7.9	7.9	7.9	Ball Nut Spec H2	14
Ball Screw Spec F	15	15	15	15	15	15	Ball Nut Spec PCD	36
Ball Screw Spec D1	10	10	10	10	10	10	Ball Nut Spec X	4.5
Ball Screw Spec D2	8	8	8	8	8	8	Ball Nut Spec Y	8
Ball Screw Spec D3	10	10	10	10	10	10	Ball Nut Spec Z	4.4
Ball Screw Spec D4	8	8	8	8	8	8	Ball Nut Spec T	M6x1.0
Ball Screw Spec D5	7.6	7.6	7.6	7.6	7.6	7.6
Ball Screw Spec D6	14	14	14	14	14	14
Ball Screw Spec E	12	12	12	12	12	12
Ball Screw Spec S	10	10	10	10	10	10
Ball Screw Spec C	5	5	5	5	5	5
Ball Screw Spec K	5	5	5	5	5	5
Ball Screw Spec N	10	10	10	10	10	10
Ball Screw Spec M	M10x1.0	M10x1.0	M10x1.0	M10x1.0	M10x1.0	M10x1.0

Ground Spec - Machining less to the end shaft：

BSM1004B1-GC□□-S
Ball Screw Spec			Ball Nut Spec
Accuracy	C5	C5	Ball Nut Spec LA	34
Effective Stroke	140	380	Ball Nut Spec LB	10
Ball Screw Spec L1	250	455	Ball Nut Spec LC	24
Ball Screw Spec L2	190	395	Ball Nut Spec DA	46
Ball Screw Spec L3	55	55	Ball Nut Spec DB	26
Ball Screw Spec D1	10	10	Ball Nut Spec H	28
Ball Screw Spec D3	14	14	Ball Nut Spec H1	42
			Ball Nut Spec H2	14
			Ball Nut Spec PCD	36
			Ball Nut Spec X	4.5
			Ball Nut Spec Y	8
			Ball Nut Spec Z	4.4
			Ball Nut Spec T	M6x1.0
