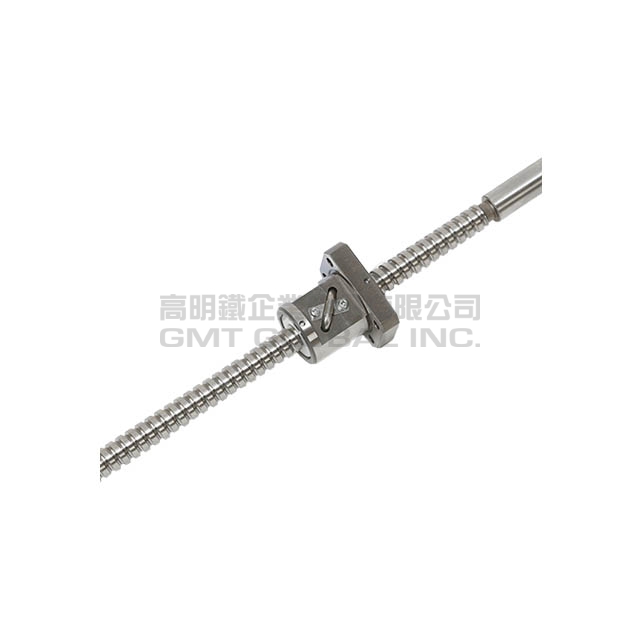

    Medium Ball Screw-Flanged Rectangular-BSM1202-S


    ★Standard spec、Competitive pricing、Fast delivery
    ★High precision, multiple leads available
    ★Installation dimension of ball nut could be fit in with other major manufacturers
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.10.20

    Spec

    Ground Spec

    Ground Spec - Machining less to the end shaft

    Nominal Dia (mm)

    1212

    Ball Dia (mm)

    1.58751.5875

    Lead (mm)

    22

    B.C.D (mm)

    12.3

    12.3

    Thread Direction

    RightRight

    Circuits

    2.5 Returns x 1 Circuit2.5 Returns x 1 Circuit

    Accuracy

    C3XC3VC5XC5VC5XC5V

    Axial Backlash

    0-0.0020-0.0020-0.002

    Dynamic LoadCa(N)

    140022002200

    Static LoadCoa(N)

    220043504350



    Ground Spec:

    BSM1202B1-GC□□-S

    Ball Screw Spec

    Ball Nut Spec

    Accuracy

    C3C3C5C5

    Ball Nut Spec LA

    30

    Effective Stroke

    5015050150

    Ball Nut Spec LB

    10

    Ball Screw Spec L1

    180280180280

    Ball Nut Spec LC

    20

    Ball Screw Spec L2

    112212112212

    Ball Nut Spec DA

    46

    Ball Screw Spec L3

    30303030

    Ball Nut Spec DB

    25

    Ball Screw Spec L4

    10101010

    Ball Nut Spec H

    28

    Ball Screw Spec L5

    0.90.90.90.9

    Ball Nut Spec H1

    42

    Ball Screw Spec L6

    7.97.97.97.9

    Ball Nut Spec H2

    14

    Ball Screw Spec F

    15151515

    Ball Nut Spec PCD

    36

    Ball Screw Spec D1

    12121212

    Ball Nut Spec X

    4.5

    Ball Screw Spec D2

    8888

    Ball Nut Spec Y

    8

    Ball Screw Spec D3

    10101010

    Ball Nut Spec Z

    4.4

    Ball Screw Spec D4

    8888

    Ball Nut Spec T

    M6x1.0

    Ball Screw Spec D5

    7.67.67.67.6

    Ball Screw Spec D6

    14141414

    Ball Screw Spec E

    12121212

    Ball Screw Spec S

    10101010

    Ball Screw Spec C

    5555

    Ball Screw Spec K

    3333

    Ball Screw Spec N

    10101010

    Ball Screw Spec M

    M10x1.0M10x1.0M10x1.0M10x1.0



    Ground Spec - Machining less to the end shaft:

    BSM1202B1-GC□□-S

    Ball Screw Spec

    Ball Nut Spec

    Accuracy

    C5C5

    Ball Nut Spec LA

    30

    Effective Stroke

    150300

    Ball Nut Spec LB

    10

    Ball Screw Spec L1

    250400

    Ball Nut Spec LC

    20

    Ball Screw Spec L2

    192342

    Ball Nut Spec DA

    46

    Ball Screw Spec L3

    5555

    Ball Nut Spec DB

    25

    Ball Screw Spec D1

    1212

    Ball Nut Spec H

    28

    Ball Screw Spec D3

    1414

    Ball Nut Spec H1

    42


    Ball Nut Spec H2

    14


    Ball Nut Spec PCD

    36


    Ball Nut Spec X

    4.5


    Ball Nut Spec Y

    8


    Ball Nut Spec Z

    4.4


    Ball Nut Spec T

    M6x1.0
