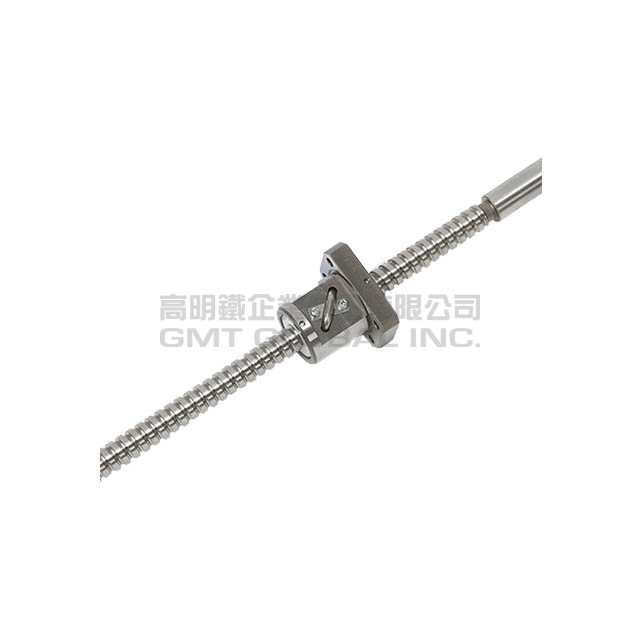

Medium Ball Screw-Flanged Rectangular-BSM1504-S

★Standard spec、Competitive pricing、Fast delivery
★High precision, multiple leads available
★Installation dimension of ball nut could be fit in with other major manufacturers

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.10.23

Spec	Ground Spec
Nominal Dia (mm)	15
Ball Dia (mm)	2.3812
Lead (mm)	4
B.C.D (mm)	15.3
Thread Direction	Right
Circuits	2.5 Returns x 1 Circuit
Accuracy	C3X	C3V	C5X	C5V
Axial Backlash	0	-0.002	0	-0.002
Dynamic LoadCa(N)	2800		4450
Static LoadCoa(N)	3900		7850

Ground Spec：

BSM1504B1-GC□□-S
Ball Screw Spec							Ball Nut Spec
Accuracy	C3	C3	C3	C5	C5	C5	Ball Nut Spec LA	37
Effective Stroke	100	150	250	100	150	250	Ball Nut Spec LB	10
Ball Screw Spec L1	271	321	421	271	321	421	Ball Nut Spec LC	27
Ball Screw Spec L2	189	239	339	189	239	339	Ball Nut Spec DA	56
Ball Screw Spec L3	30	30	30	30	30	30	Ball Nut Spec DB	32
Ball Screw Spec L4	22	22	22	22	22	22	Ball Nut Spec H	32
Ball Screw Spec L5	1.15	1.15	1.15	1.15	1.15	1.15	Ball Nut Spec H1	48
Ball Screw Spec L6	9.15	9.15	9.15	9.15	9.15	9.15	Ball Nut Spec H2	16
Ball Screw Spec F	15	15	15	15	15	15	Ball Nut Spec PCD	43
Ball Screw Spec D1	15	15	15	15	15	15	Ball Nut Spec X	5.5
Ball Screw Spec D2	10	10	10	10	10	10	Ball Nut Spec Y	9.5
Ball Screw Spec D3	12	12	12	12	12	12	Ball Nut Spec Z	5.4
Ball Screw Spec D4	10	10	10	10	10	10	Ball Nut Spec T	M6x1.0
Ball Screw Spec D5	9.6	9.6	9.6	9.6	9.6	9.6
Ball Screw Spec D6	15	15	15	15	15	15
Ball Screw Spec E	12	12	12	12	12	12
Ball Screw Spec S	10	10	10	10	10	10
Ball Screw Spec C	5	5	5	5	5	5
Ball Screw Spec K	5	5	5	5	5	5
Ball Screw Spec N	10	10	10	10	10	10
Ball Screw Spec M	M12x1.0	M12x1.0	M12x1.0	M12x1.0	M12x1.0	M12x1.0
