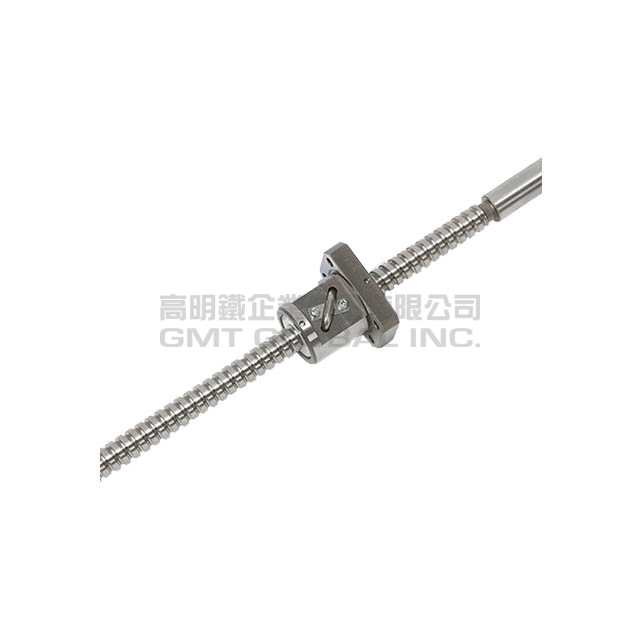

<span style="font-size: 12pt;">★Standard spec、Competitive pricing、Fast delivery</span> <br /><span style="font-size: 12pt;">★High precision, multiple leads available </span> <br /><span style="font-size: 12pt;">★Installation dimension of ball nut could be fit in with other major manufacturers</span>">
Update:2023.10.23
Spec | Ground Spec | Ground Spec - Machining less to the end shaft | ||
Nominal Dia (mm) | 20 | 20 | ||
Ball Dia (mm) | 3.175 | 3.175 | ||
Lead (mm) | 5 | 5 | ||
B.C.D (mm) | 20.5 | 20.5 | ||
Thread Direction | Right | Right | ||
Circuits | 2.5 Returns x 1 Circuit | 2.5 Returns x 1 Circuit | ||
Accuracy | C5X | C5V | C5X | C5V |
Axial Backlash | 0 | -0.002 | 0 | -0.002 |
Dynamic LoadCa(N) | 5200 | 8200 | ||
Static LoadCoa(N) | 8650 | 17300 |
Ground Spec:
BSM2005B1-GC□□-S | ||||||
Ball Screw Spec | Ball Nut Spec | |||||
Accuracy | C3 | C3 | C3 | C3 | Ball Nut Spec LA | 41 |
Effective Stroke | 200 | 300 | 400 | 500 | Ball Nut Spec LB | 11 |
Ball Screw Spec L1 | 399 | 499 | 599 | 699 | Ball Nut Spec LC | 30 |
Ball Screw Spec L2 | 294 | 394 | 494 | 594 | Ball Nut Spec DA | 67 |
Ball Screw Spec L3 | 40 | 40 | 40 | 40 | Ball Nut Spec DB | 44 |
Ball Screw Spec L4 | 25 | 25 | 25 | 25 | Ball Nut Spec H | 44 |
Ball Screw Spec L5 | 1.15 | 1.15 | 1.15 | 1.15 | Ball Nut Spec H1 | 60 |
Ball Screw Spec L6 | 10.15 | 10.15 | 10.15 | 10.15 | Ball Nut Spec H2 | 22 |
Ball Screw Spec F | 20 | 20 | 20 | 20 | Ball Nut Spec PCD | 55 |
Ball Screw Spec D1 | 20 | 20 | 20 | 20 | Ball Nut Spec X | 5.5 |
Ball Screw Spec D2 | 12 | 12 | 12 | 12 | Ball Nut Spec Y | 9.5 |
Ball Screw Spec D3 | 15 | 15 | 15 | 15 | Ball Nut Spec Z | 5.4 |
Ball Screw Spec D4 | 15 | 15 | 15 | 15 | Ball Nut Spec T | M6x1.0 |
Ball Screw Spec D5 | 14.3 | 14.3 | 14.3 | 14.3 | ||
Ball Screw Spec D6 | 20 | 20 | 20 | 20 | ||
Ball Screw Spec E | 17 | 17 | 17 | 17 | ||
Ball Screw Spec S | 15 | 15 | 15 | 15 | ||
Ball Screw Spec C | 5 | 5 | 5 | 5 | ||
Ball Screw Spec K | 5 | 5 | 5 | 5 | ||
Ball Screw Spec N | 15 | 15 | 15 | 15 | ||
Ball Screw Spec M | M15x1.0 | M15x1.0 | M15x1.0 | M15x1.0 |
BSM2005B1-GC□□-S | |||||
Ball Screw Spec | Ball Nut Spec | ||||
Accuracy | C5 | C5 | C5 | Ball Nut Spec LA | 41 |
Effective Stroke | 460 | 740 | 960 | Ball Nut Spec LB | 11 |
Ball Screw Spec L1 | 600 | 900 | 1100 | Ball Nut Spec LC | 30 |
Ball Screw Spec L2 | 520 | 820 | 1020 | Ball Nut Spec DA | 67 |
Ball Screw Spec L3 | 75 | 75 | 75 | Ball Nut Spec DB | 44 |
Ball Screw Spec D1 | 20 | 20 | 20 | Ball Nut Spec H | 44 |
Ball Screw Spec D3 | 20 | 20 | 20 | Ball Nut Spec H1 | 60 |
Ball Nut Spec H2 | 22 | ||||
Ball Nut Spec PCD | 55 | ||||
Ball Nut Spec X | 5.5 | ||||
Ball Nut Spec Y | 9.5 | ||||
Ball Nut Spec Z | 5.4 | ||||
Ball Nut Spec T | M6x1.0 |
