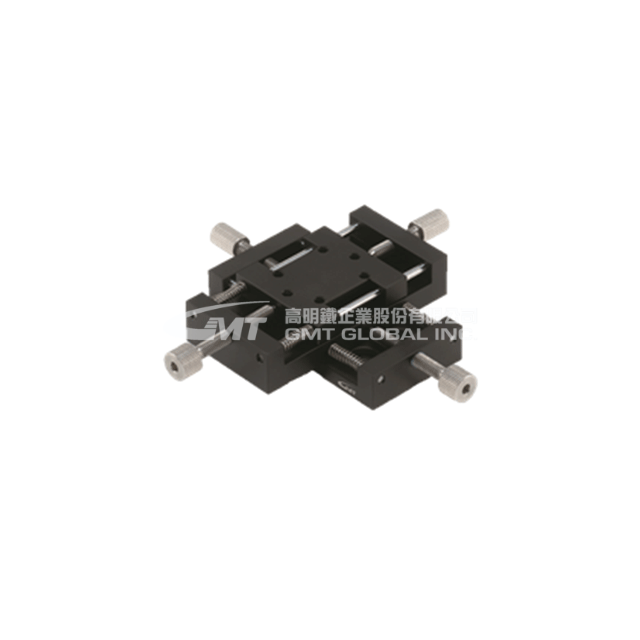

<span style="font-size: 12pt;">XY axis Manual stage – Simplified stage</span> <br /><span style="font-size: 12pt;">Dual axis-XY axis</span> <br /><span style="font-size: 12pt;">Table size : 20、25、40、60 (mm)</span> <br /><span style="font-size: 12pt;">Travel stroke : ±5、±7.5 (mm)</span> <br /><span style="font-size: 12pt;">★ Guide-Double bars with double springs-feeding screw type. To move stage table by push-and-press from screws, and to retrain gap produce by using springs tensile force. It is suitable for light loading and accuracy feeding application.</span> <br /><span style="font-size: 12pt;">★ Transmission parts – Feeding screw. It is suitable for simple precise tuning.</span> <br /><span style="font-size: 12pt;">★ Material-Aluminum Alloy</span>">
Update:2018.06.25
Model no. | Table size (mm) | Travel stroke (mm) | Minimum | Loading (kgf) | Weight (kg) |
MNG2E-20CL | 20x20 | ±5 | 0.5 | 1 | 0.038 |
MNG2E-25CL | 25x25 | ±5 | 0.5 | 1 | 0.055 |
MNG2E-40CL | 40x40 | ±7.5 | 0.5 | 1.5 | 0.202 |
MNG2E-60CL | 60x60 | ±7.5 | 0.5 | 1.5 | 0.358 |
The Main Feeding Mode of Mini Stages | |||
Main Feeding Mode | Characteristics | A Crcle Movement of Handle Rotation | Applied for Guiding Device |
●Suitable for high speed mass feed. ●Not suitable for precise positioning.
| 17~20 mm | ● Dovetail | |
Feeding Screw
| ● Use precise threadscrew pitch to proceed simple precise moving. | 0.25~1 mm | ● Dovetail ● Crossed roller ●Linear ball bearing |
Micrometer Head | ● Precise Reading Unit: 0.01mm is suitable for precise tuning. | 0.5 mm | ●Dovetail ● Crossed roller ● Linear ball bearing |
● Divided into rough moving (general feeding) and slight moving (micro feeding) use. ● It’s a special feeding device and a bit costly. ● Differential motion structure for slightly transmission. | Coarse tuning:0.5 mm Fine tuning:0.025mm | ●Linear ball bearing ● Crossed roller |
Feeding Position |
|
