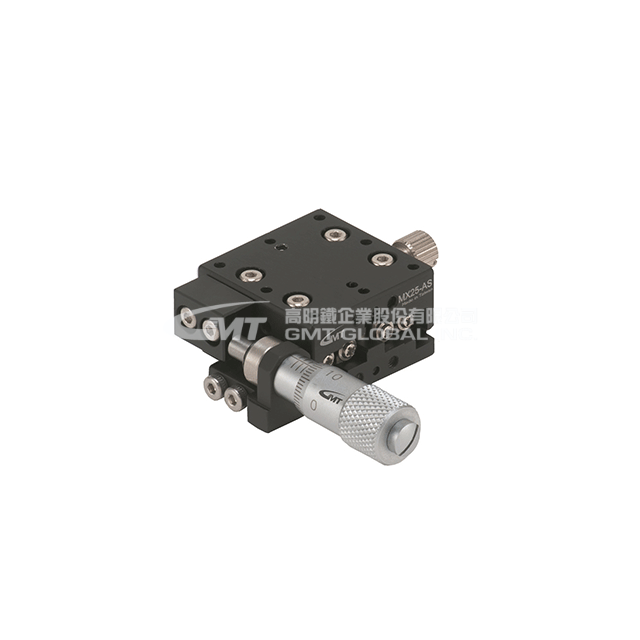

MX20-AS-18

X axis manual stage
Single axis-X axis
Table size : 20、25、30、40、50、60、70、80、100、120 (mm)
Travel stroke : ±3.2 ~±12.5 (mm)
Feed position-Slide feeding
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Aluminum alloy

SKU: MX20-AS

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

更新日期：2022.02.09

Model no.		MX20-AS
Specifications	Table size (mm)	25*25
	Travel stroke (mm)	XY axis
	Transmission position	center/side
	Travel	±3.2
	The amount of movement for one revolution of the feed screw	0.5
	Straightness Accuracy (μm)	3㎛
	Loading(Kgf)	1
	Weight	0.08
	Material	Aluminum alloy
	Surface Treatment	Black Anodized
