MX120-AC-18

X axis manual stage
Single axis-X axis
Table size : 120 (mm)
Travel stroke : ±12.5(mm)
Feed position-Central feeding
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Feeding screw It is suitable for simple precise moving.
★ Material- Aluminum alloy

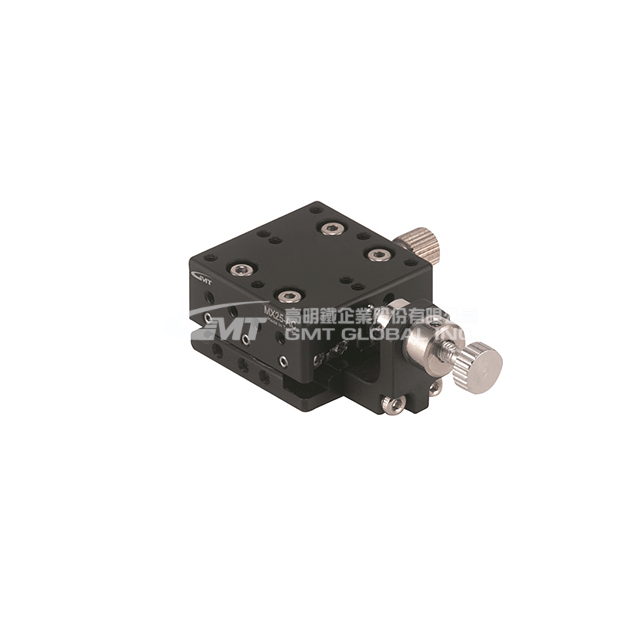

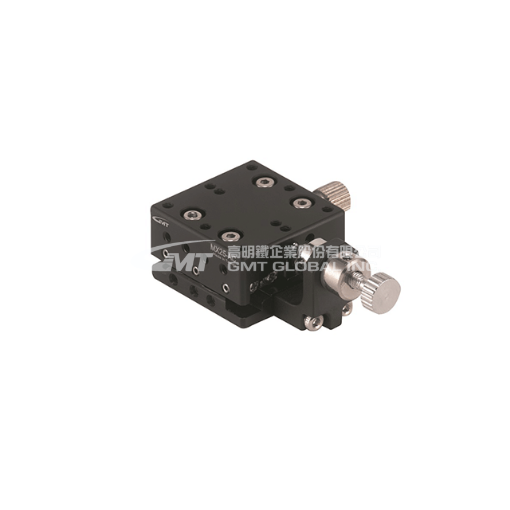

★This product pic. shows as MX25-AC-18.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2022.4.19

Model No.		MX120-AC-18
Specification	Table Size (mm)	120 X 120
	Axis	X-Axis
	Feed Position	Central
	Travel Stroke (mm)	± 12.5
	Movement Per Knob Rotation (mm)	0.5
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	20
	Weight (Kg)	1.6
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
