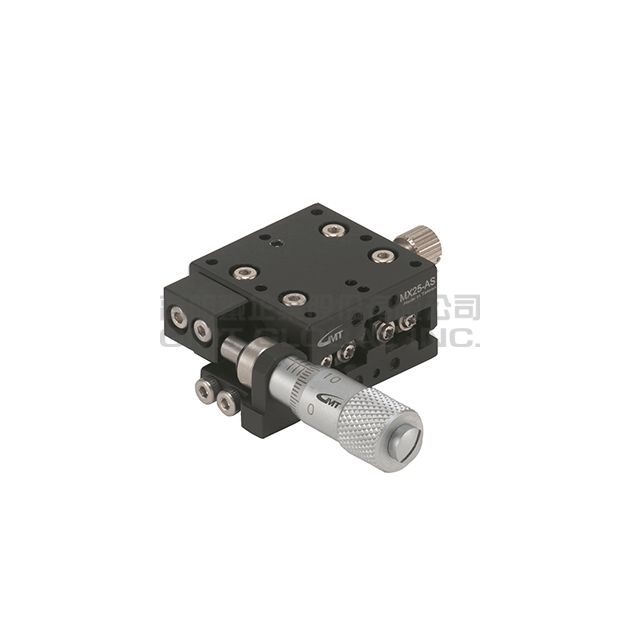

MX25-AS

X axis manual stage
Single axis-X axis
Table size : 20、25、30、40、50、60、70、80、100、120 (mm)
Travel stroke : ±3.2 ~±12.5 (mm)
Feed position-Slide feeding
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Aluminum alloy

SKU: MX25-AS -18

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Contact Us

更新日期：2022.02.09

型號		MX25-AS -18
規格說明	台面尺寸 (mm)	25*25
	傳動方向	XY軸
	傳動位置	中央/側邊
	行程	±3.2
	給進螺絲旋轉一圈的移動量	0.5
	移動精度真直度	3㎛
	荷重(Kgf)	1
	本體重量	0.04
	材質	鋁合金
	表面處理	黑色陽極

MX25-AS
