    MX50-AS


    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Aluminum alloy

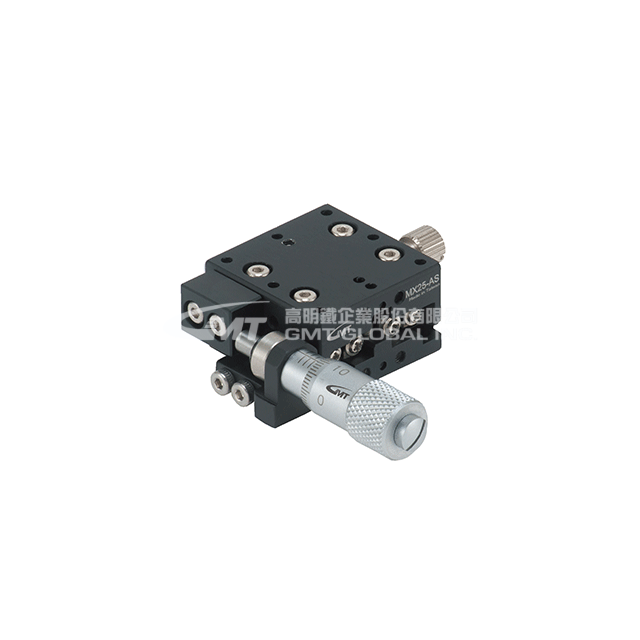

    This product pic. shows as MX25-AS.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.16

    Model No.

    MX50-AS

    Specification

    Table Size (mm)

    50 X 50

    Axis

    X-Axis

    Feed Position

    Side

    Travel Stroke (mm)

    ± 6.5

    Micrometer Min. Reading (μm)

    10

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    4

    Weight (Kg)

    0.22

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
