MXYZ80-F

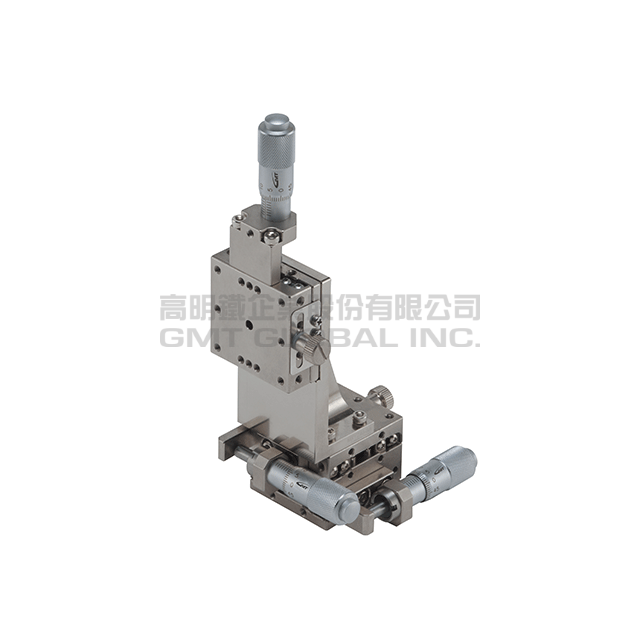

XYZ axis manual stage
Multiple axes-XYZ axis
Table size : 80 (mm)
★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Carbon Steel

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Contact Us

Update：2022.12.19

Model No.		MXYZ80-F
Specification	Table Size (mm)	80 X 80
	Allowable Loading (Kgf)	5
	Straightness Accuracy (μm)	5
	Pitching Accuracy	25"
	Yawing Accuracy	15"
	Axis	XYZ
	Weight (Kg)	2.96
	Material	Carbon Steel
	Surface Finish	Electroless Nickel Plating
