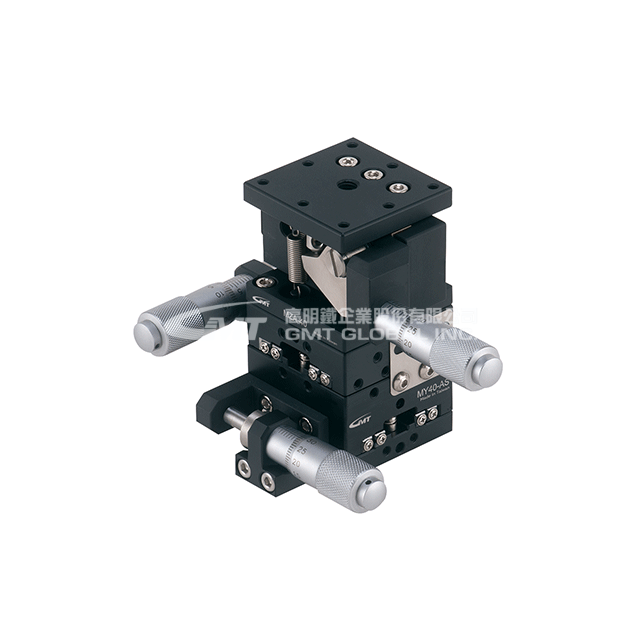

MXYZA40-A

Multiple axis manual stage
Multiple axis-XYZ axis
Table size : 40(mm)
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Aluminum alloy

SKU: MXYZA40-A

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2022.4.18

Model No.		MXYZA40-A
Specification	Multiple Axes - Base	MY40-AS
	Multiple Axes - Middle	N / A
	Multiple Axes - Top	MZA-40
	Table Size (mm)	40 X 40
	Travel Stroke - X Axis (mm)	± 6.5
	Travel Stroke - Y Axis (mm)	± 6.5
	Travel Stroke - Z Axis (mm)	± 3.0
	Travel Stroke - θ Axis (°)	N / A
	Allowable Loading (Kgf)	1
	Weight (Kg)	0.51

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
