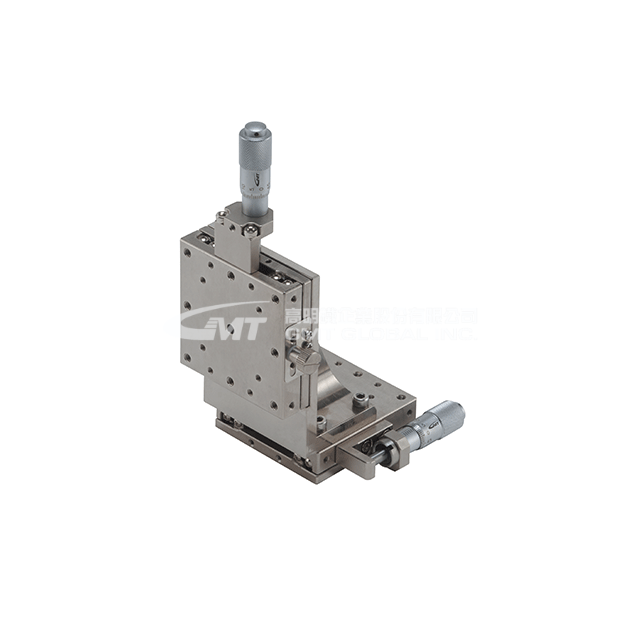

    MXZ50-S


    XZ axis manual stage
    Dual axes-XZ axis
    Table size: 50 (mm)
    ★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Stainless steel
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.21

    Model No.

    MXZ50-S

    Specification

    Table Size (mm)

    50 X 50

    Allowable Loading (Kgf)

    5

    Straightness Accuracy (μm)

    5

    Pitching Accuracy

    25"

    Yawing Accuracy

    15"

    Axis

    XZ

    Weight (Kg)

    0.76

    Material

    SUS 440C

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
