    MY100-SC-28


    XY axis manual stage
    Dual axes-XY axis
    Table size : 100 (mm)
    Travel stroke : ±12.5 (mm)
    Feed position-Central feeding
    ★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
    ★ Transmission Parts-Feeding screw. It is suitable for simple precise moving.
    ★ Material- Stainless steel

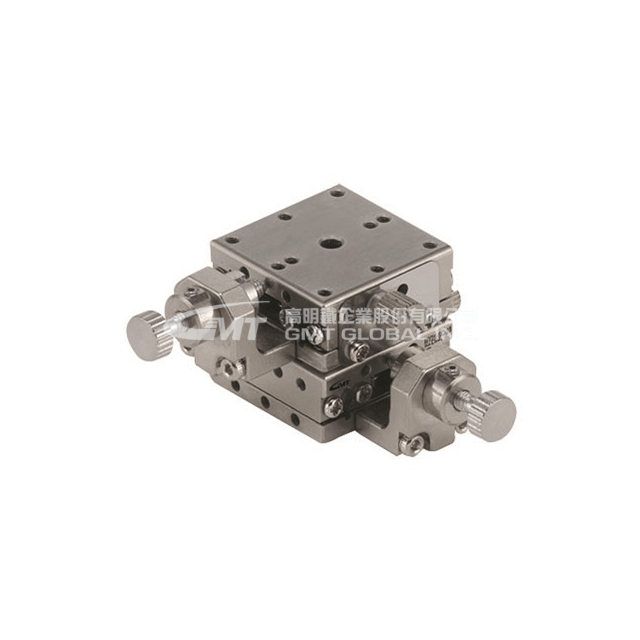

    This product pic. shows as MY25-SC-28.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.25

    Model No.

    MY80-SC-28

    Specification

    Table Size (mm)

    100 X 100

    Axis

    XY-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 12.5

    Movement Per Knob Rotation (mm)

    0.5

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    33.6

    Weight (Kg)

    2.66

    Material

    SUS 440C

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
