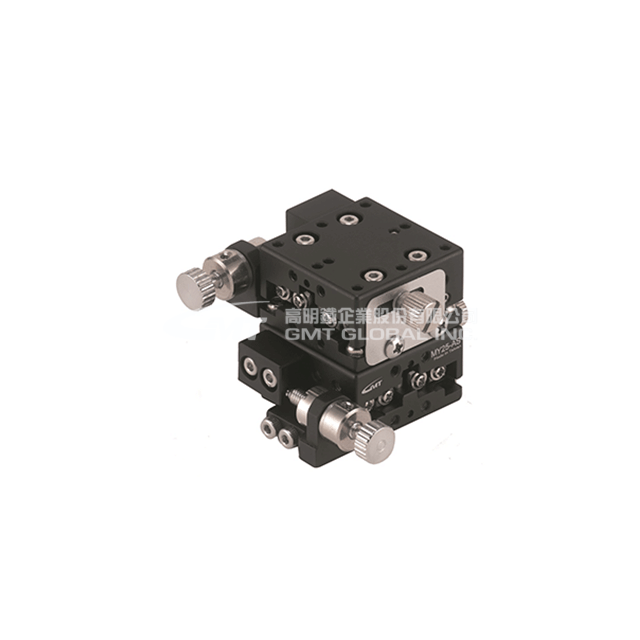

MY25-AS-18

XY axis manual stage
Dual axis-XY axis
Table size : 25 (mm)
Travel stroke : ±3.2 (mm)
Feed position-Central feeding
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Feeding screw It is suitable for simple precise moving.
★ Material- Aluminum alloy

SKU: MY25-AS-18

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.19

Model No.		MY25-AC-18
Specification	Table Size (mm)	25 X 25
	Axis	XY-Axis
	Feed Position	Side
	Travel Stroke (mm)	± 3.2
	Movement Per Knob Rotation (mm)	0.5
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	1
	Weight (Kg)	0.08
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MY25-AS-18
